Piston Ring, Engine

Specifications

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Pistons

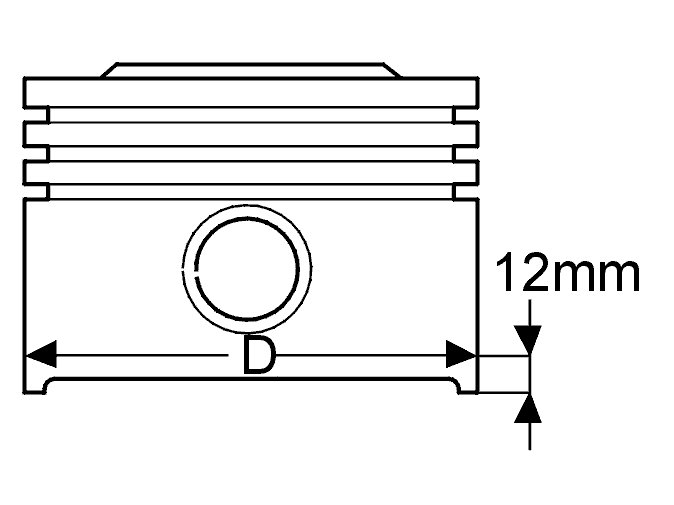

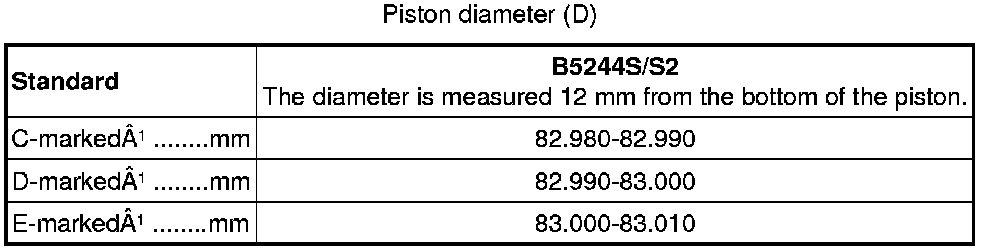

Classification is marked on the top of the piston.









Piston rings




Upper compression ring.0.030-0.070 mm
Lower compression ring.0.030-0.070 mm
Oil control ring assembly.0.038-0.142 mm
Upper.1.200 -0.010/-0.030 mm
Lower.1.500 -0.010/-0.030 mm
Spring.1.510 ± 0.020 mm
Rail.0.460 ± 0.011 mm

Piston pin

Diameter.21.000 +0/-0.004 mm
Length.57.0 +0/0.2 mm
