Side Panel, Replacing

Side Panel, Replacing

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Removing The Side Panel

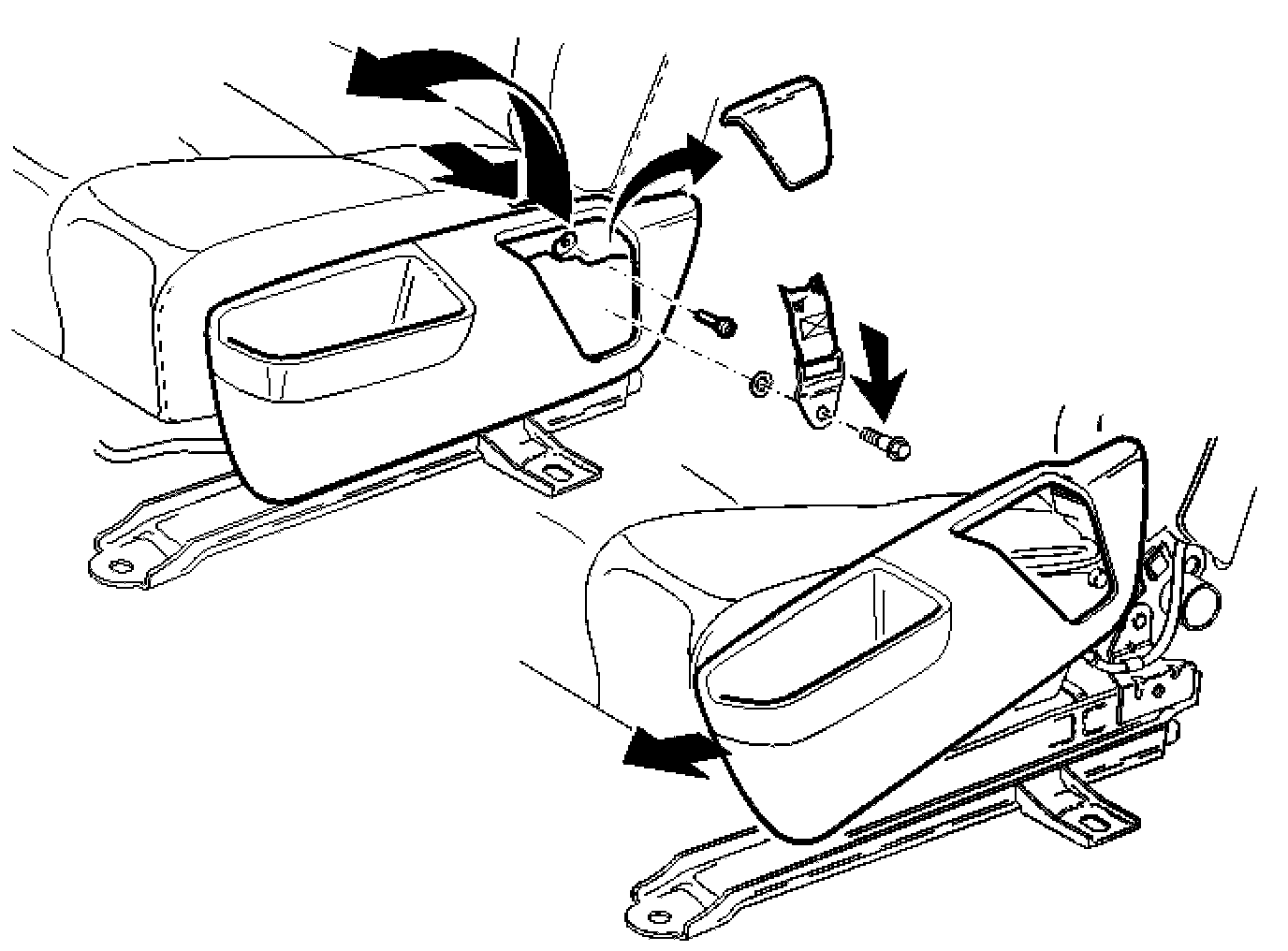

Seat Without Height Adjustment







Remove:
- the cover on the side by pressing in the locking tab at the upper edge. Pull the cover upwards and out
- the mounting for the seat belt
- the mounting screw
- the panel by lifting the rear edge and then pushing forwards.

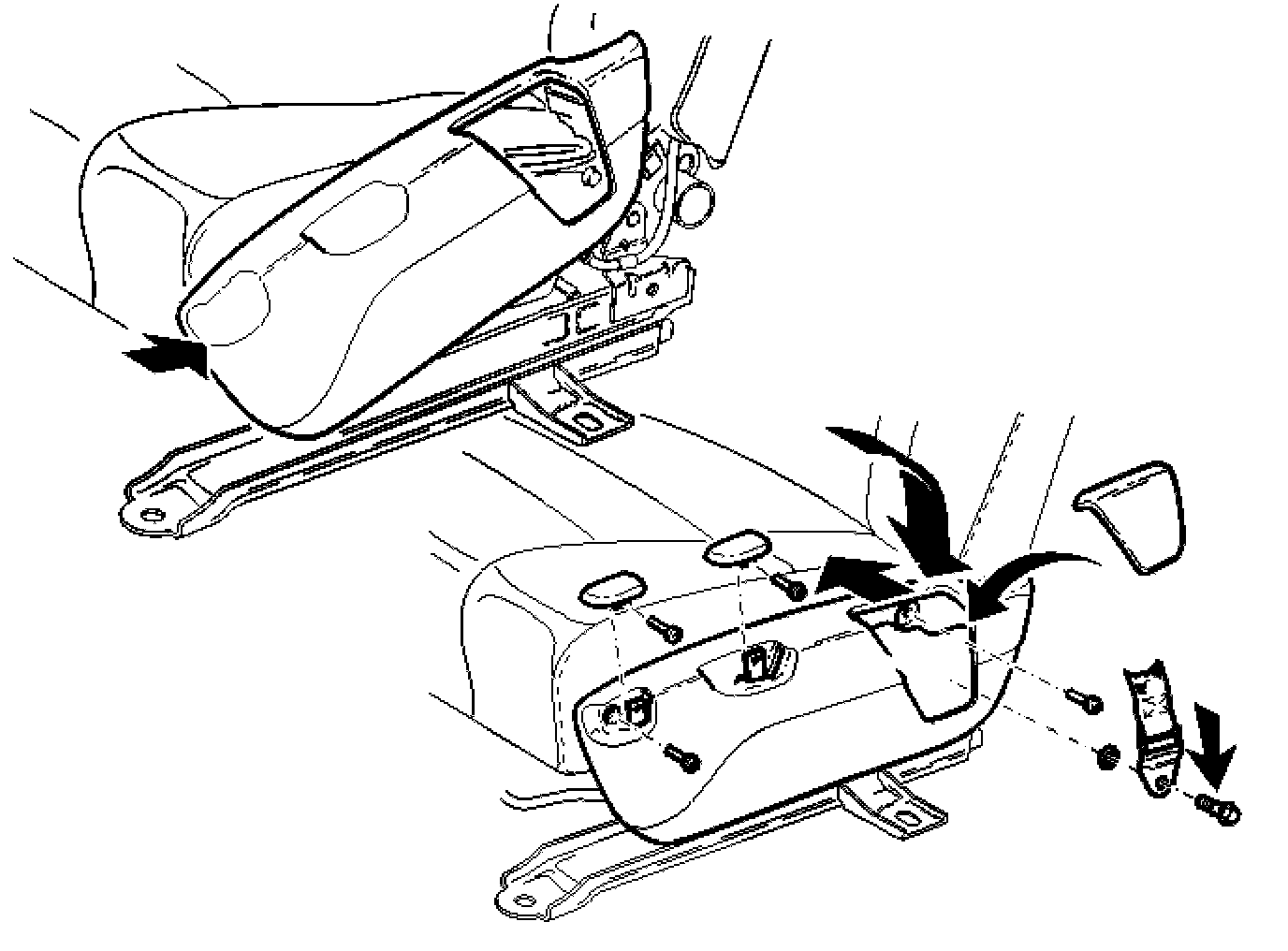

Seat With Height Adjustment







Remove:
- the height adjustment handles by lifting the handles and removing the screws. Pull the handles up
- the mounting screw at the front edge
- the cover on the side by pressing in the locking tab at the upper edge. Pull the cover upwards and out
- the mounting for the seat belt
- the mounting screw
- the panel by lifting the rear edge and then pushing it forwards.

Installing The Side Panel

Seat Without Height Adjustment







Hook on the panel at the front edge and twist it into place.

Install:
- the mounting screw
- the seat belt. Tighten to 48 Nm
- the cover.

Seat With Height Adjustment







Hook on the panel at the front edge and twist it into place.

Install:
- the mounting screw
- the seat belt. Tighten to 48 Nm
- the cover
- the mounting screw at the front edge
- the height adjustment handles by lifting the arms and install the handles and the screws.
