Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2002
>>
V40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
System Diagram

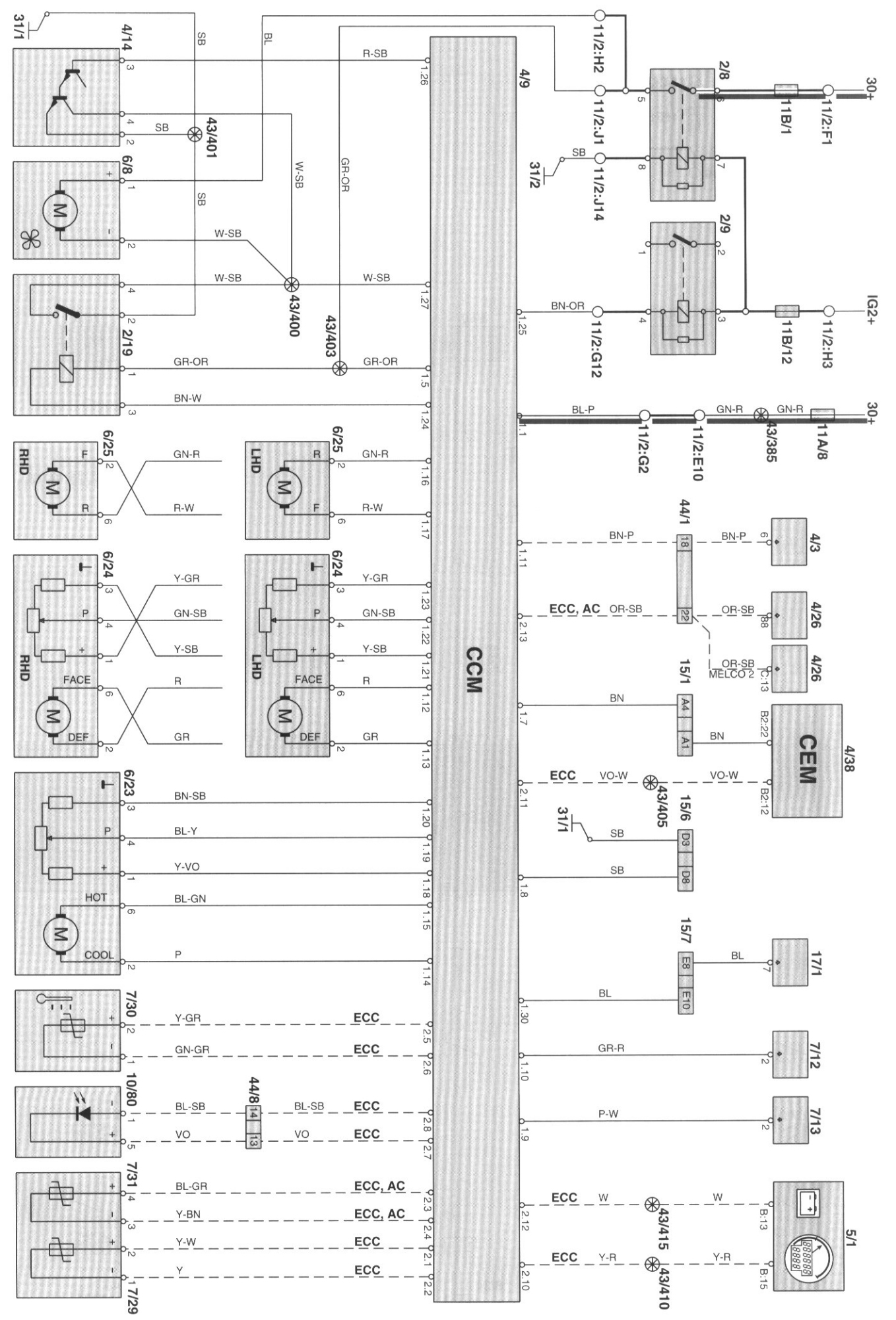

Climate Control System
Climate Control System:
Diagram Legend
Diagram Legend
