High Beam, Low Beam and Auxiliary Light Wiring BI-Xenon
High Beam, Low Beam and Auxiliary Light Wiring BI-Xenon

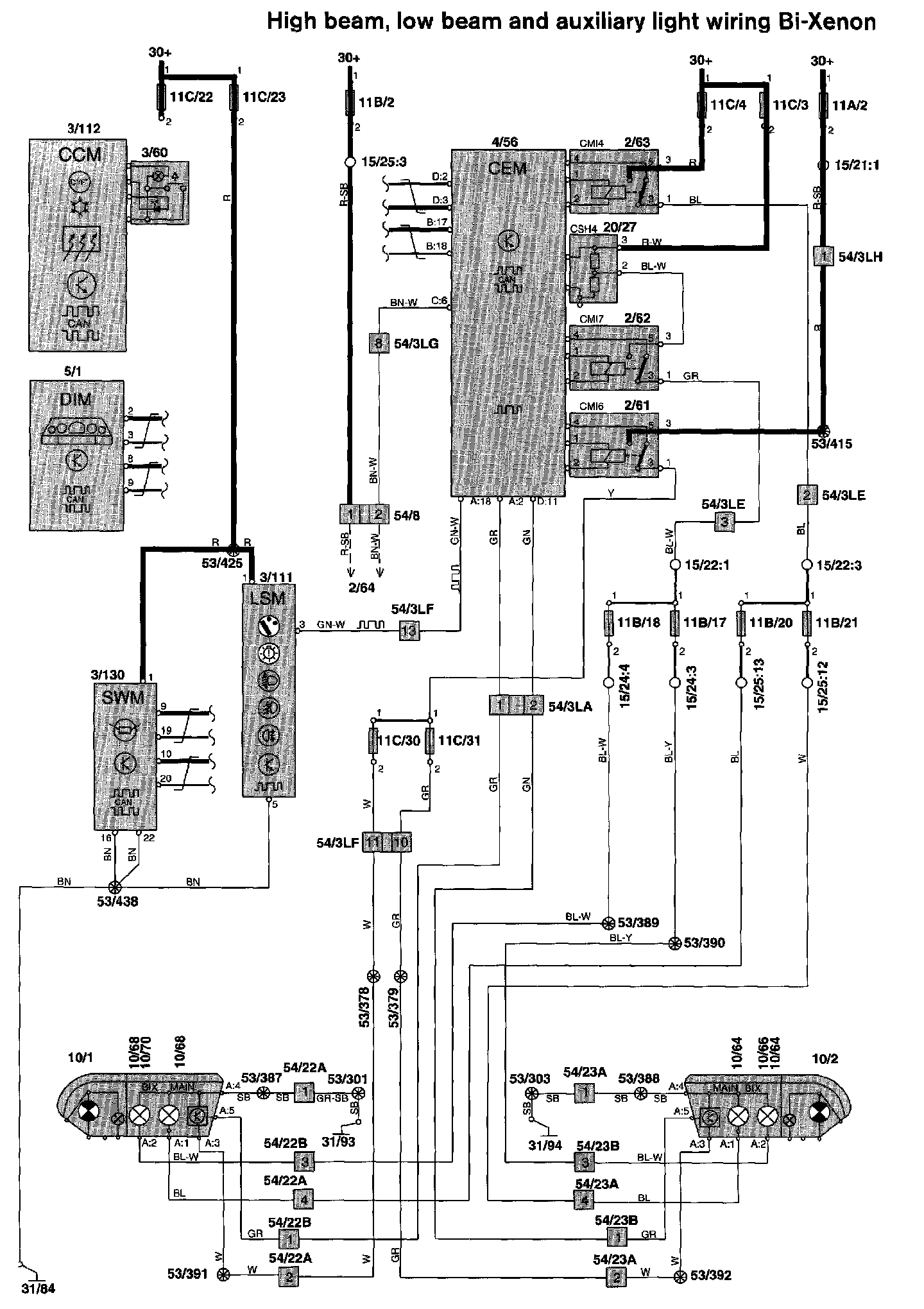

High Beam, Low Beam And Auxiliary Light Wiring Bi-Xenon:
Diagram legend:
Diagram Legend
