Fuel Filter: Locations

Fuel Filter Location

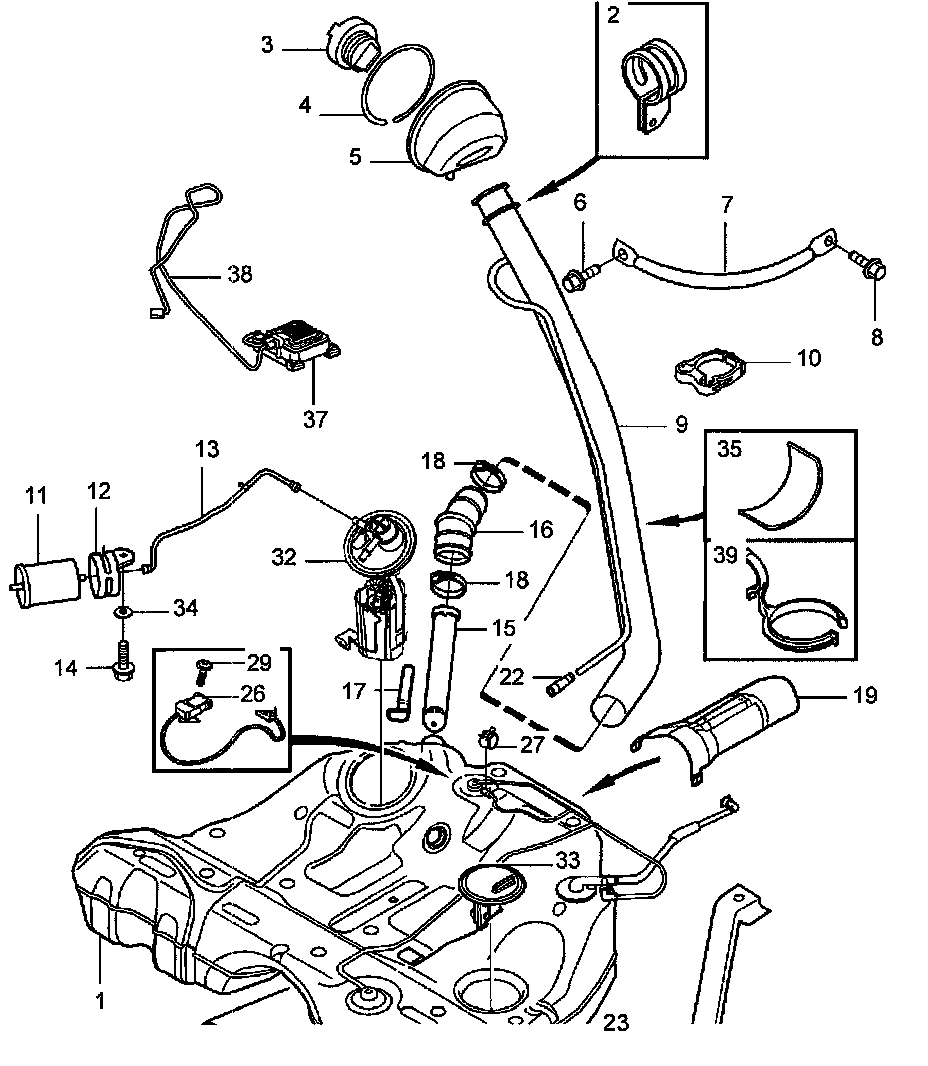

The fuel filter is located near the rear driver side wheel, near the fuel tank.

1. Fuel tank
2. Bracket
3. Fuel filler cap
8. Fuel filler cap
4. Retainer
5. Filler housing
6. Sems screw
7. Cable
8. Flange screw
9. Filler pipe, unleaded gasoline
Filler pipe, leaded gas
10. Clip
11. Fuel Filter
12. Bracket
13. Delivery pipe
14. Flange screw
15. Filler pipe
16. Hose
17. Sleeve
18. Hose clamp
19. Protecting plate
20. Heat shield
21. Clip
22. Hose
23. Tensioning band
25. Clip
28. Flange screw
30. Washer
31. Hexagon screw
32. Pump unit, complete
33. Ejector, complete
34. Washer
35. Tape
36. Blind rivet
37. Control unit
38. Adapter
39. Clip
