Home >> Volvo >> 2003 >> C70 L5-2.3L Turbo VIN 62 B5234T9 >> Repair and Diagnosis >> Diagrams >> Grounds >> 31/7

31/7

Ground Connection 31/7, CONV:

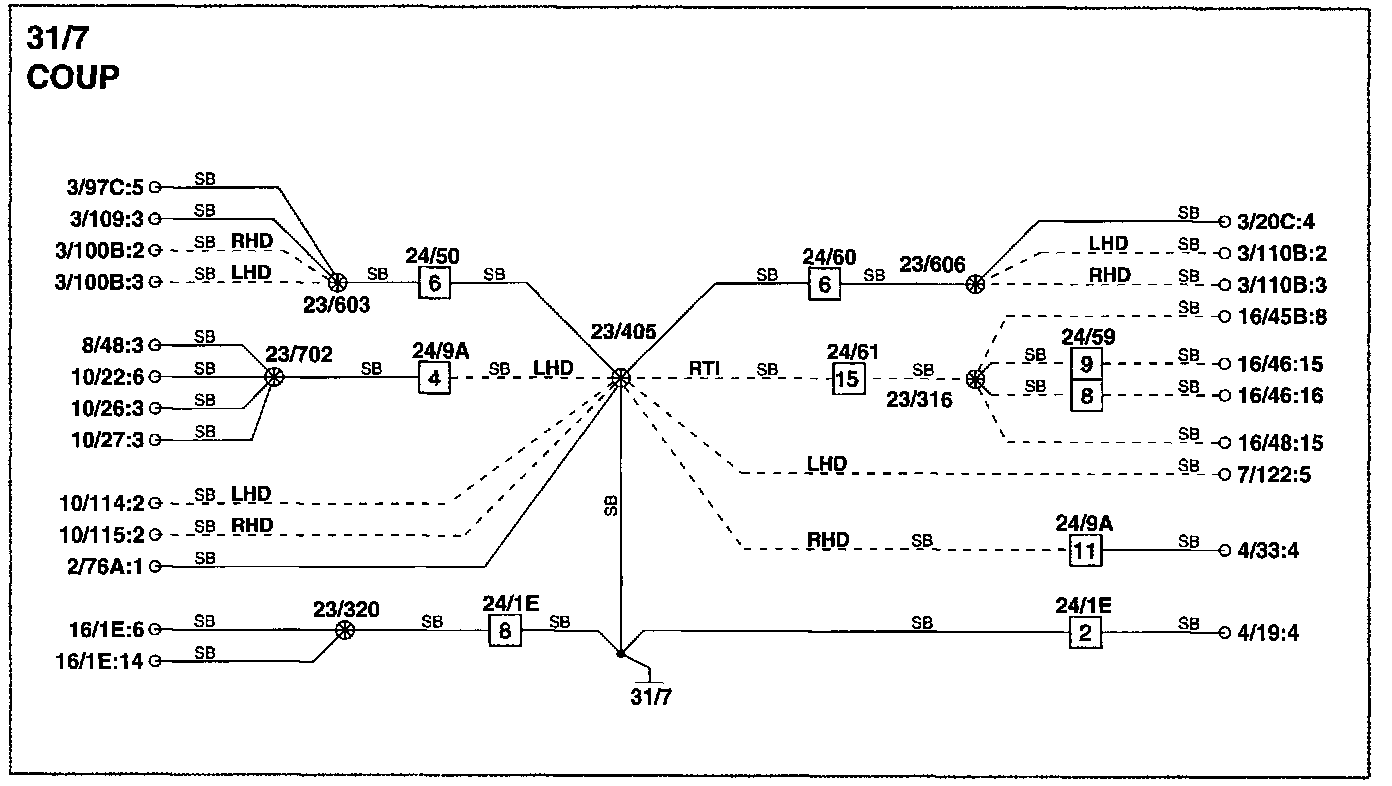

Ground Connection 31/7, COUP:
