S40 L4-1.9L Turbo VIN 27 B4204T4
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
Beam Length Adjustment
Beam Length Adjustment

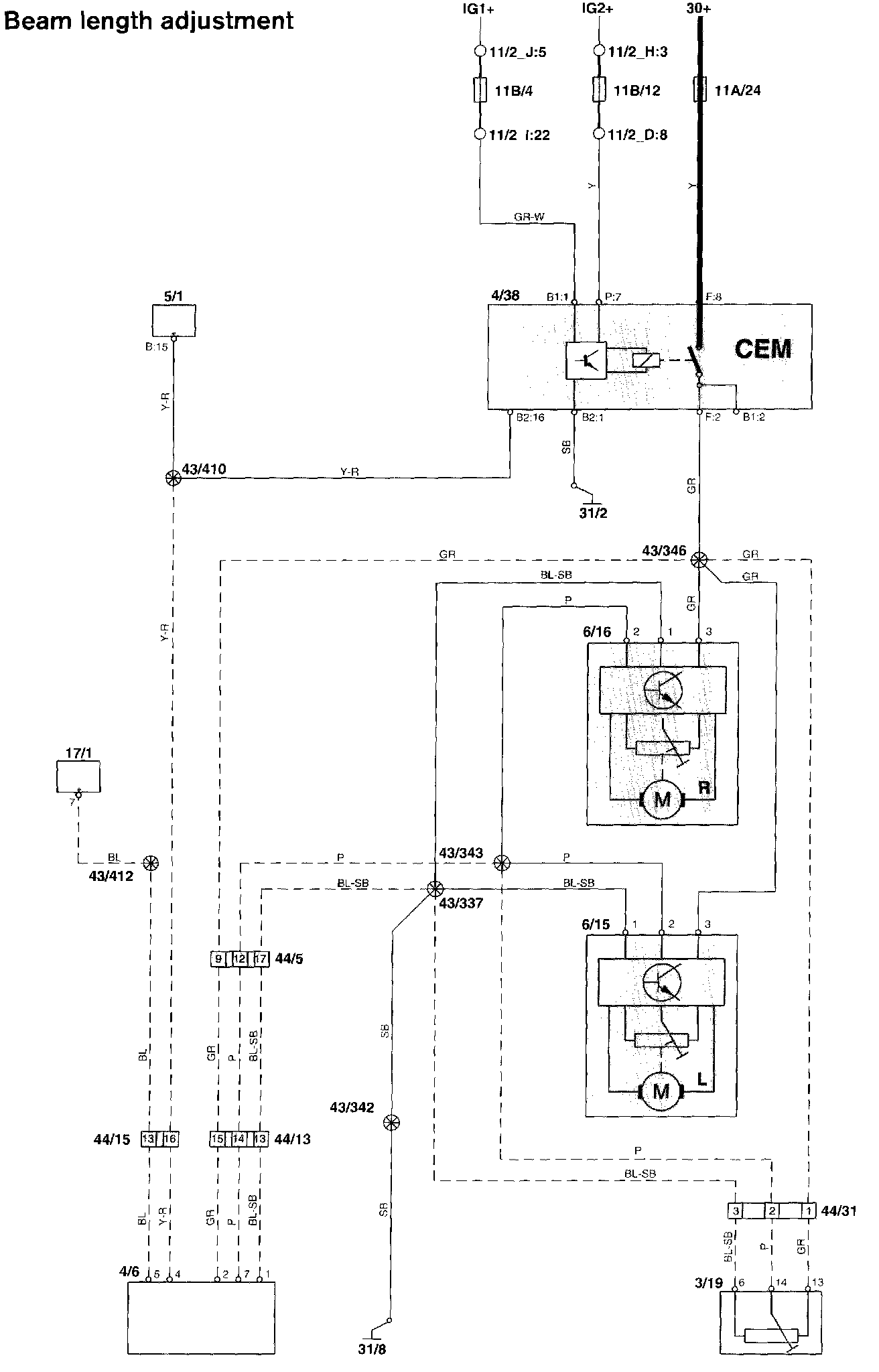

Beam Length Adjustment:
Diagram Legend:
Diagram Legend
