Heating and Air Conditioning
>>
System Diagram
System Diagram

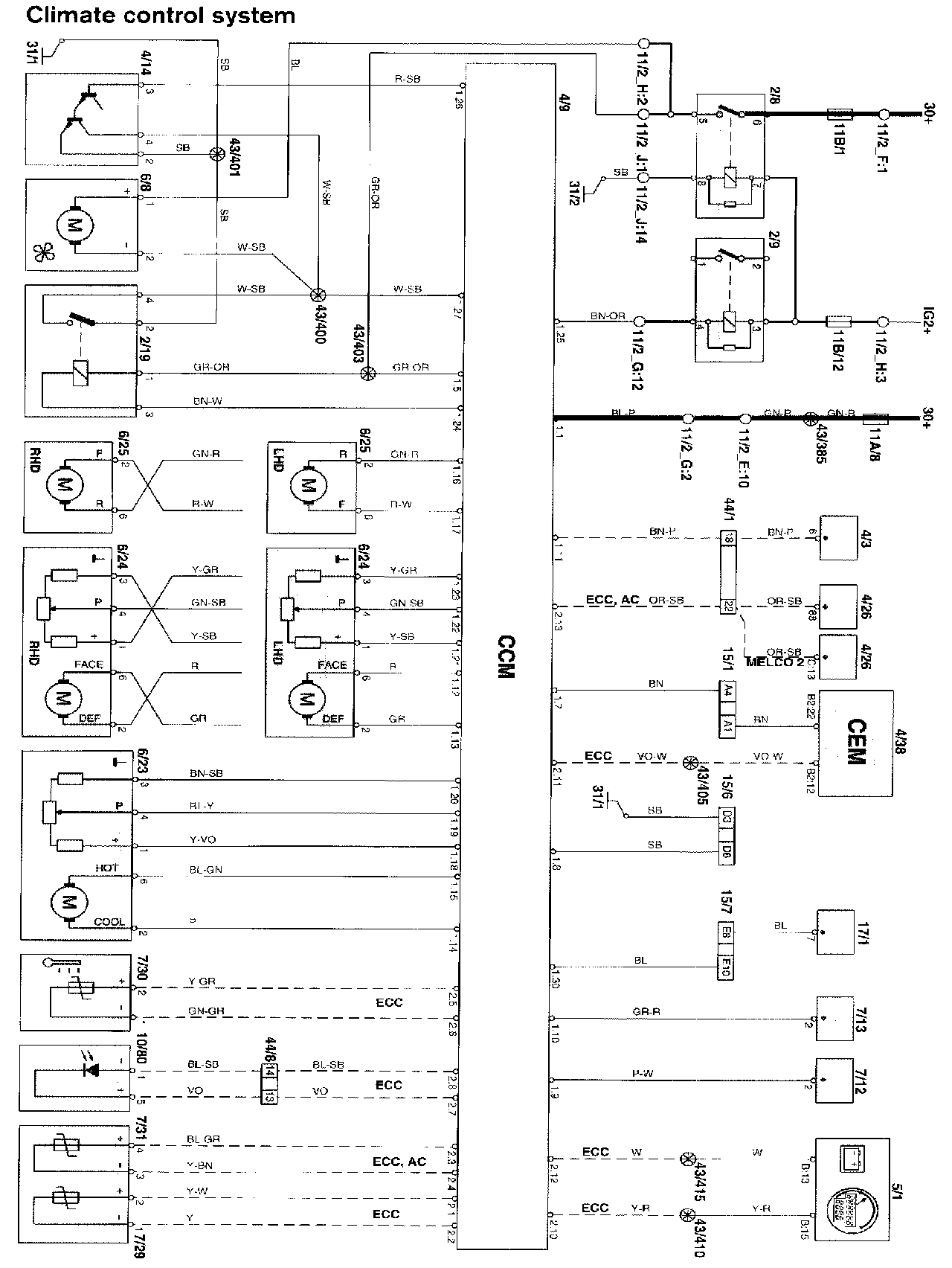

Climate Control System:
Diagram Legend:
Diagram Legend
