Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
System Diagram

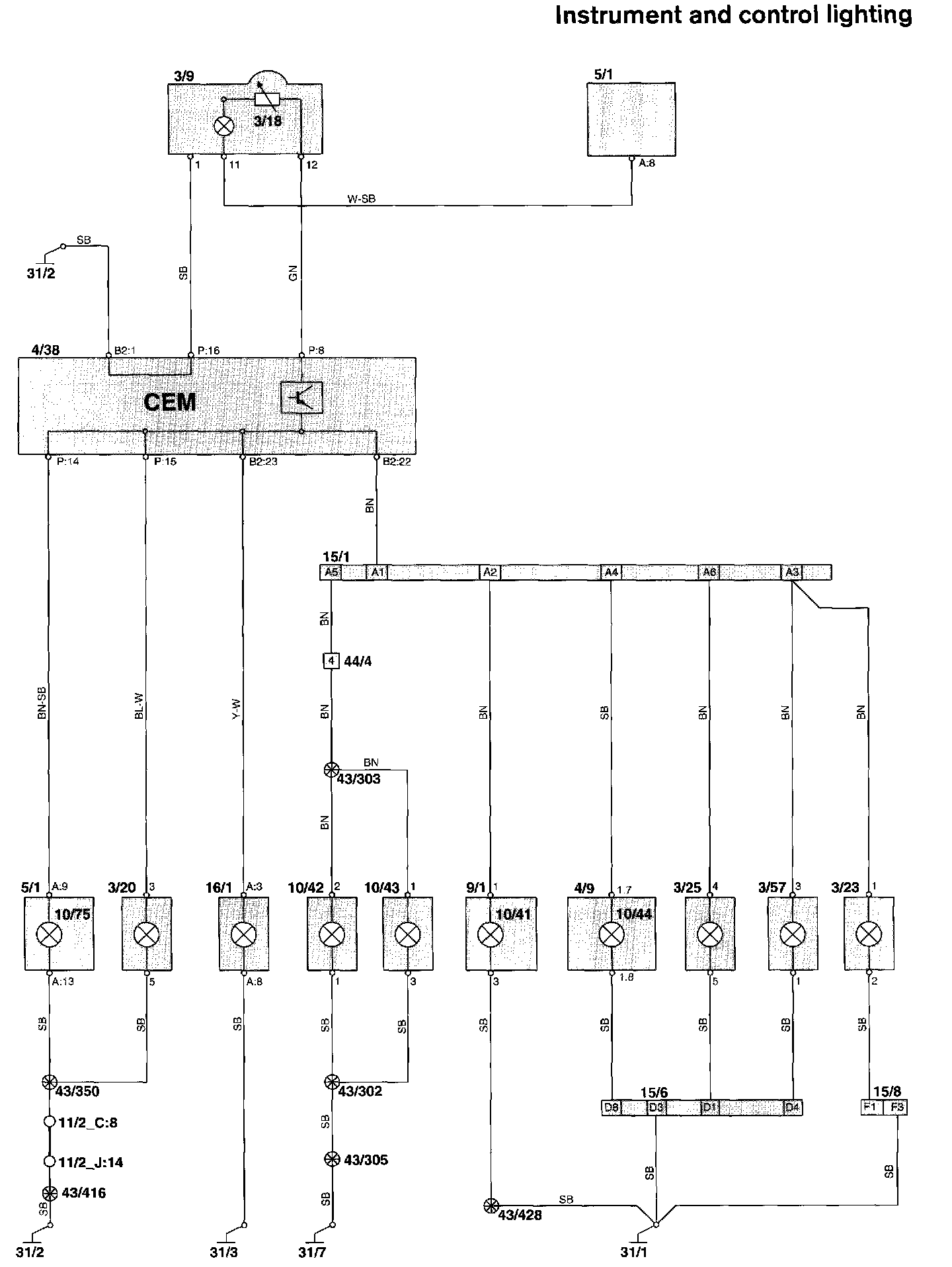

Instrument And Control Lighting:
Diagram Legend:
Diagram Legend
