Parking Lamp

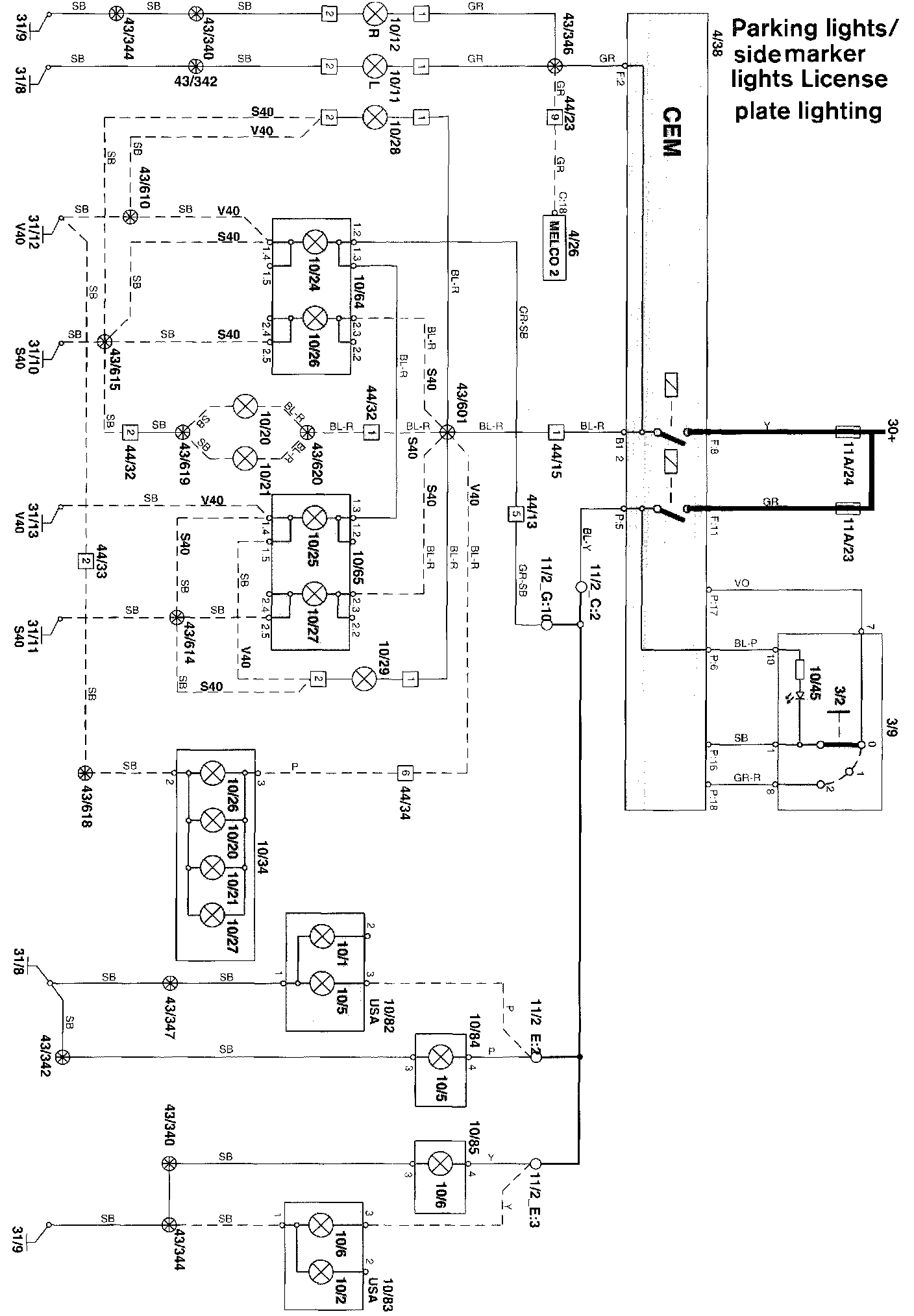

Parking Lights/side Marker Lights And License Plate Lighting:






Diagram Legend: Diagram Legend
