Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

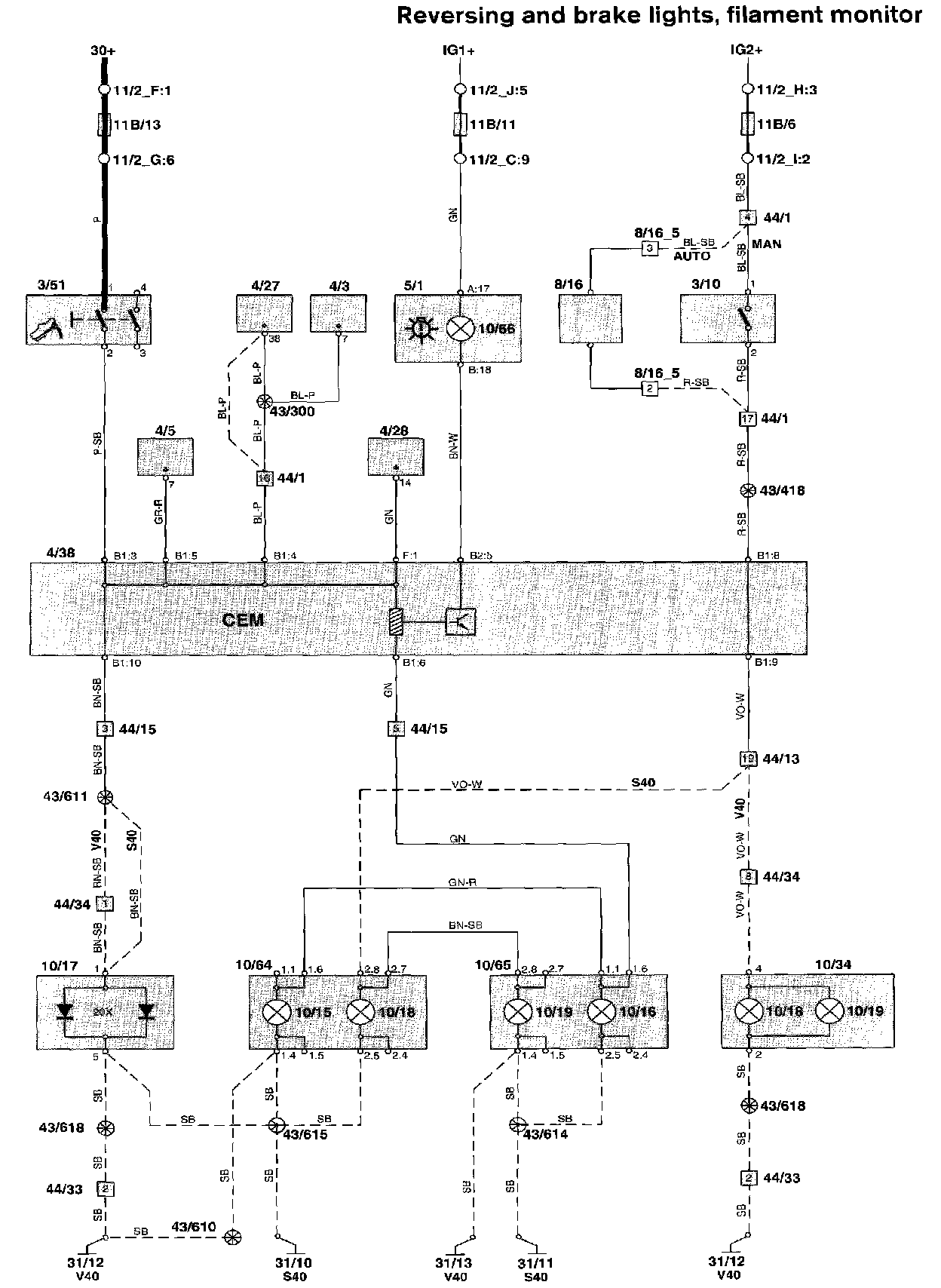

Reversing And Brake Lights, Filament Monitor:
Diagram Legend:
Diagram Legend
