Electrical Diagrams

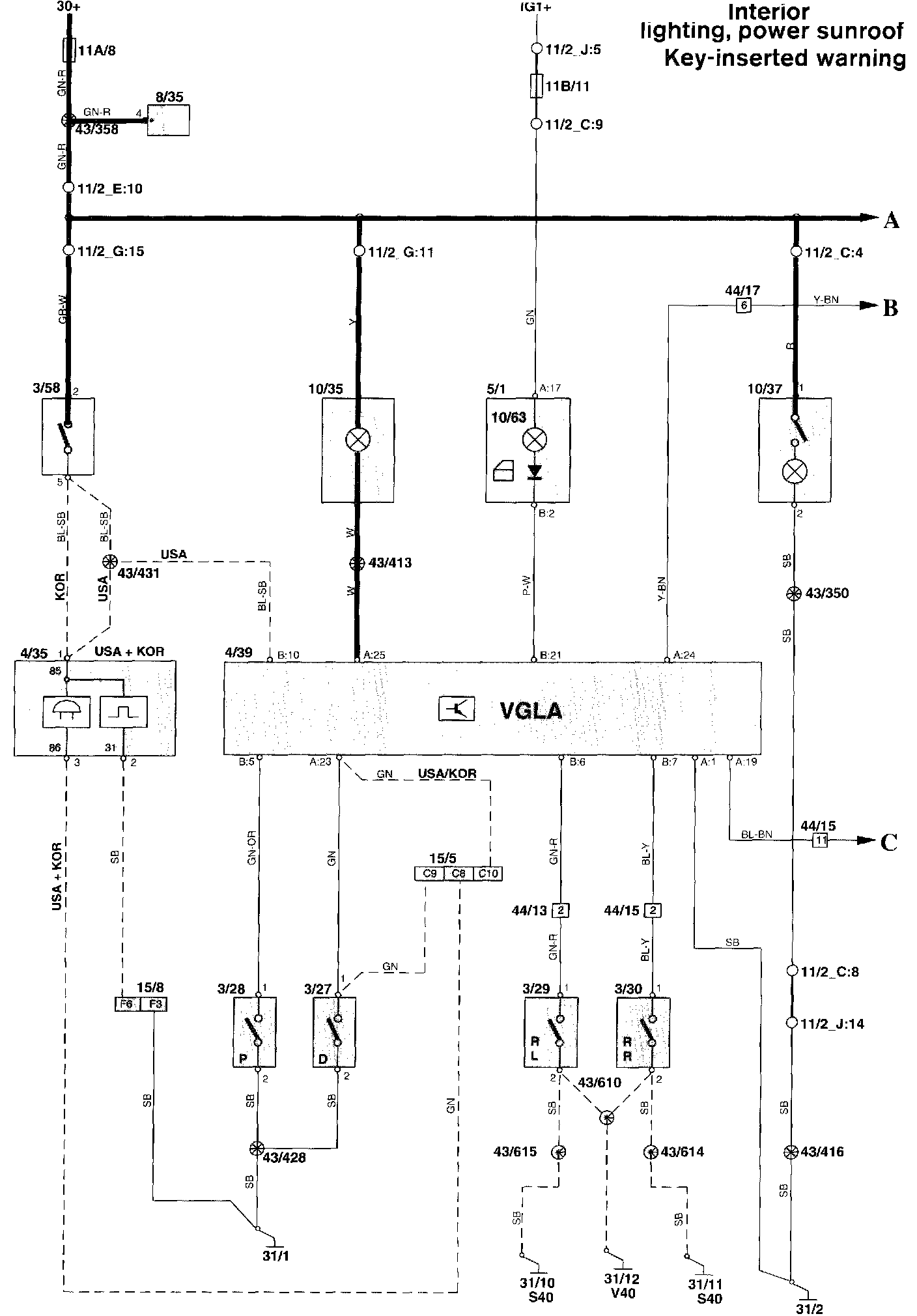

Interior Lighting, Power Sunroof, Key-inserted Warning - Part 1:

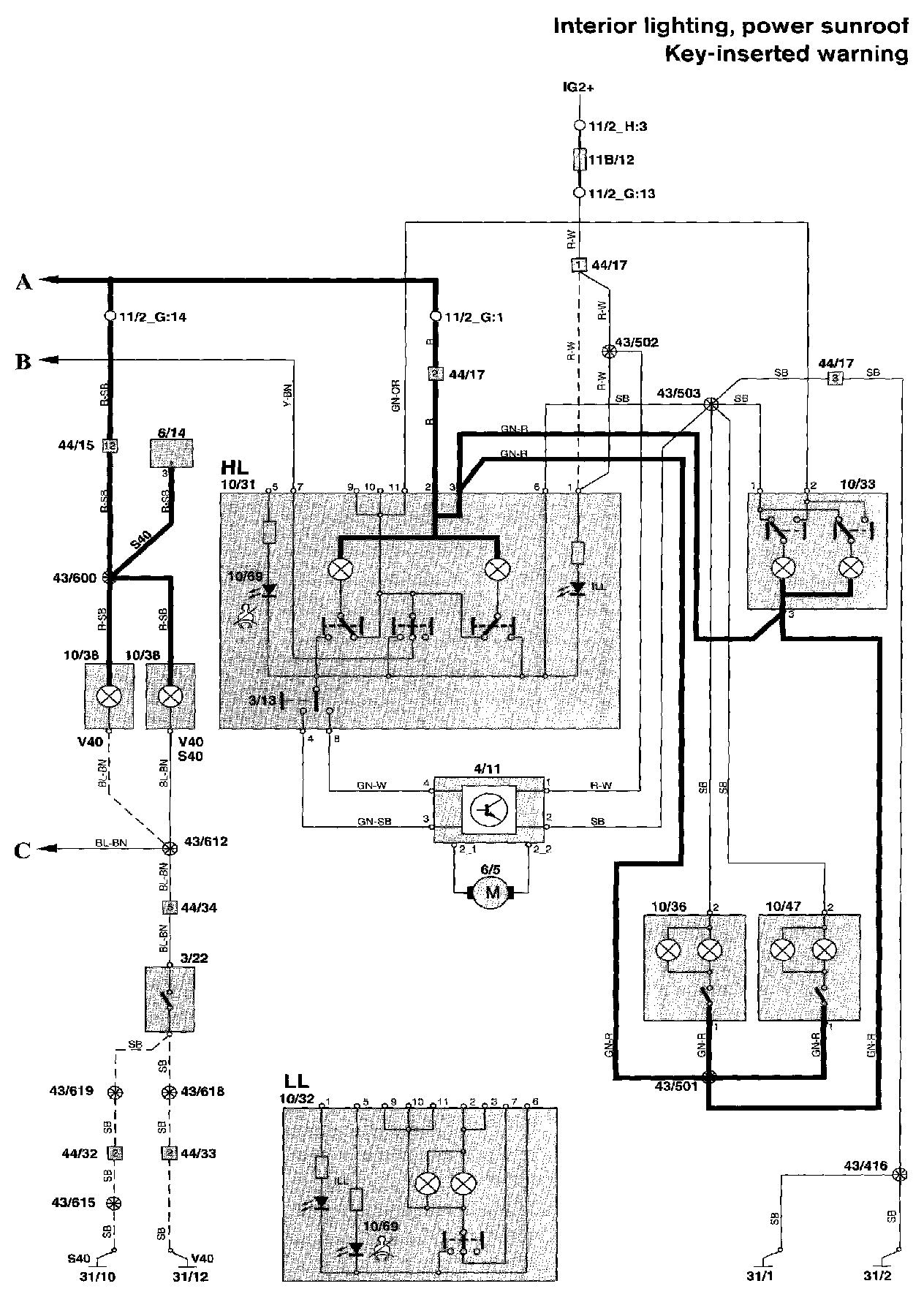

Interior Lighting, Power Sunroof, Key-inserted Warning - Part 2:






Diagram Legend: Diagram Legend
