Trunk Lamp: Service and Repair

Cargo compartment lighting replacement

Removal
Disconnect the battery lead according to Note when disconnecting and connecting the battery lead Battery Disconnecting.





Remove:

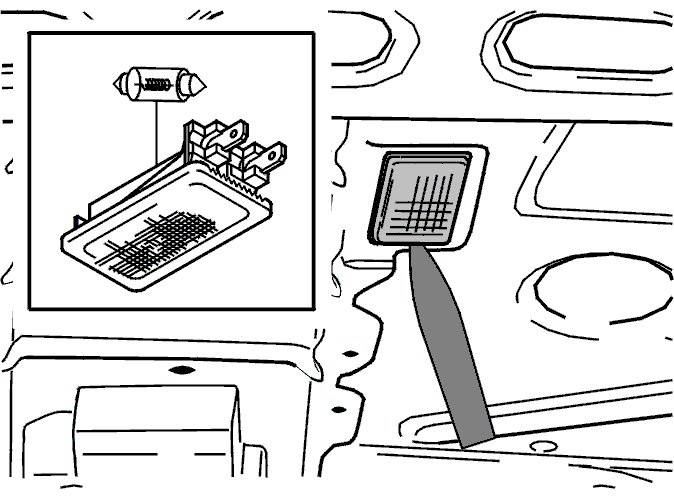

- the lens by inserting a weatherstrip tool at the edge and twisting
- the bulb.

Installation

Reinstall:
- the lens and bulb in reverse order
- the battery lead according to Note when disconnecting and connecting the battery lead Battery Disconnecting.

Caution! Always connect the battery lead according to Note when disconnecting and connecting the battery lead Battery Disconnecting.
