Fuel Pipes From Tank to Engine. 4CYL Exc B4184SM. Turbo (USA)


Fuel Pipes From Tank to Engine. 4CYL Exc B41 84SM. Turbo (USA)

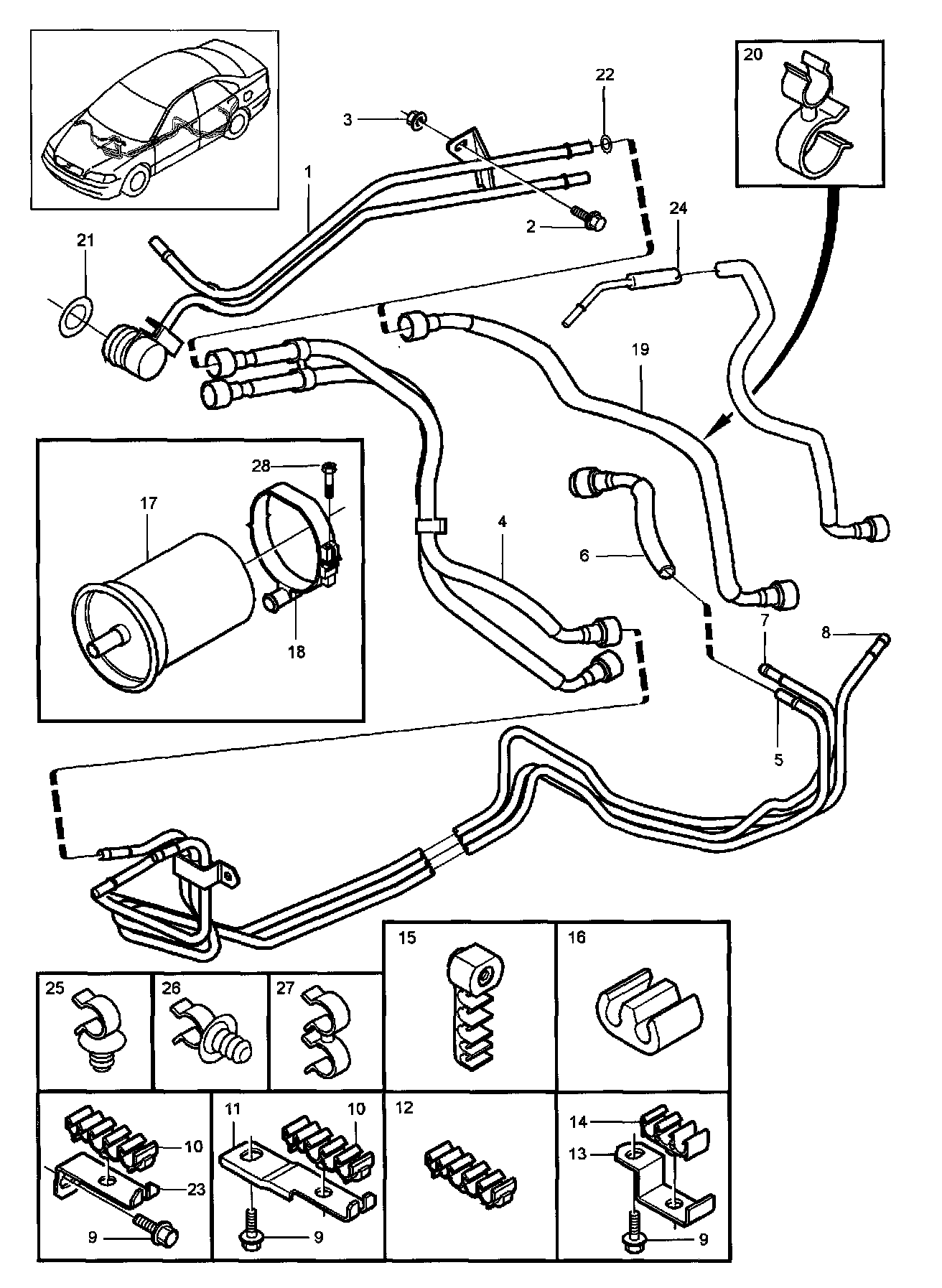

Fuel Pressure Pipes With Fittings. 2000- 4CYL Turbo. (USA) Illustration:

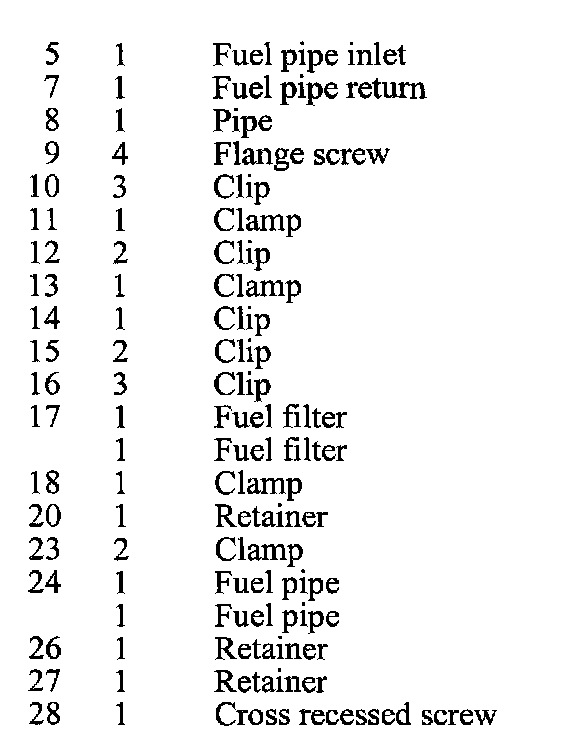

Fuel Pressure Pipes With Fittings. 2000- 4CYL Turbo. (USA) Legend:
