S40 L4-1.9L Turbo VIN 27 B4204T4
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

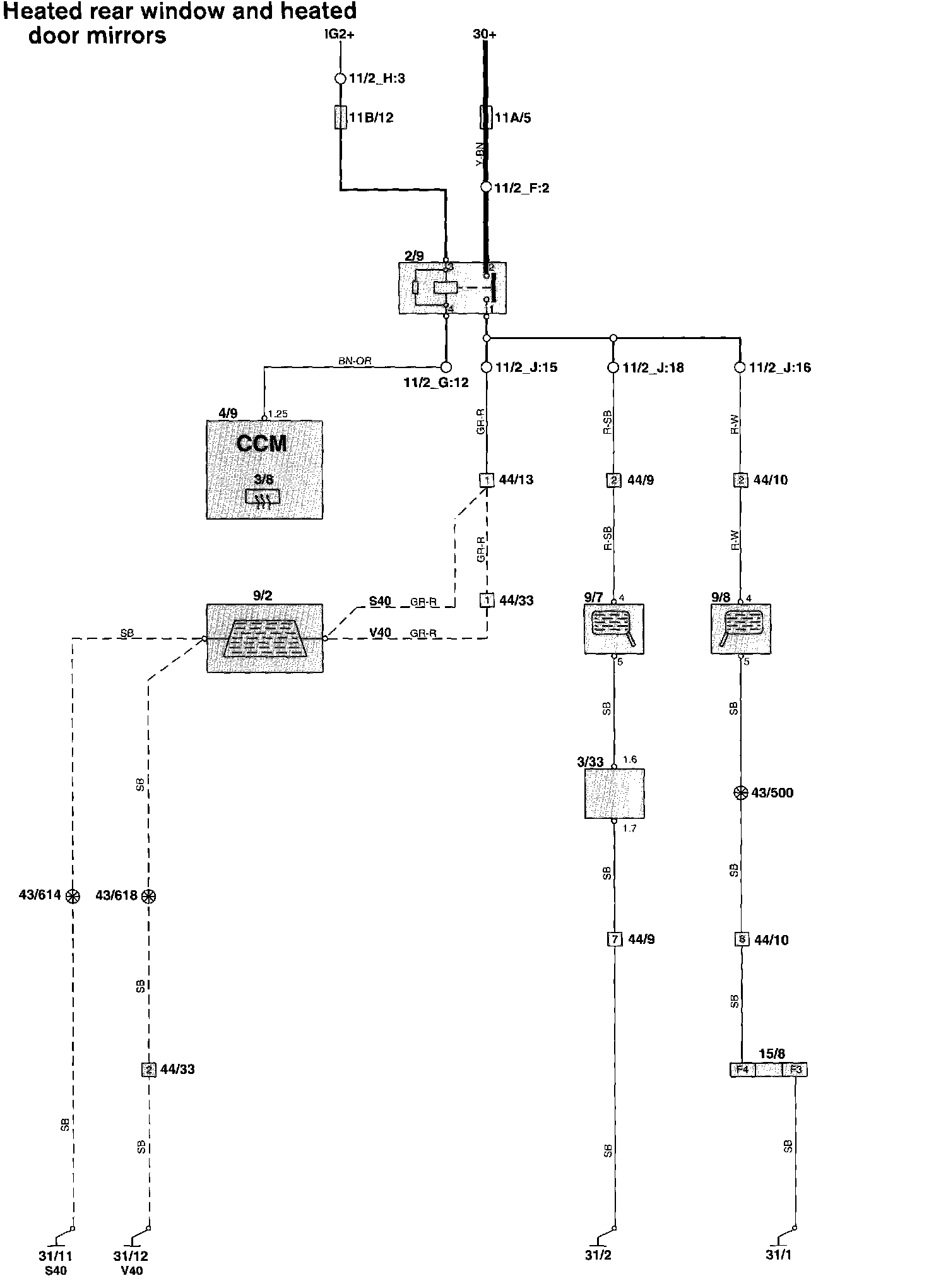

Heated Rear Window And Heated Door Mirrors:
Diagram Legend:
Diagram Legend
