Home >> Volvo >> 2003 >> S60 2.4T L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/20

54/20

Connectors 54/20 - Part 1:

Connectors 54/20 - Part 2:

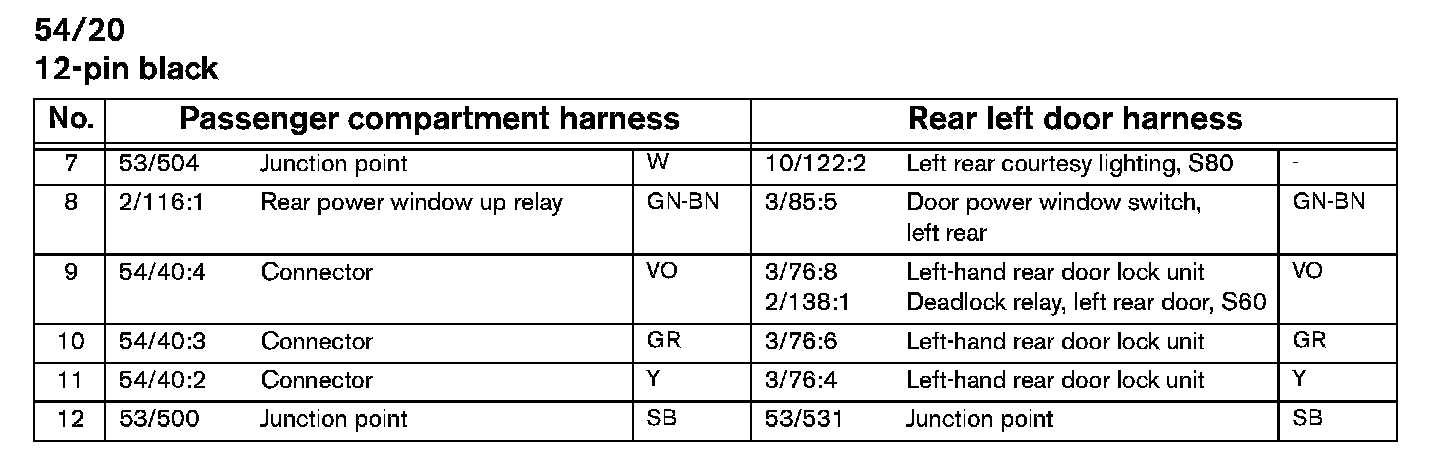

54/20 Connector:
