Home >> Volvo >> 2003 >> S60 2.4T L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Grounds >> 31/84

31/84

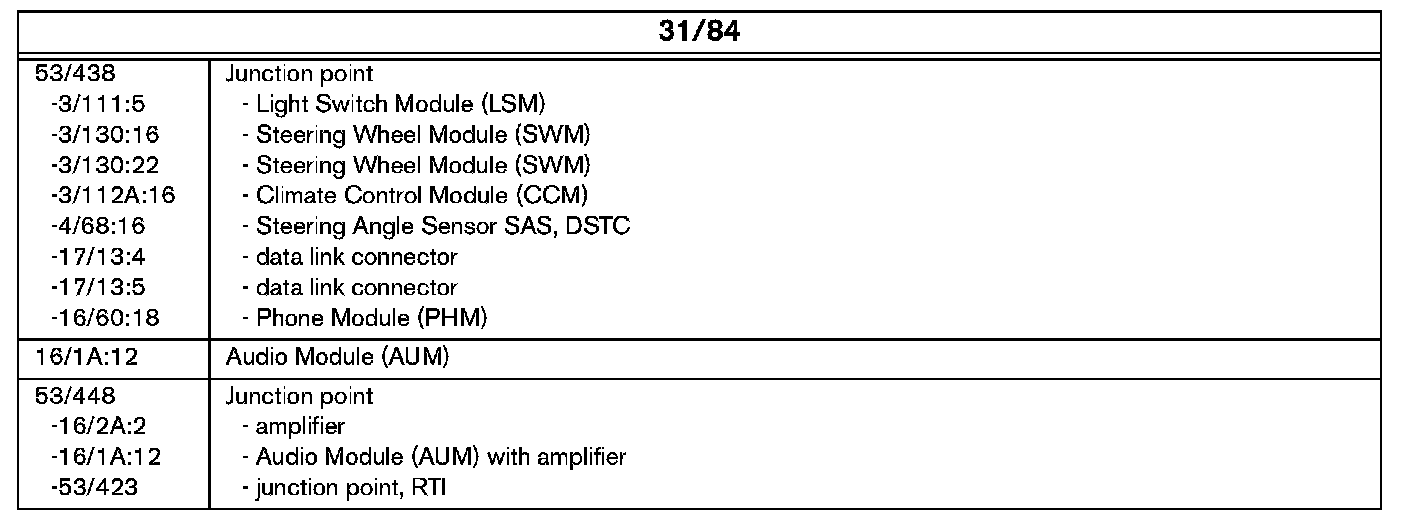

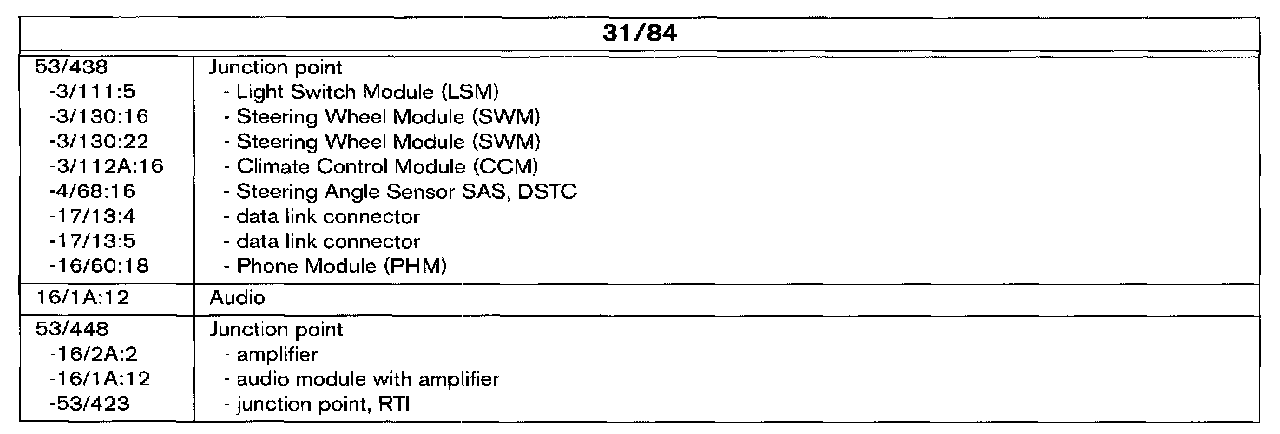

Ground Connection 31/84:

31/84 Ground Connection:

31/84:
