Home >> Volvo >> 2003 >> S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 54/50

54/50

Connectors 54/50:

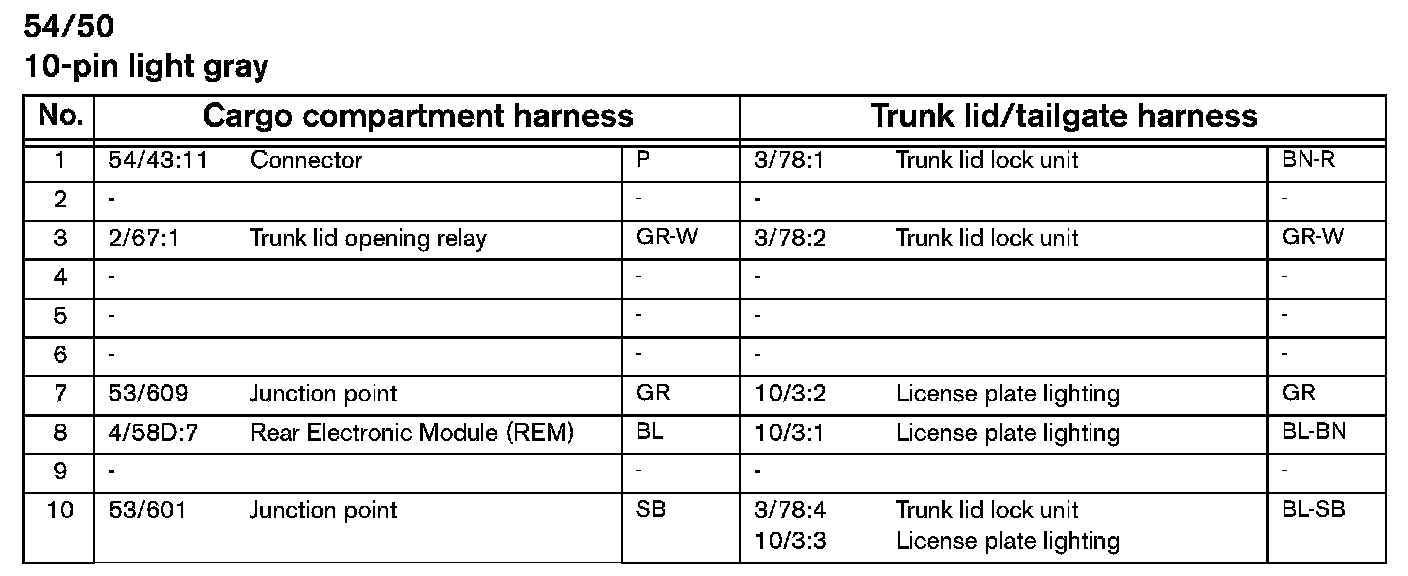

54/50 Connector:
