S60 2.5T AWD L5-2.5L Turbo VIN 59 B5254T2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
54/60
54/60

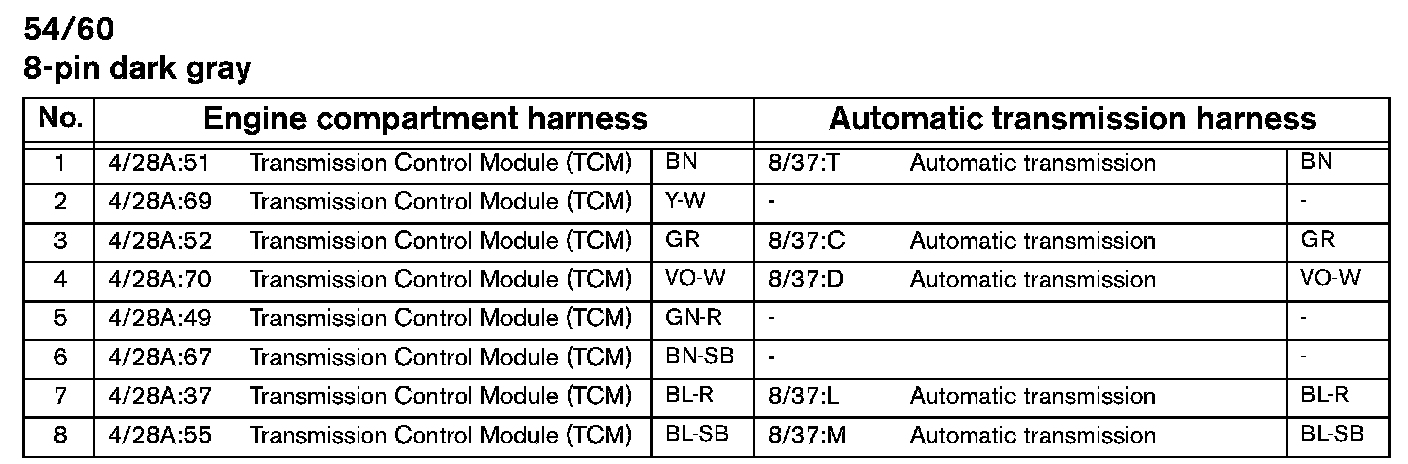

Connectors 54/60:
54/60 Connector:
