Hazard Warning Lamps
>>
Indicators and Warning Lights
Indicators and Warning Lights

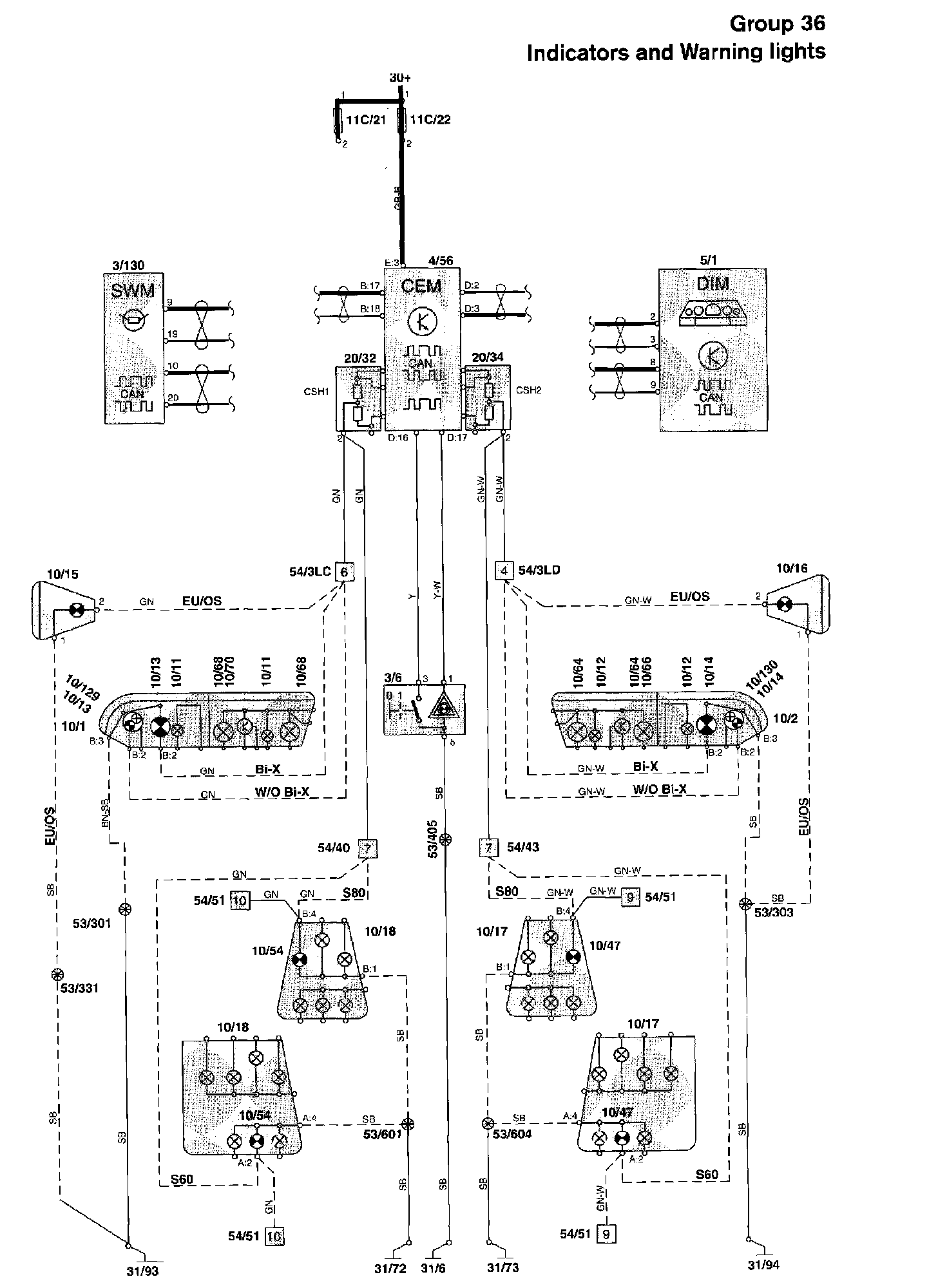

Indicators And Warning Lights:
Diagram Legend,
Diagram Legend
