Electronic Immobilizer
Electronic Immobilizer

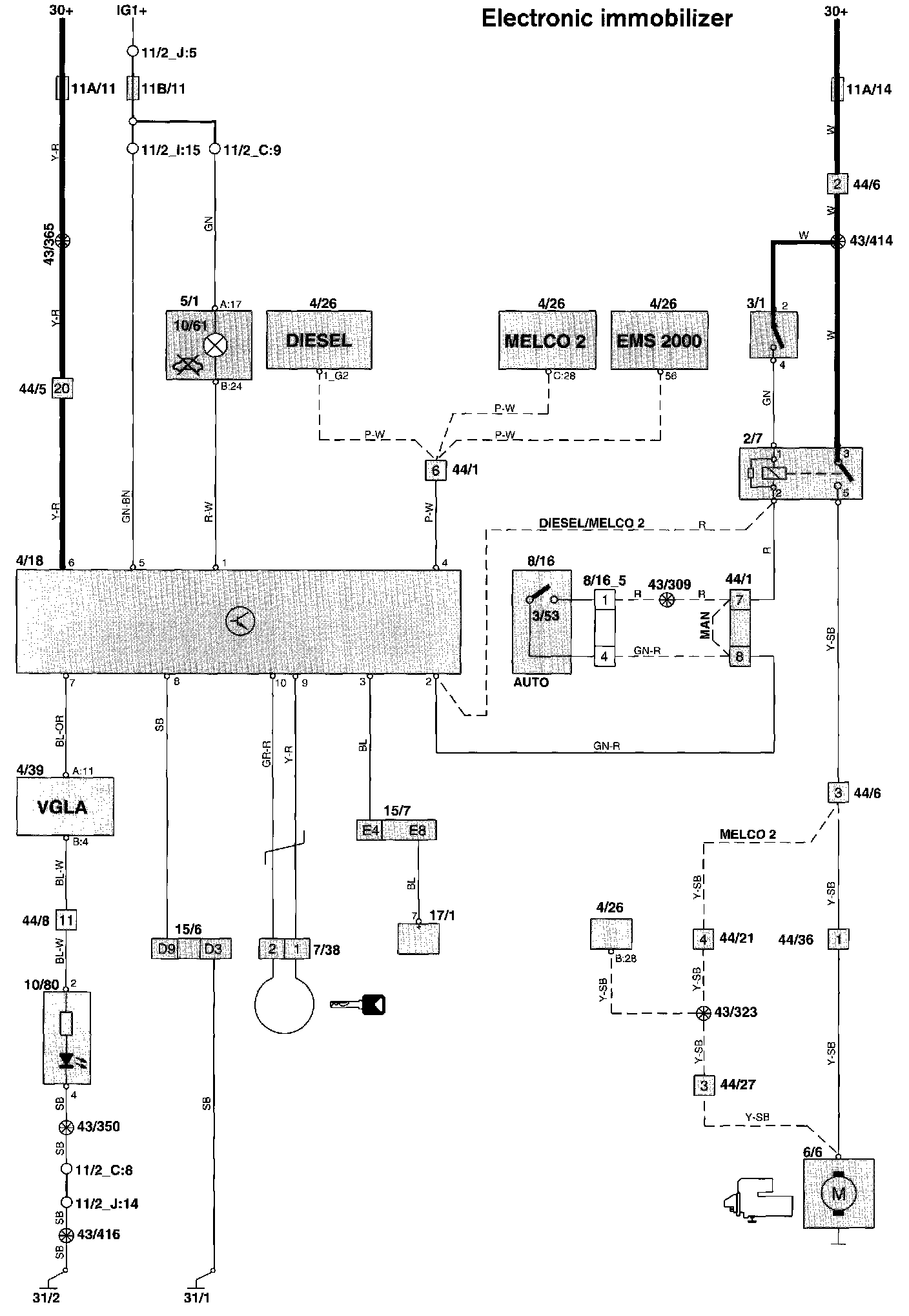

Electronic Immobilizer:
Diagram Legend:
Diagram Legend
