Home >> Volvo >> 2003 >> V40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Heated Seats

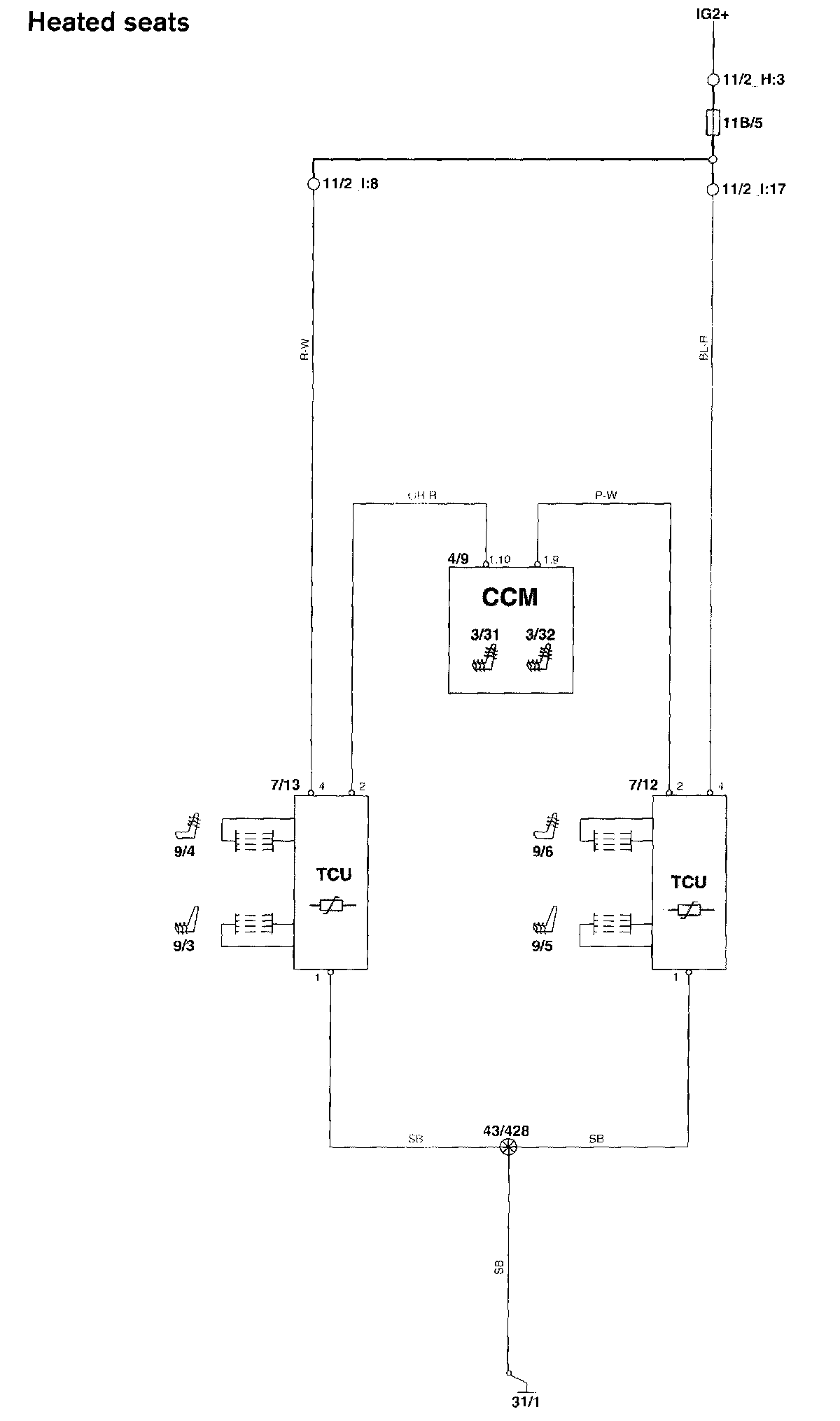

Heated Seats




Heated Seats:






Diagram Legend: Diagram Legend
