Electrical Accessory Panel: Locations

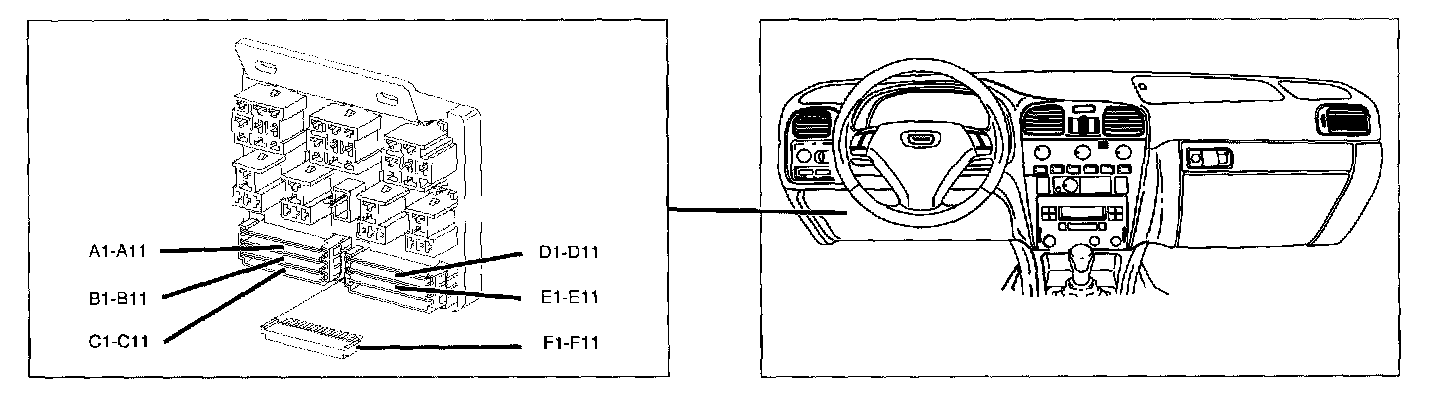

Distribution Rails:

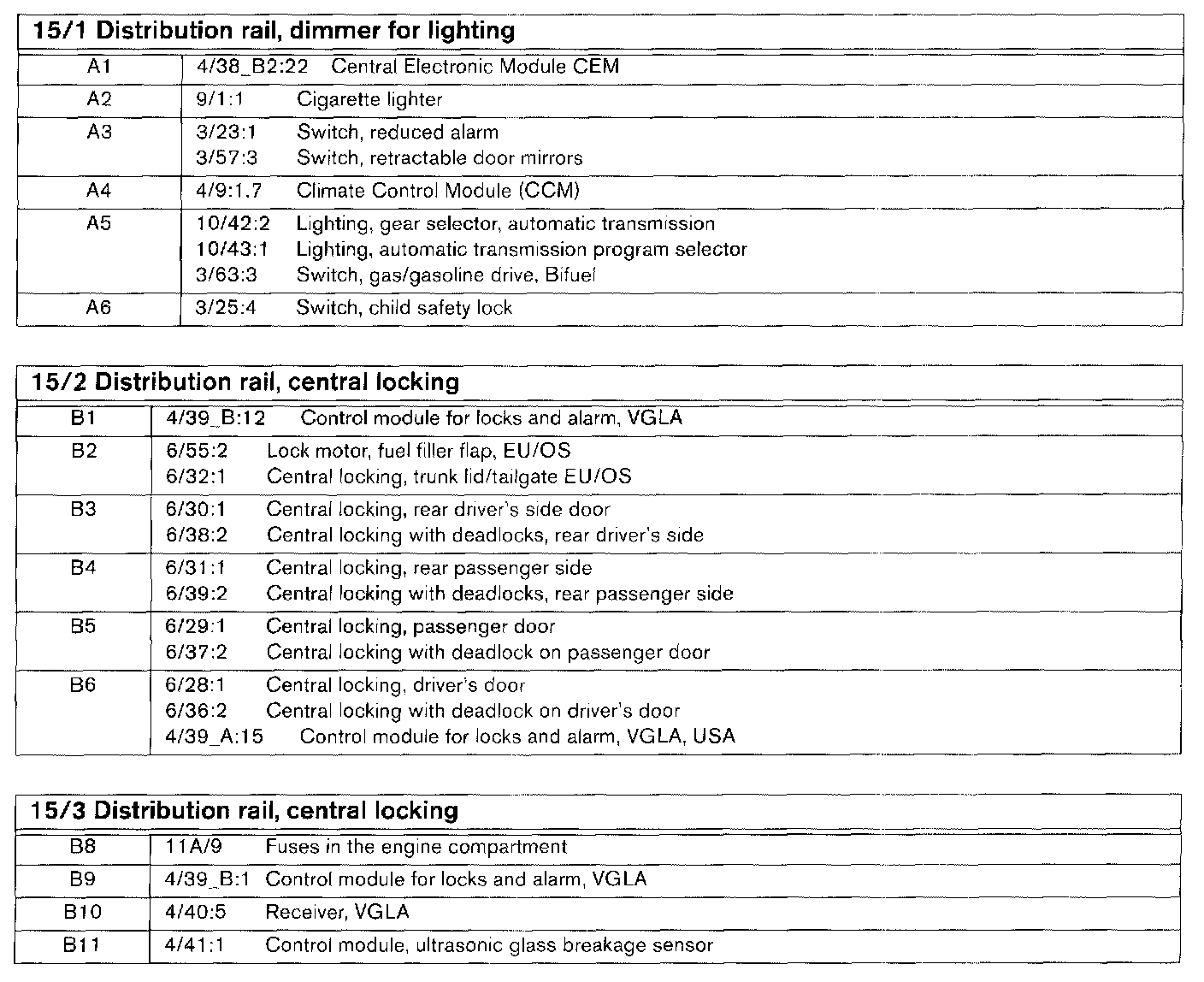

Distribution Rails 15/1 -3:

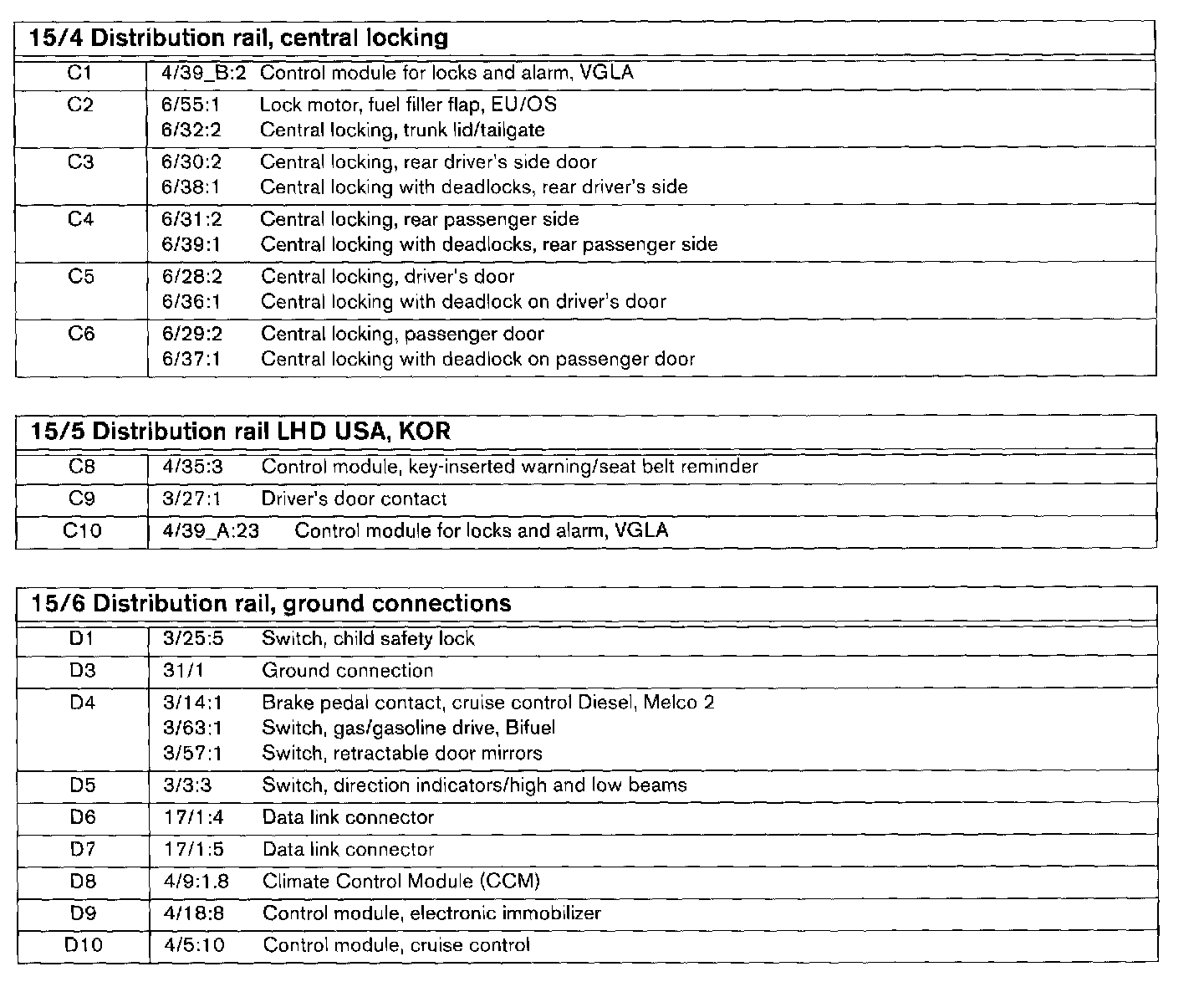

Distribution Rails 15/4-6:

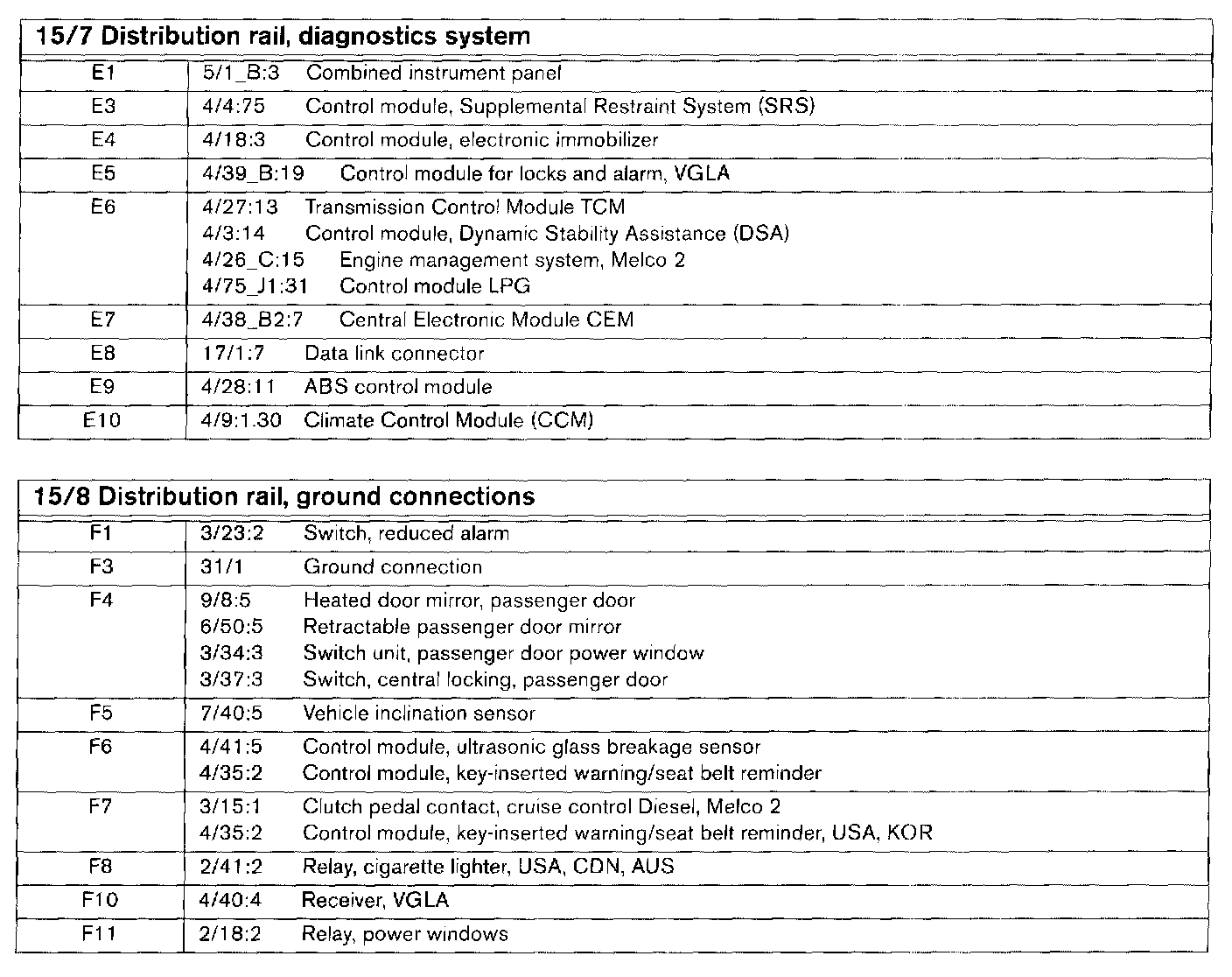

Distribution Rails 15/7-8:






15/1-8 Distribution Rail:
