Home >> Volvo >> 2003 >> V40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Locations >> Fuel Pressure Pipes With Fittings. 2000- 4CYL Turbo. (USA)

Fuel Pressure Pipes With Fittings. 2000- 4CYL Turbo. (USA)


Fuel Pressure Pipes With Fittings. 2000- 4CYL Turbo. (USA)

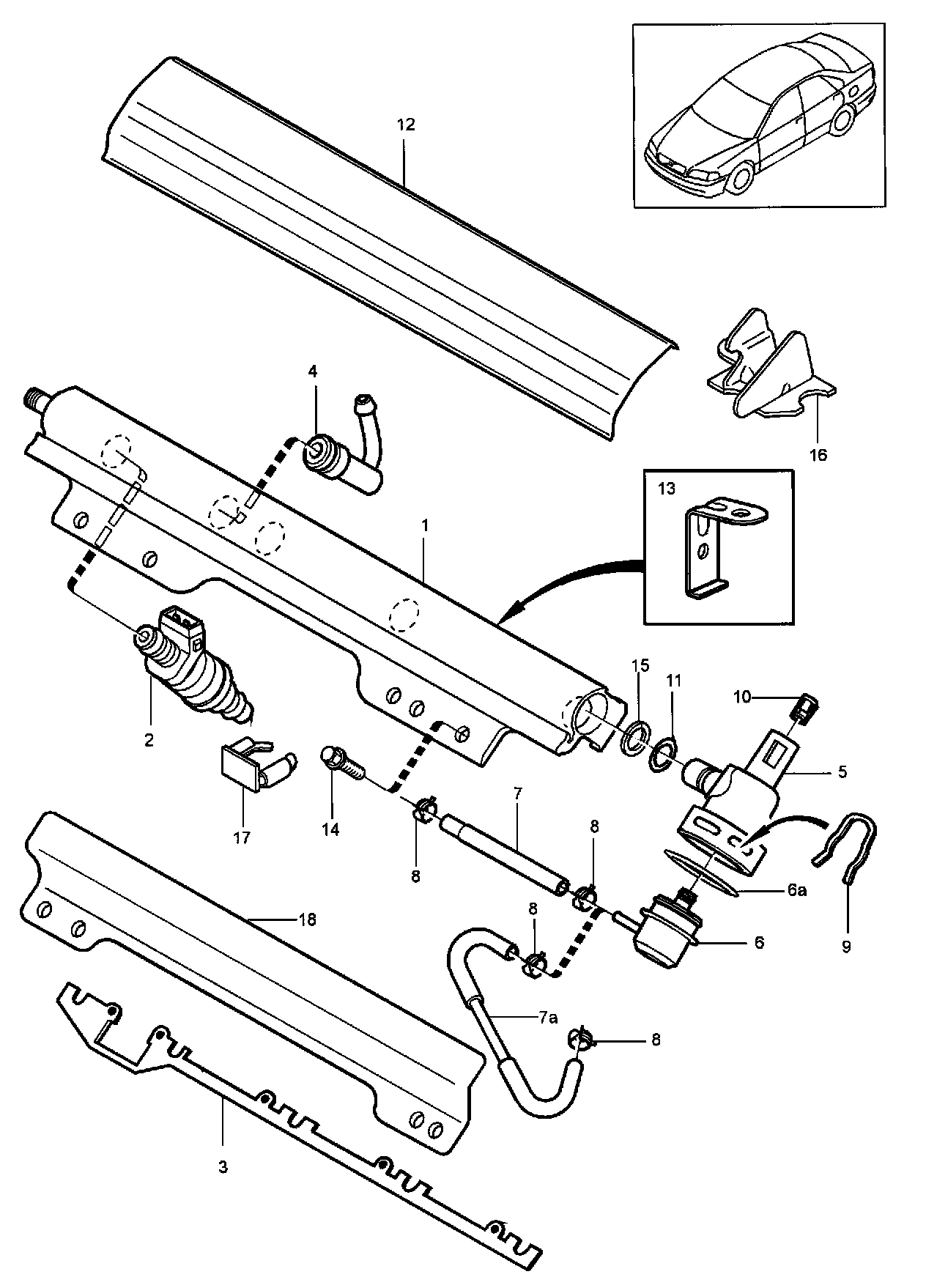

Fuel system. 4CYL (Illustration) Part 1:

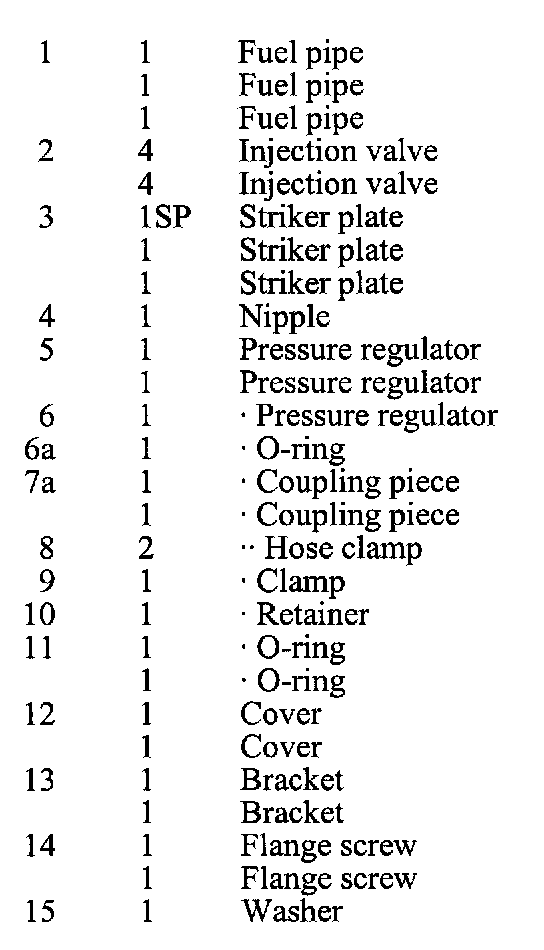

Fuel system. 4CYL (Legend) Part 1:
