Fuel Tank and Connecting Parts. B4204T2/T3 (USA)


Fuel Tank and Connecting Parts. B4204T2/T3 (USA)

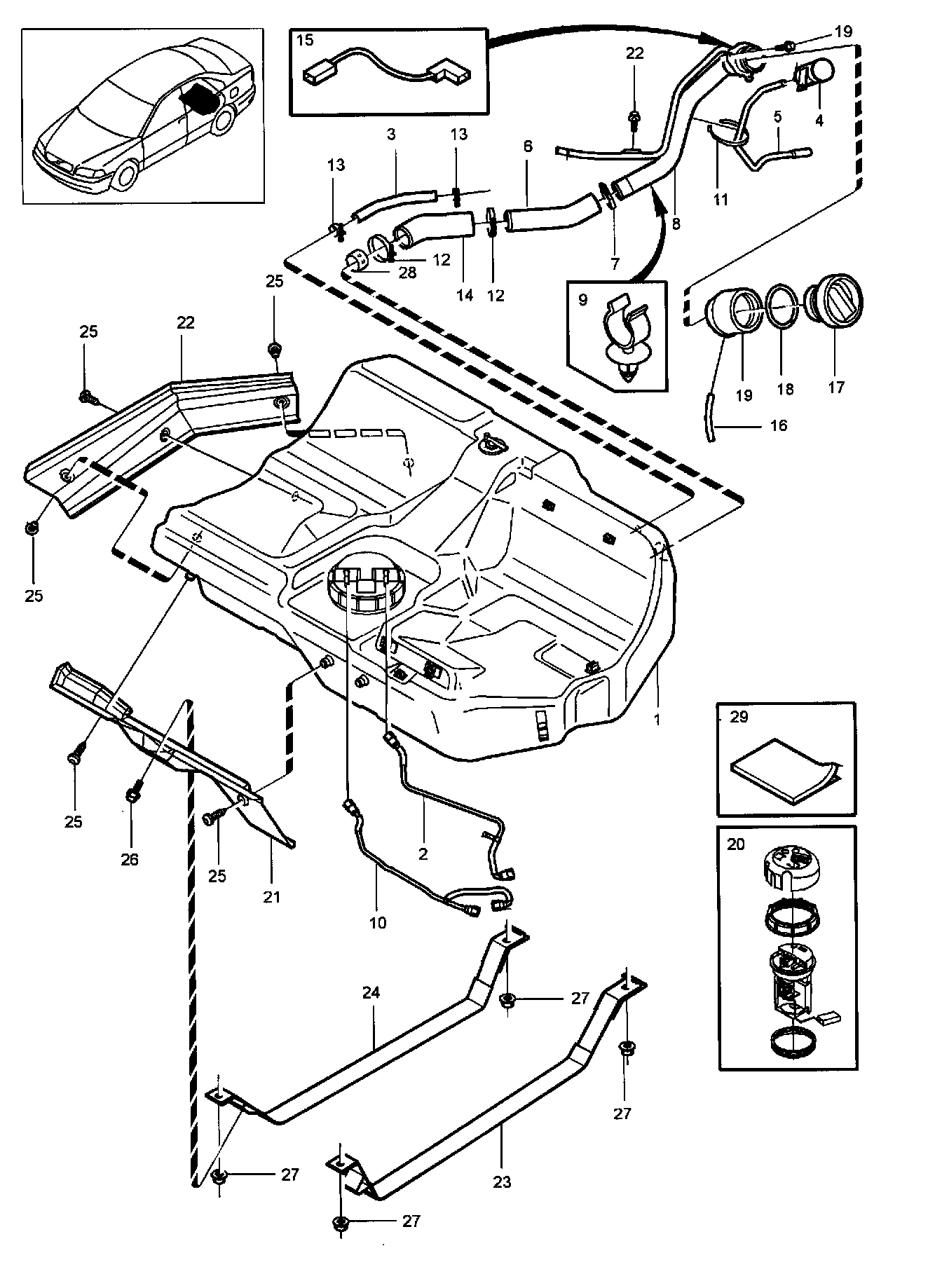

Fuel Tank and Connecting Parts. B4204T2/T3 (USA) Illustration:

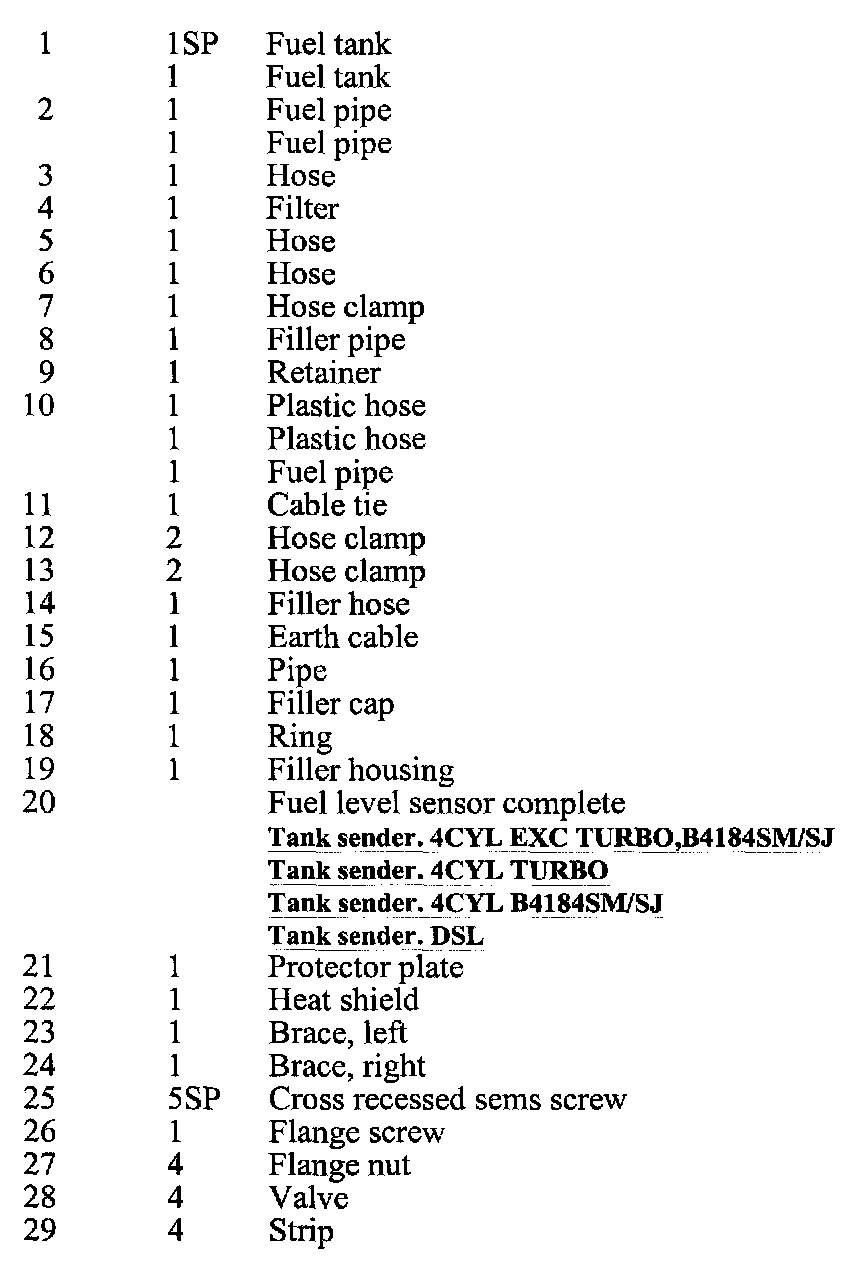

Fuel Tank and Connecting Parts. B4204T2/T3 (USA) Legend:
