Location Of Components

Location of components

Location of Components, Fuel Pump:

Fuel pump:
in the fuel tank.

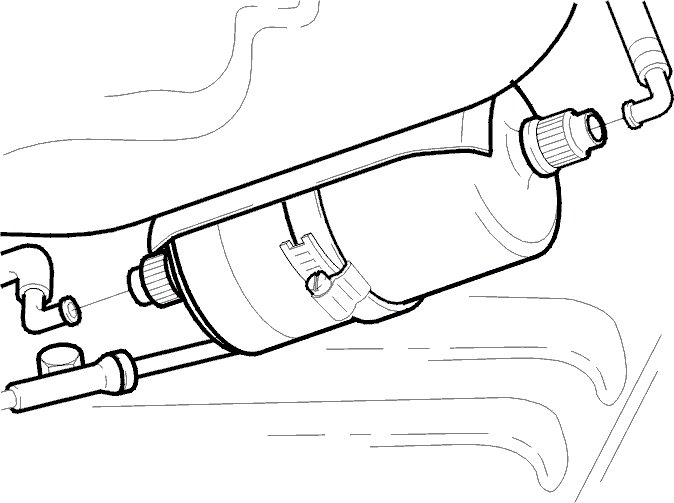

Location of Components, Fuel Filter:

Fuel filter:
by the left rear wheel.

Location of Components, Engine Control Module:

Engine control module (ECM):
on the center console under the dashboard.

Location of Components DSA, Data Link Connector DLC:

Data Link Connector (DLC):
on the left of the center console (LHD cars); on the right on the center console (RHD cars).

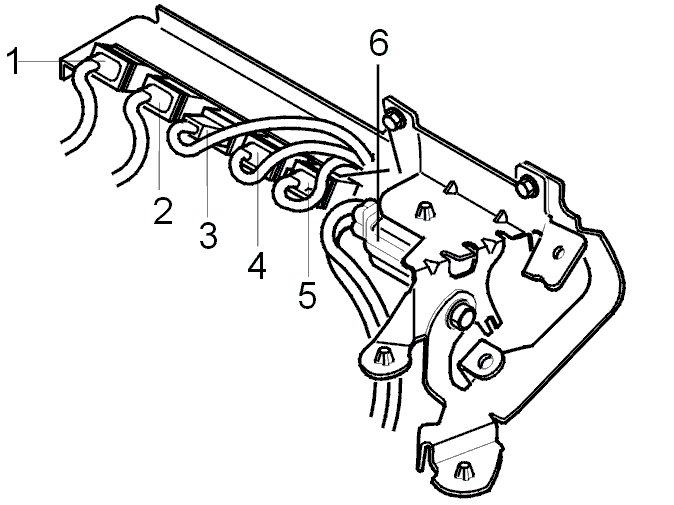

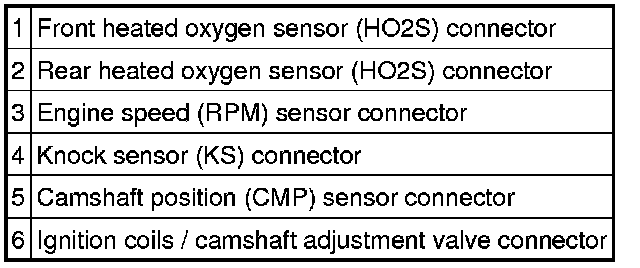

Location of Components, The Bracket For The Connectors (Part 1):

The bracket for the connectors:
on the firewall in the engine compartment.

Location of Components, The Bracket For The Connectors (Part 2):
