11A/No. Fuses In the Engine Compartment




Engine Compartment Fuses:






Fuses 11A/1-8:

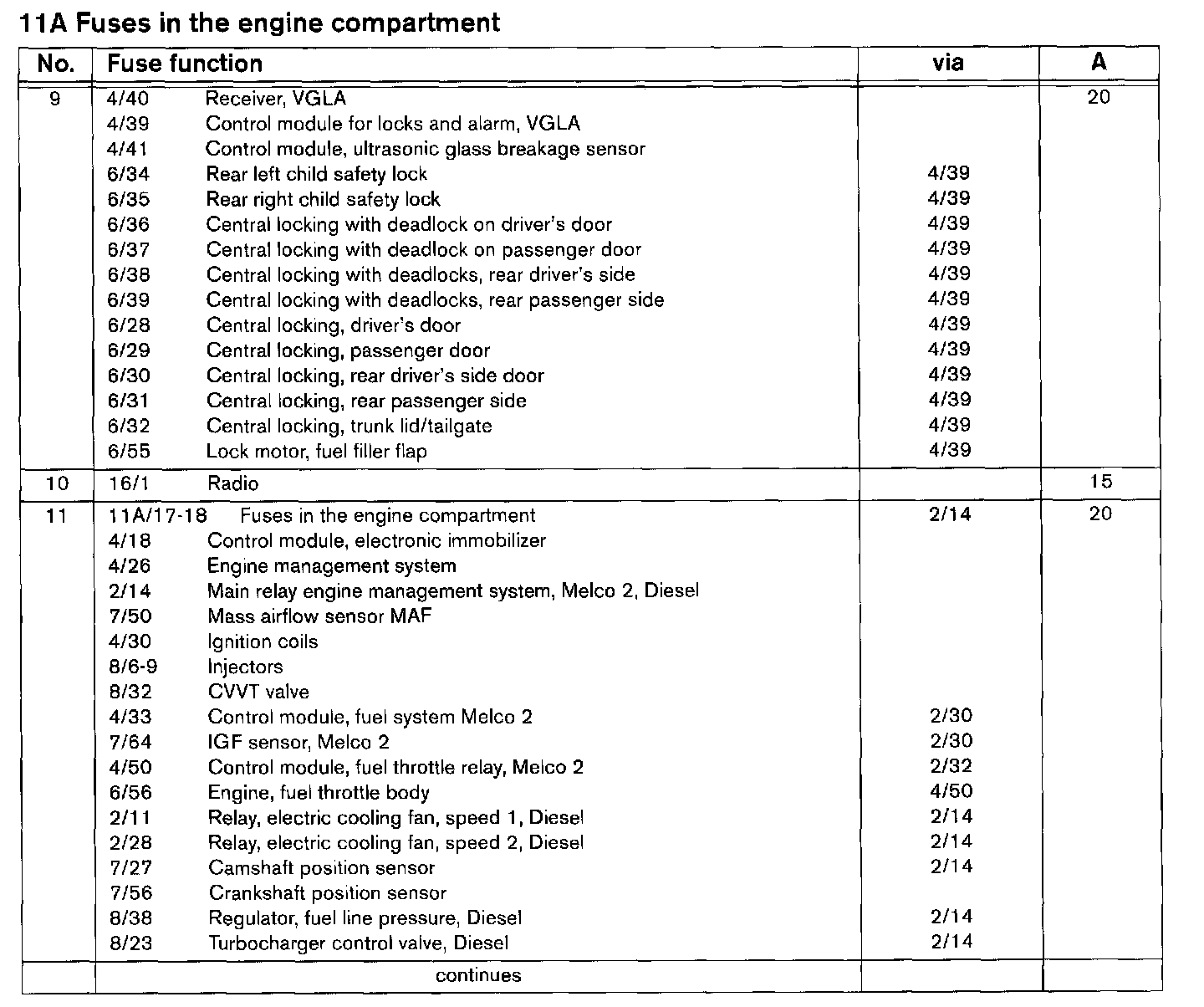

Fuses 11A/9-11:

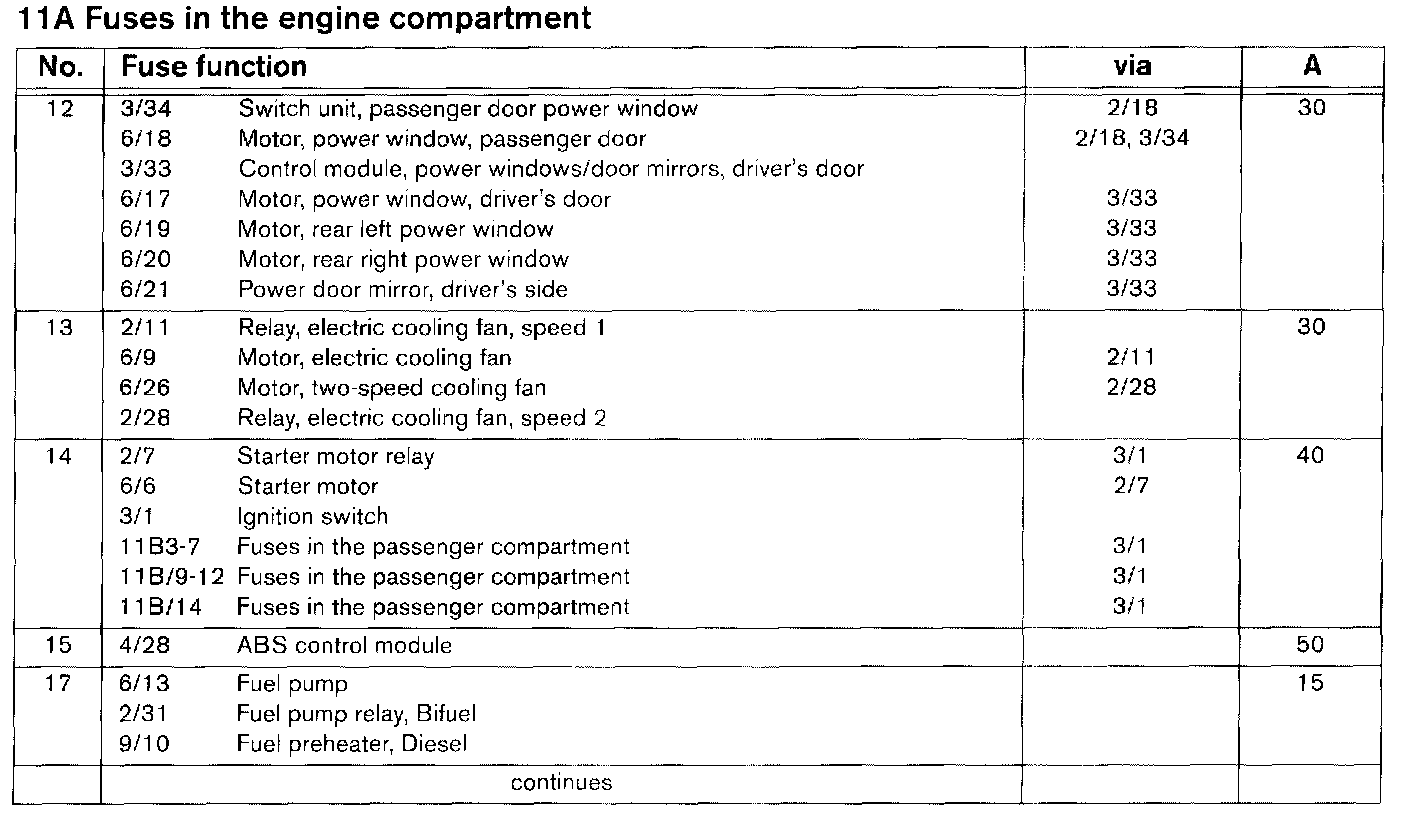

Fuses 11A/12-17:






Fuses 11A/18-23:






Fuses 11A/24-31:
