Electrical Diagrams

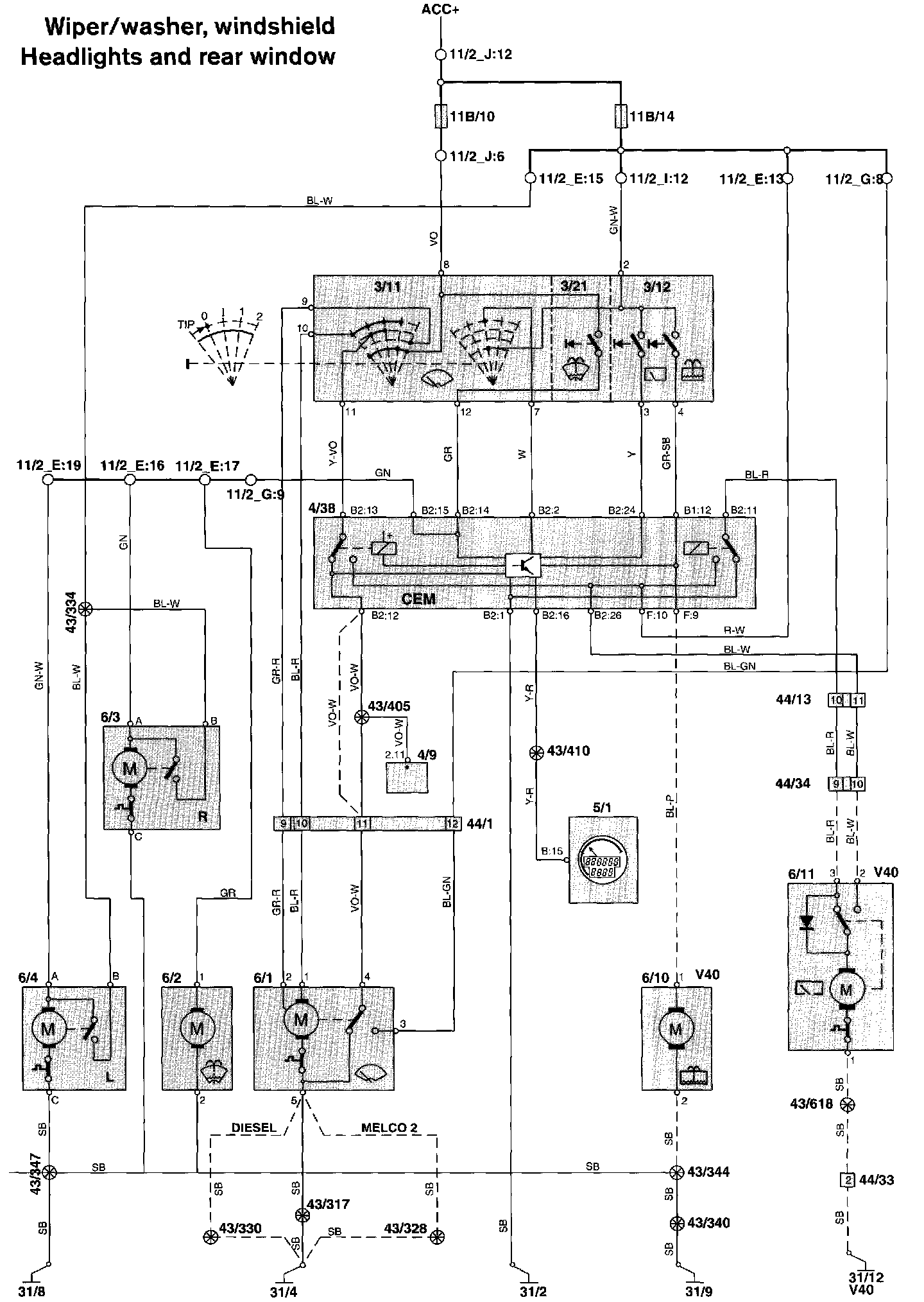

Wiper/washer, Windshield Headlights And Rear Window:






Diagram Legend: Diagram Legend
