Home >> Volvo >> 2003 >> V40 L4-1.9L Turbo VIN 29 B4204T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/18 Connector

44/18 Connector

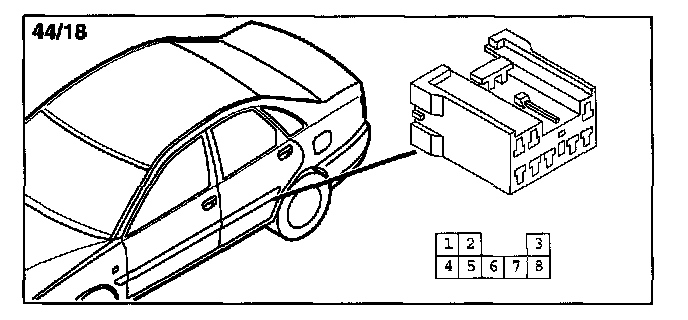

44/18:

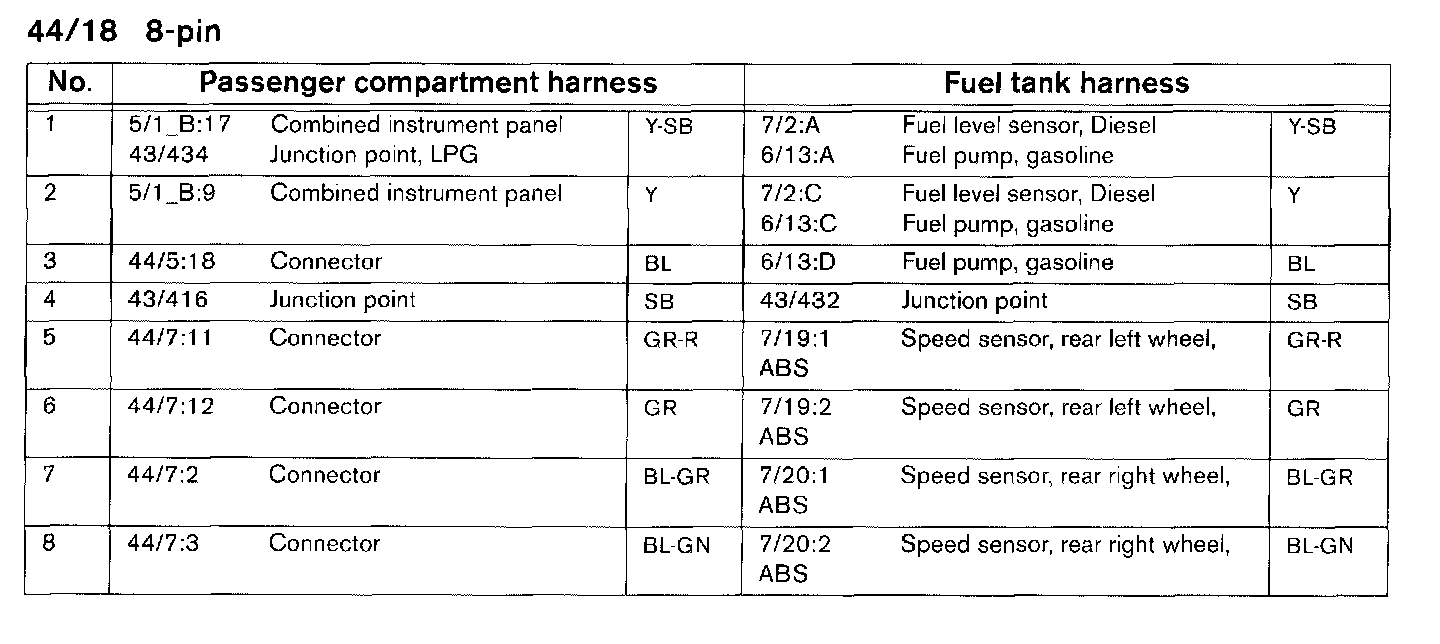

44/18 Connector:
