Home >> Volvo >> 2003 >> V40 L4-1.9L Turbo VIN 29 B4204T3 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/4 Connector

44/4 Connector

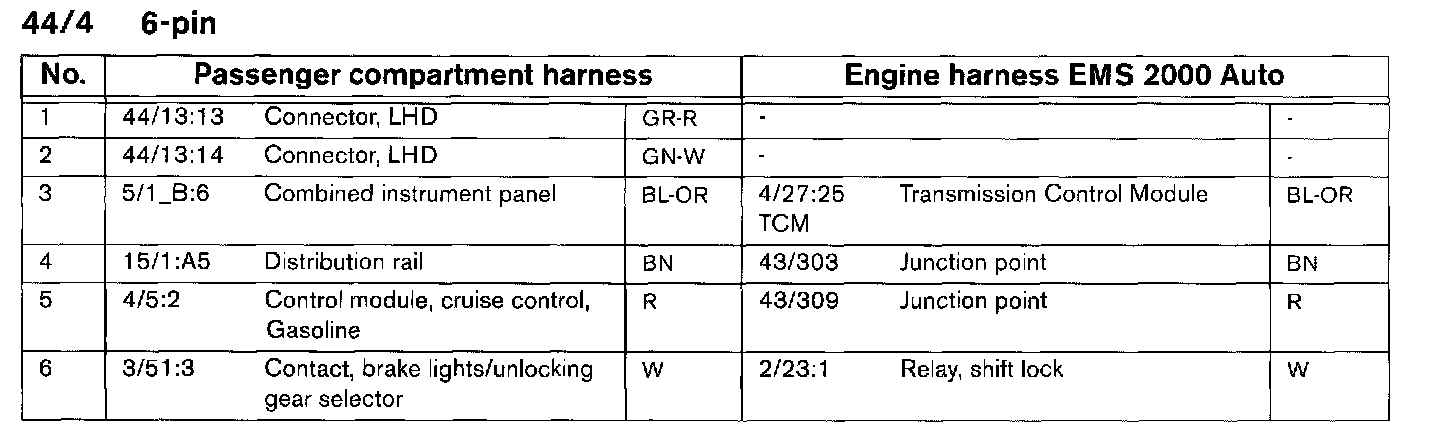

44/4:

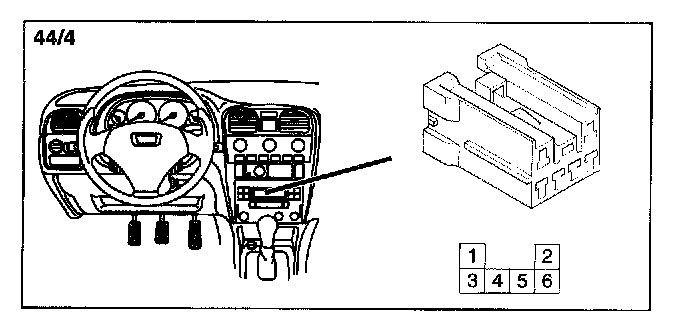

44/4 Connector:
