Home
>>
Volvo
>>
2003
>>
V40 L4-1.9L Turbo VIN 29 B4204T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

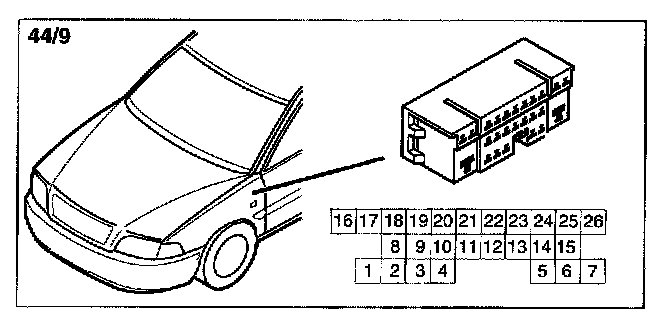

44/9 Connector
44/9 Connector

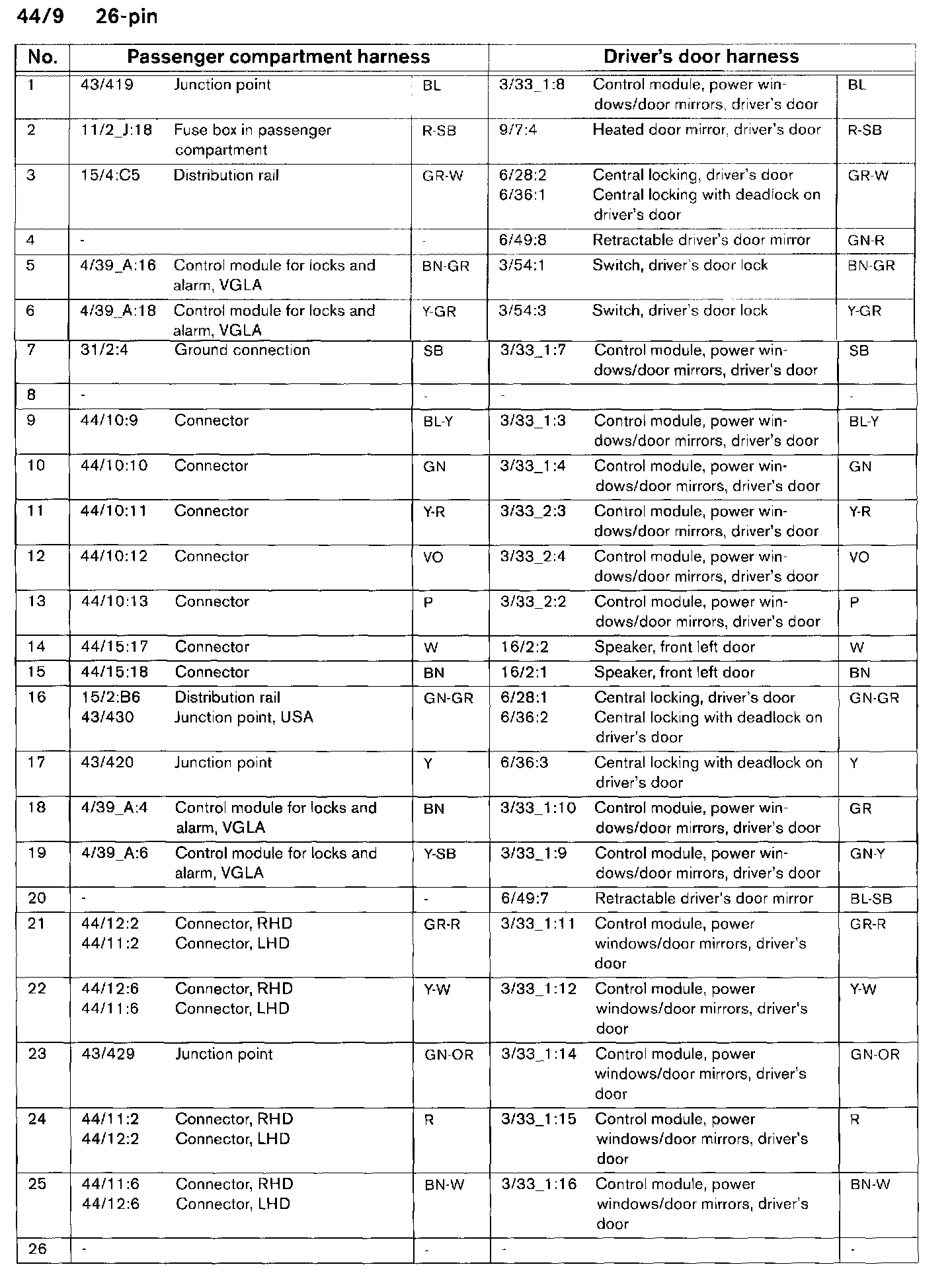

44/9:
44/9 Connector:
