Auxiliary Cabin Heater: Locations

Additional heater 912-B

Location Of Components, Additional Heater, Location In The Car:

Location in the car
The heater is located inside the front fender, in front of the front left wheel arch.
The timer is located in the center console inside the passenger compartment or in the glove compartment (only for parking heater function).

Location Of Components, Components:

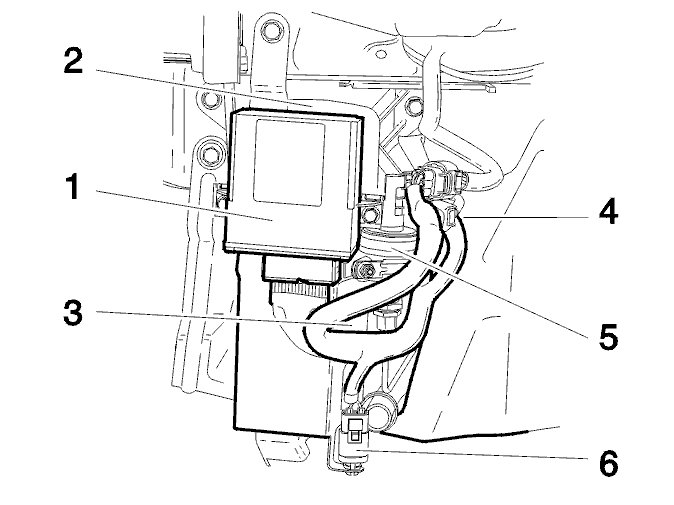

Components
1. Control module
2. Fan shroud
3. Heat exchanger
4. Fuel pump (FP)
The fuel pump (FP) is installed in the fuel tank instead of on the heater when the additional heater is also used as a parking heater.
5. Water pump
6. Outer temperature sensor

Location Of Components, Heater Components:

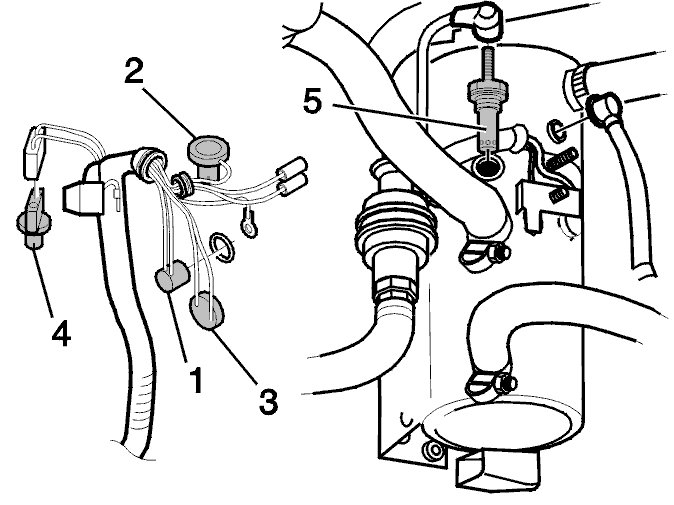

Heater components
1. Coolant temperature sensor
2. Flame sensor
3. Overheat protection thermostat
4. Outer temperature sensor
5. Glow plug

Location Of Components, Timer Type 4:

Timer type 4
The timer only when the car is equipped with parking heater function.
