Operation CHARM
: Car repair manuals for everyone.
Home
>>
Volvo
>>
2003
>>
V70 2.4 L5-2.4L VIN 61 B5244S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Collision Avoidance and Parking Assist Systems
Collision Avoidance and Parking Assist Systems

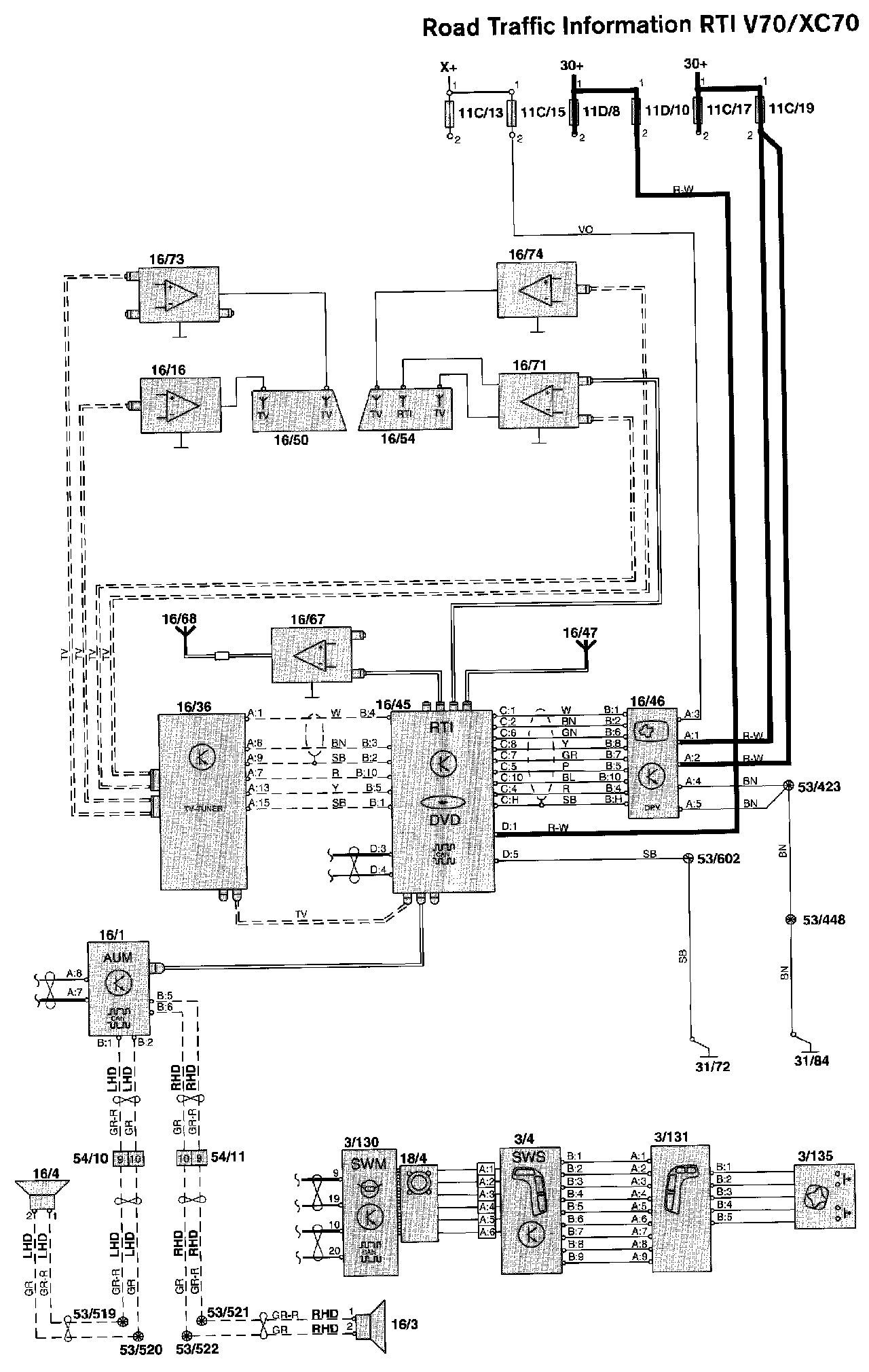

Road Traffic Information RTI:
Diagram Legend,
Diagram Legend
