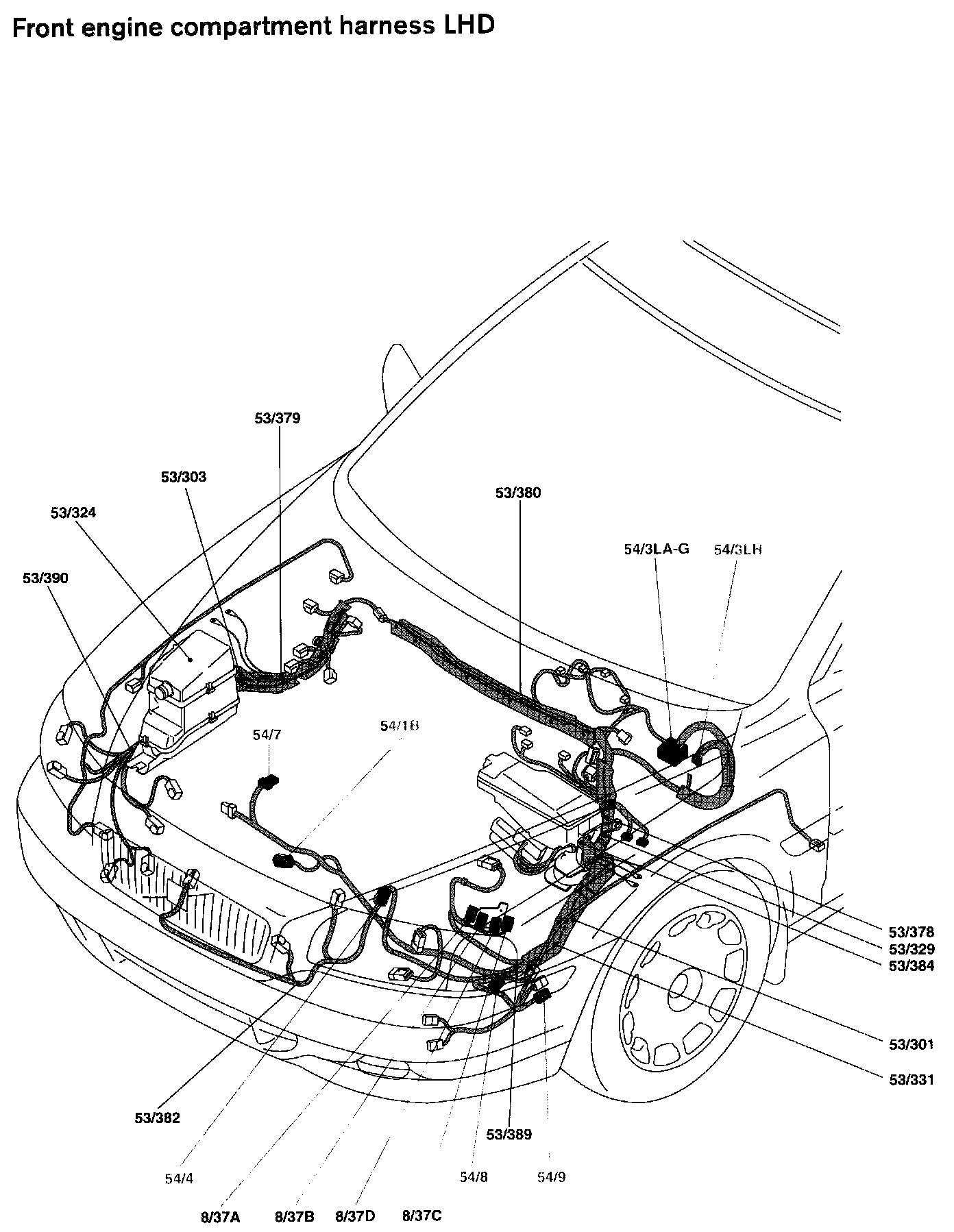

Front Engine Compartment Harness LHD
Front Engine Compartment Harness LHD
Front Engine Compartment Harness LHD:
