Home
>>
Volvo
>>
2003
>>
V70 2.4 L5-2.4L VIN 61 B5244S
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

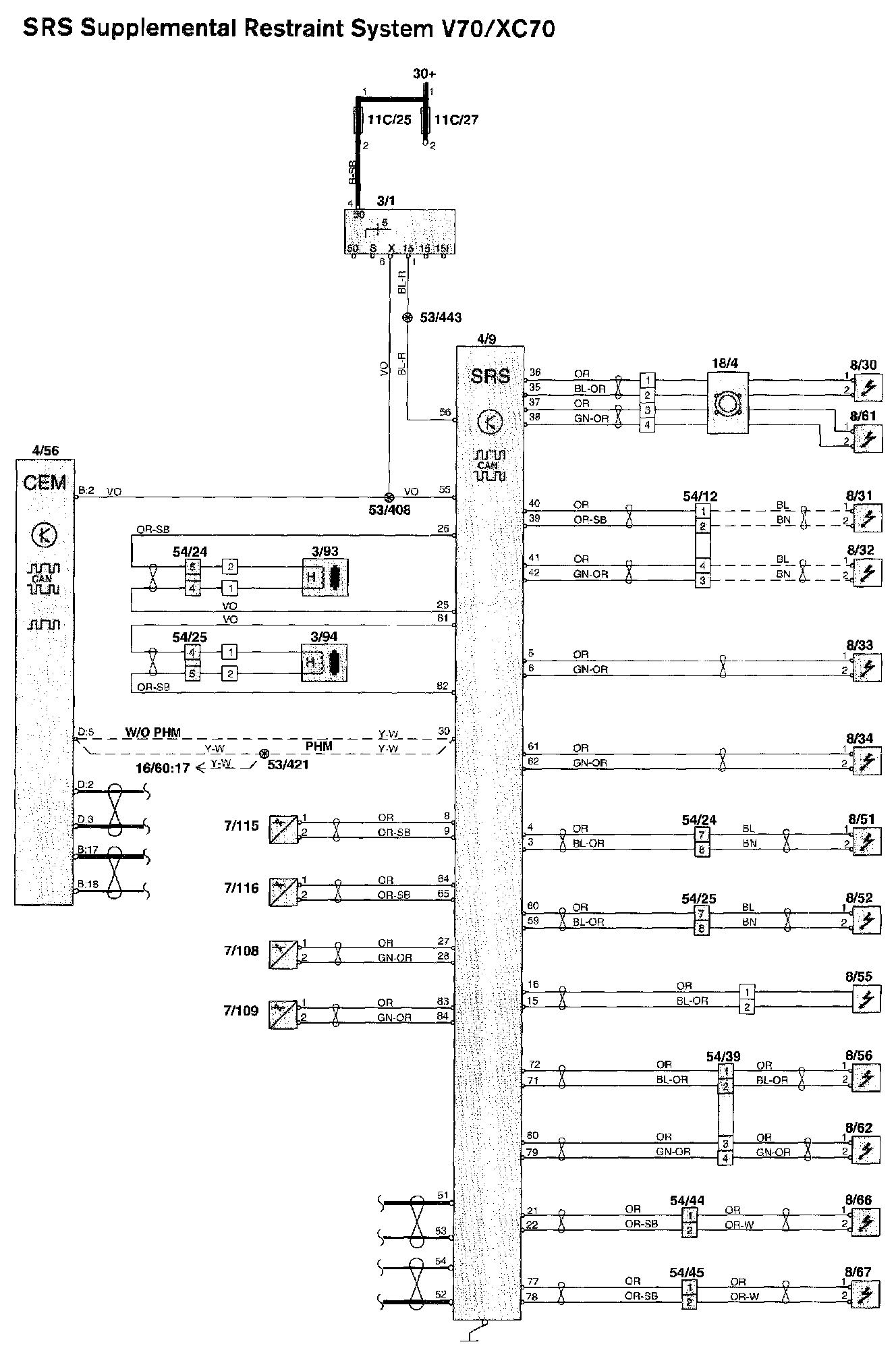

SRS Supplement Restraint System:
Diagram Legend,
Diagram Legend
