Electrical Diagrams

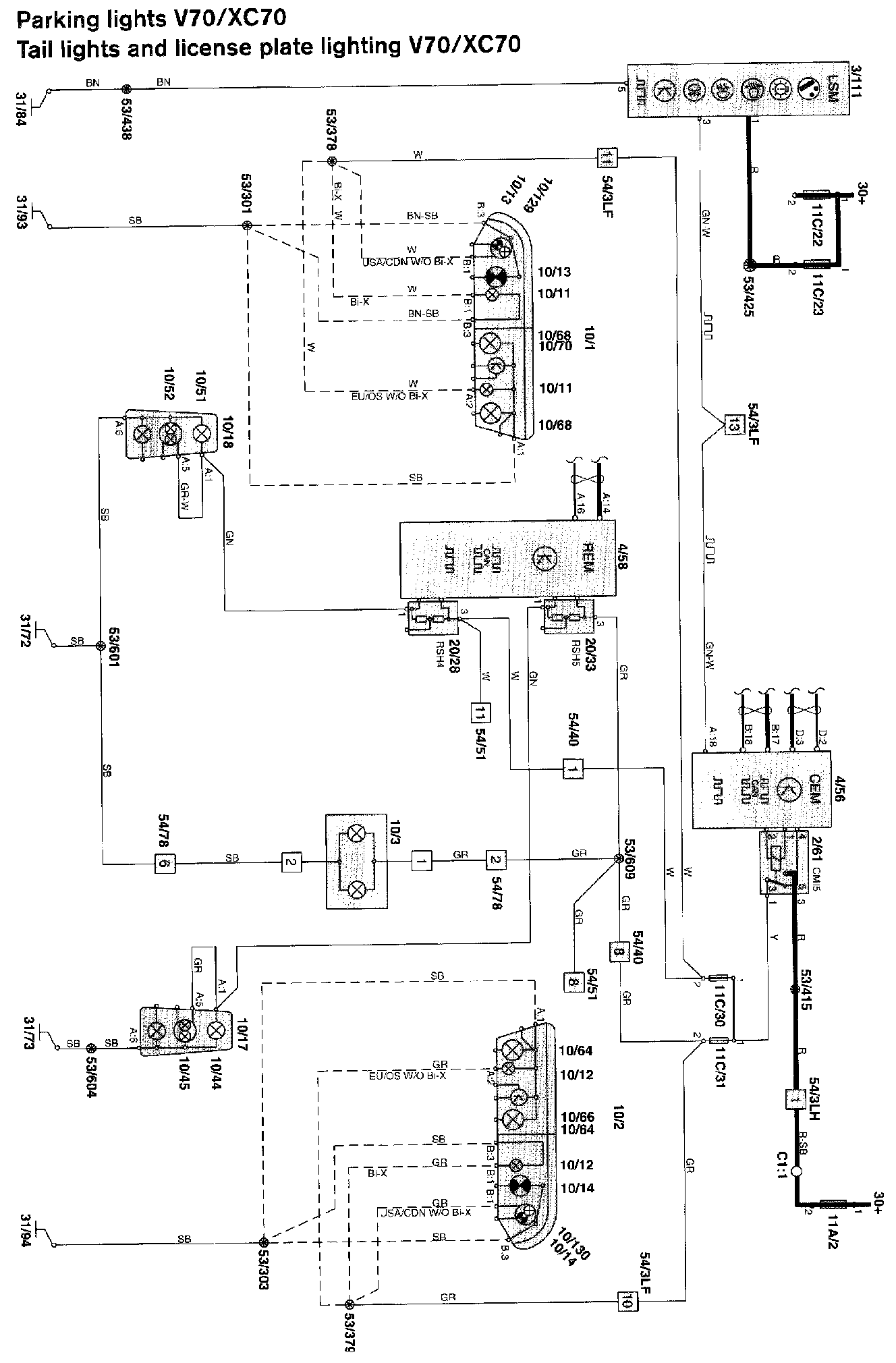

Parking Lights, Tail Lights And License Plate Lighting:






Diagram Legend, Diagram Legend
