Garage Door Opener Transmitter
Garage Door Opener Transmitter

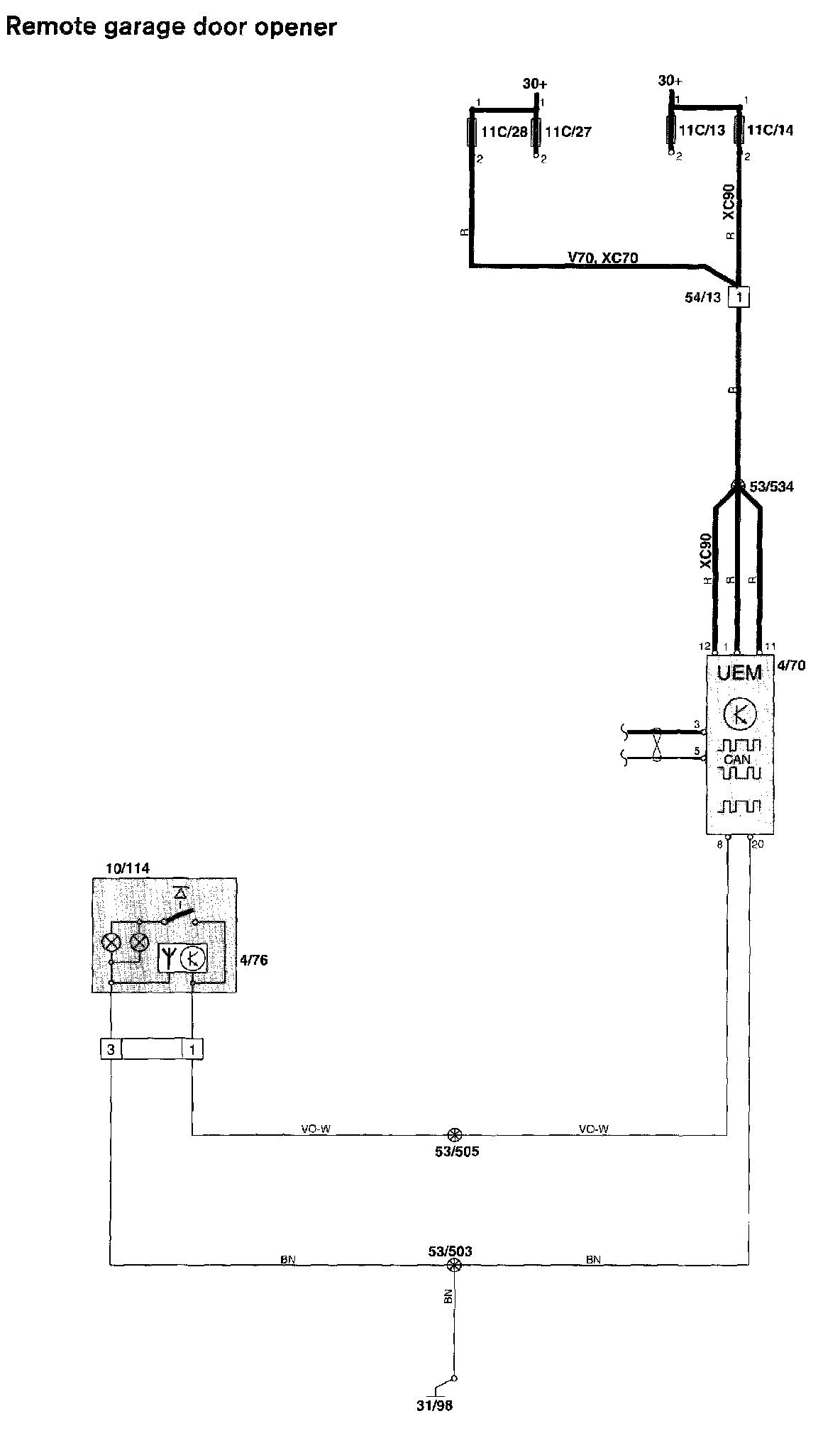

Remote Garage Door Opener:
Diagram Legend,
Diagram Legend
