System Diagram

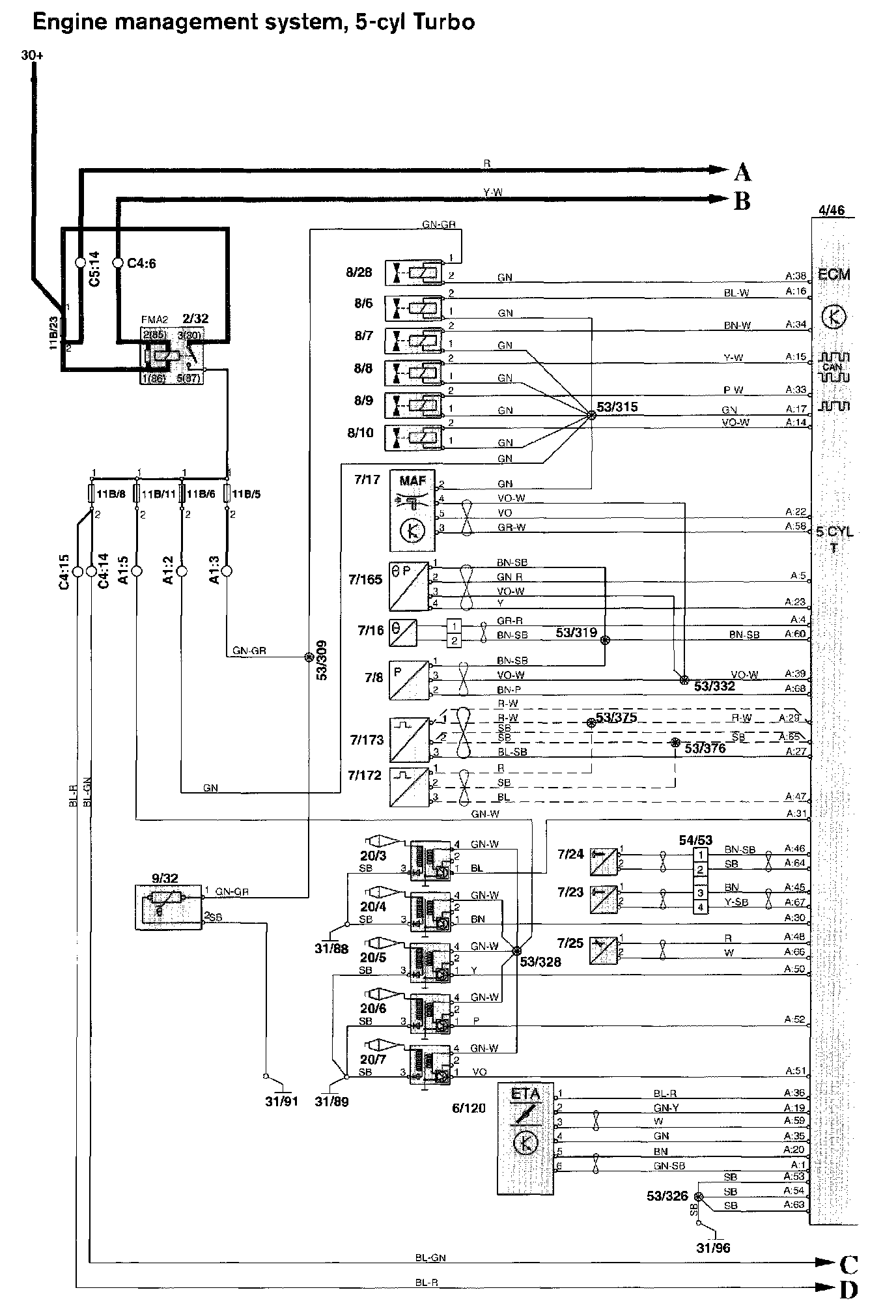

Engine Management System - Part 1:

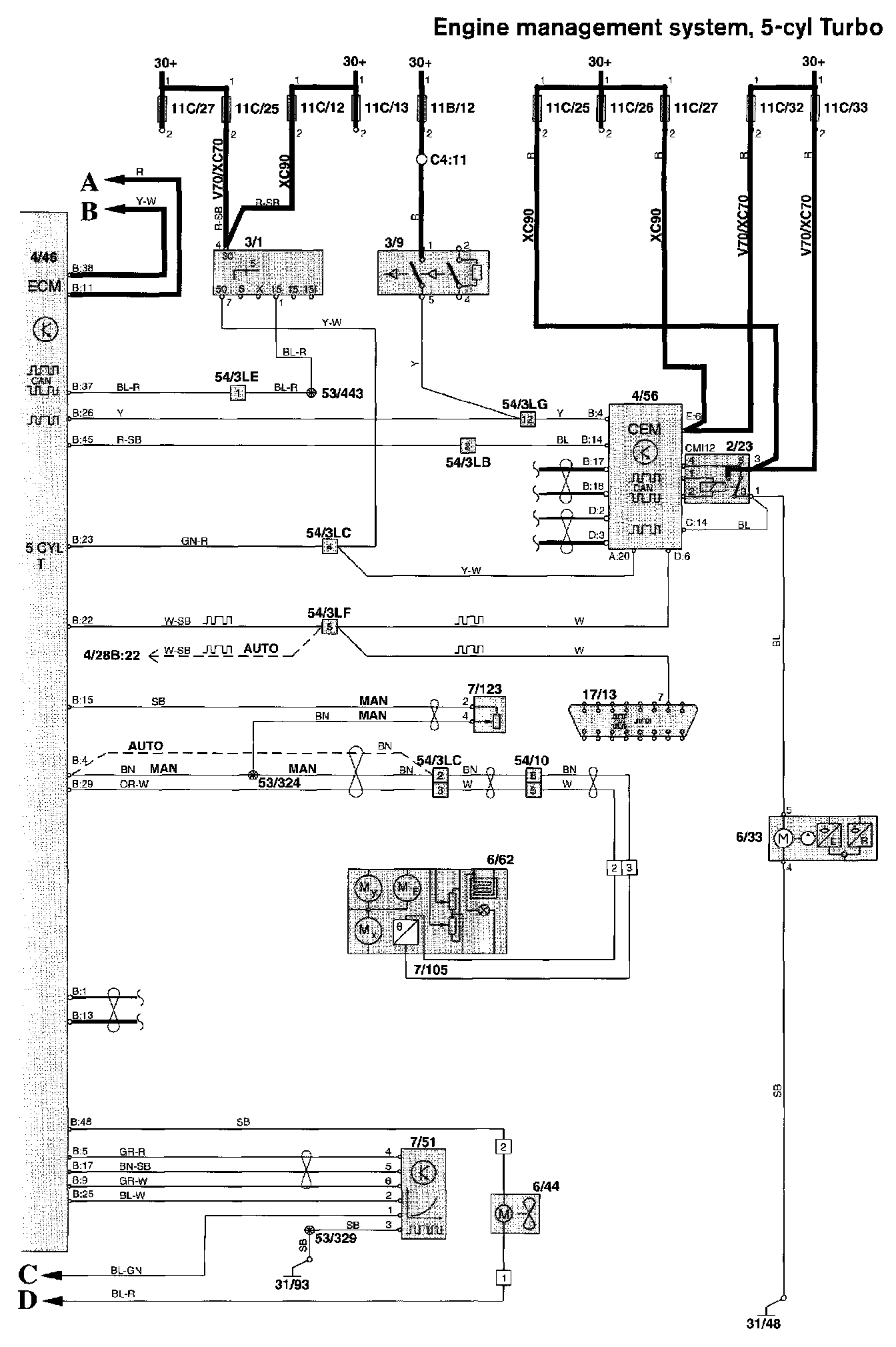

Engine Management System - Part 2:






Diagram Legend, Diagram Legend
