V70 L5-2.4L VIN 64 B5244S6
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Manual Climate Control (MCC)
Manual Climate Control (MCC)

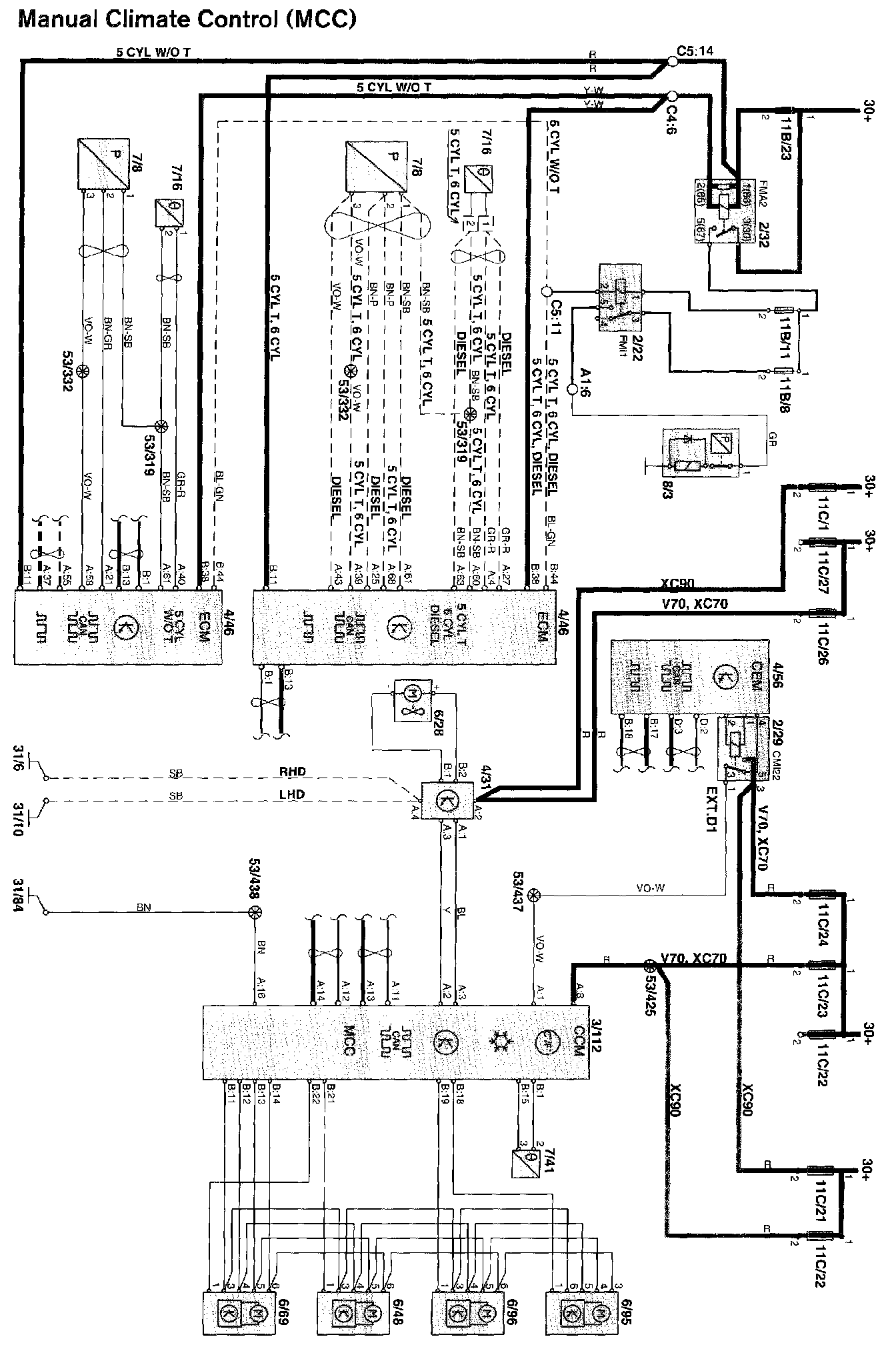

Manual Climate Control (MCC):
Diagram Legend,
Diagram Legend
