Courtesy Lamp
>>
Interior Lighting
Interior Lighting

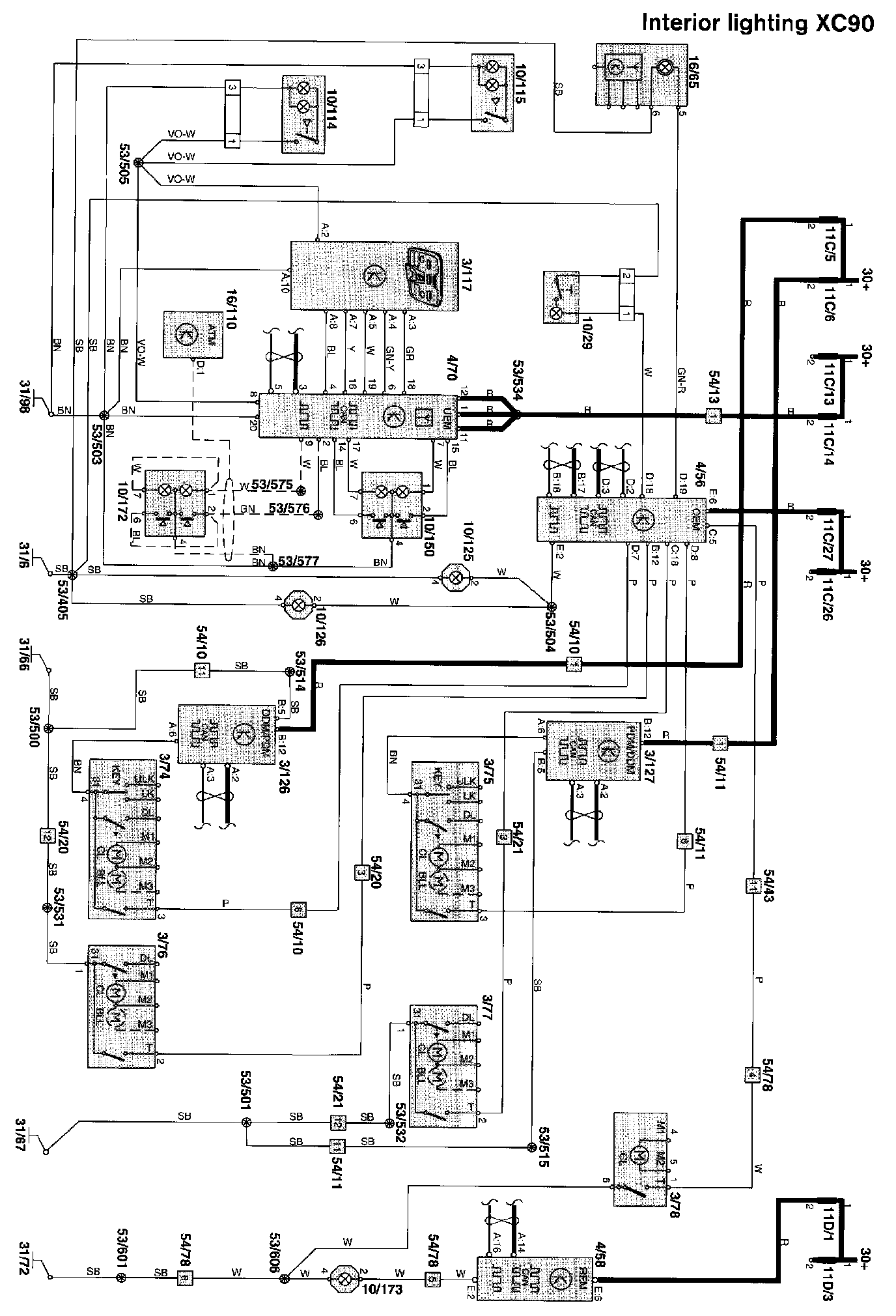

Interior Lighting:
Diagram Legend,
Diagram Legend
