Instrument Panel, Gauges and Warning Indicators: Locations

Other electrical components

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

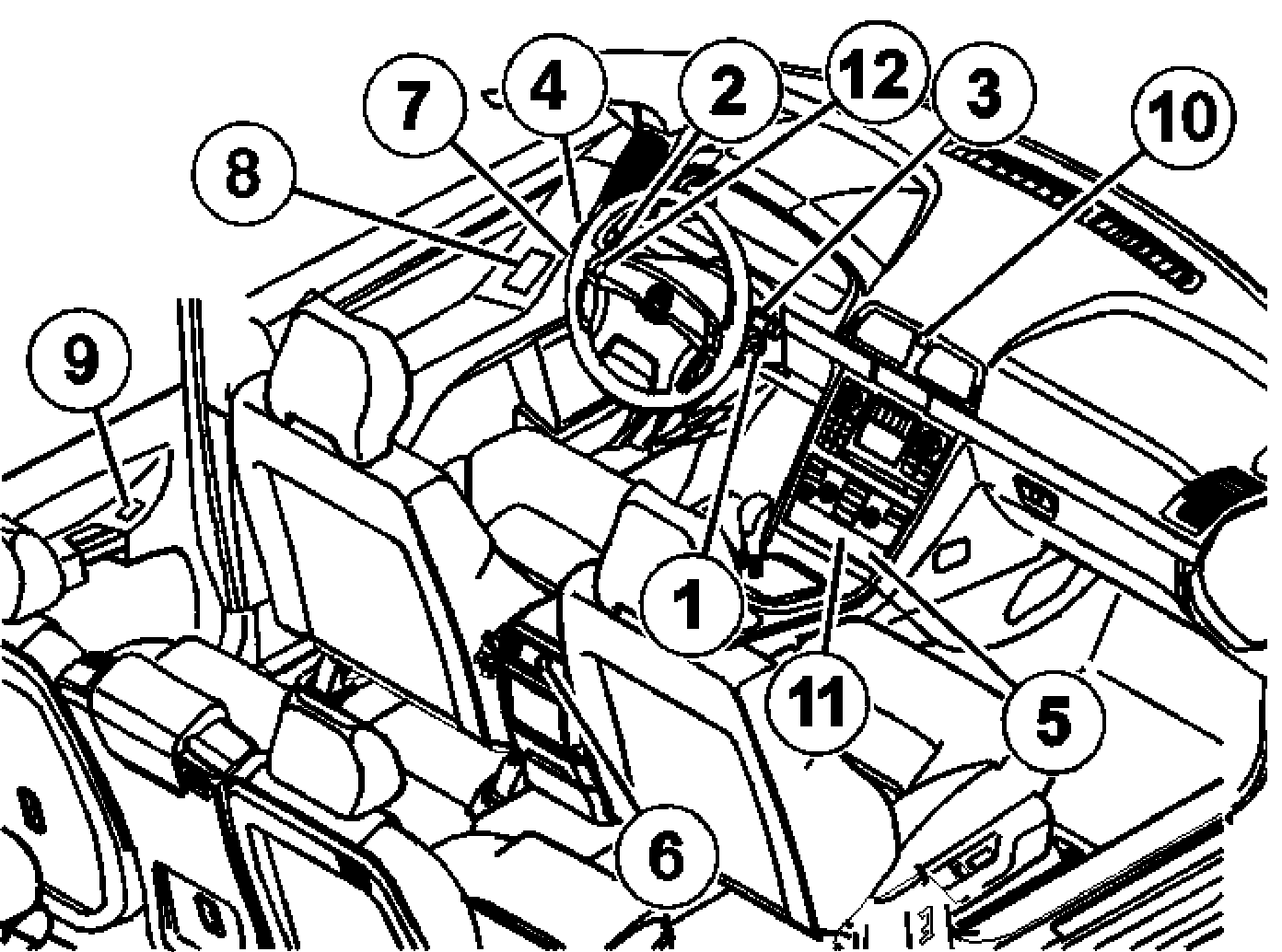

Electrical connector





1 Start switch
2 Turn signal lamp and dip switch
3 Windshield wiper and washer switch
4 Light switch
5 Front cigarette lighter and electrical socket
6 Rear cigarette lighter and electrical socket
7 Data Link Connector (DLC)
8 Door module, driver's door module and passenger door module
9 Switch power window rear side door
10 Switch for the hazard warning signal flasher
11 Dashboard environment panel switches
12 Keypad in the steering wheel.
