Compact Disc Player (CD): Service and Repair

Receiver

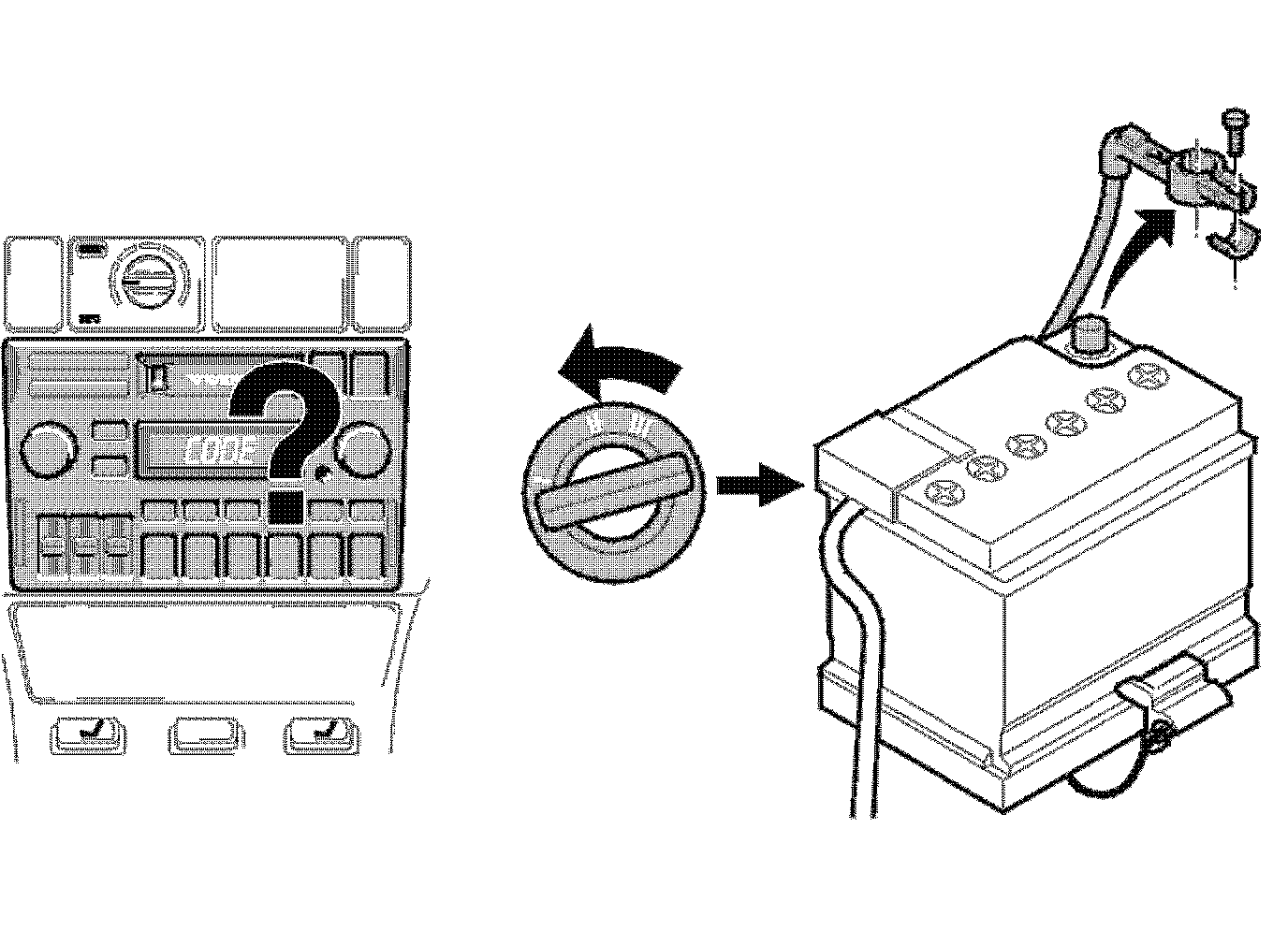

Preparation

- Make a note of the radio code.
- Turn ignition key to position 0.
- Remove the battery ground lead.

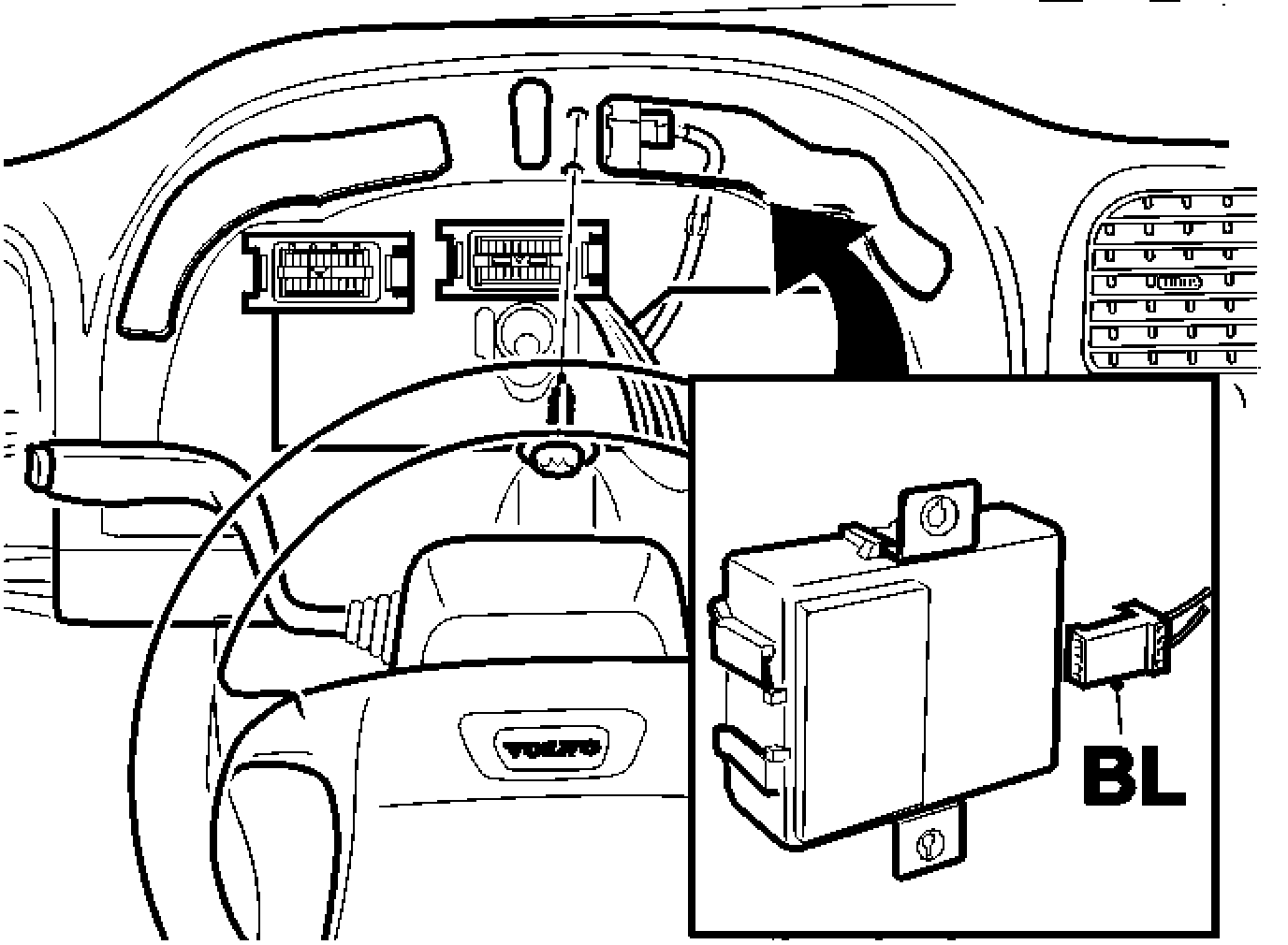

Replacing Receiver

Remove:
- Remove combined instrument.
- Remove screws (2x) and turn the receiver out of the dashboard.
- Remove blue (BL) connector.

Install:







- Attach blue (BL) connector.
- Position receiver and install screws (2x).
- Install combined instrument.
- The receiver is connected to the VGLA electrical system and requires a software program unique to the car.
