Fuses in Engine Compartment
Fuses In The Engine Compartment
Fuses In Engine Compartment:

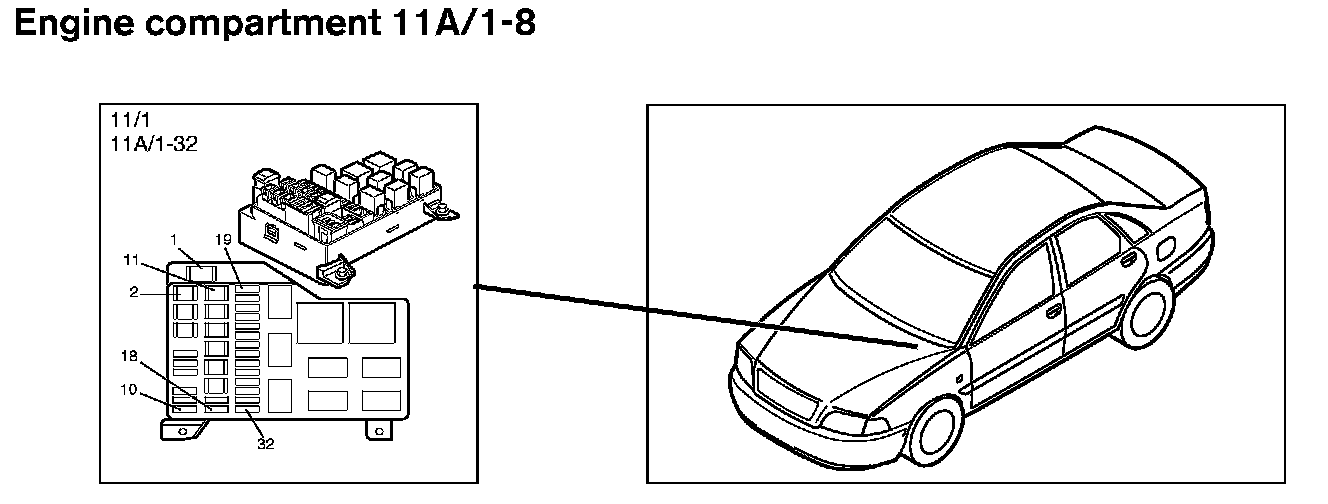

Fuses 11A/1-8:

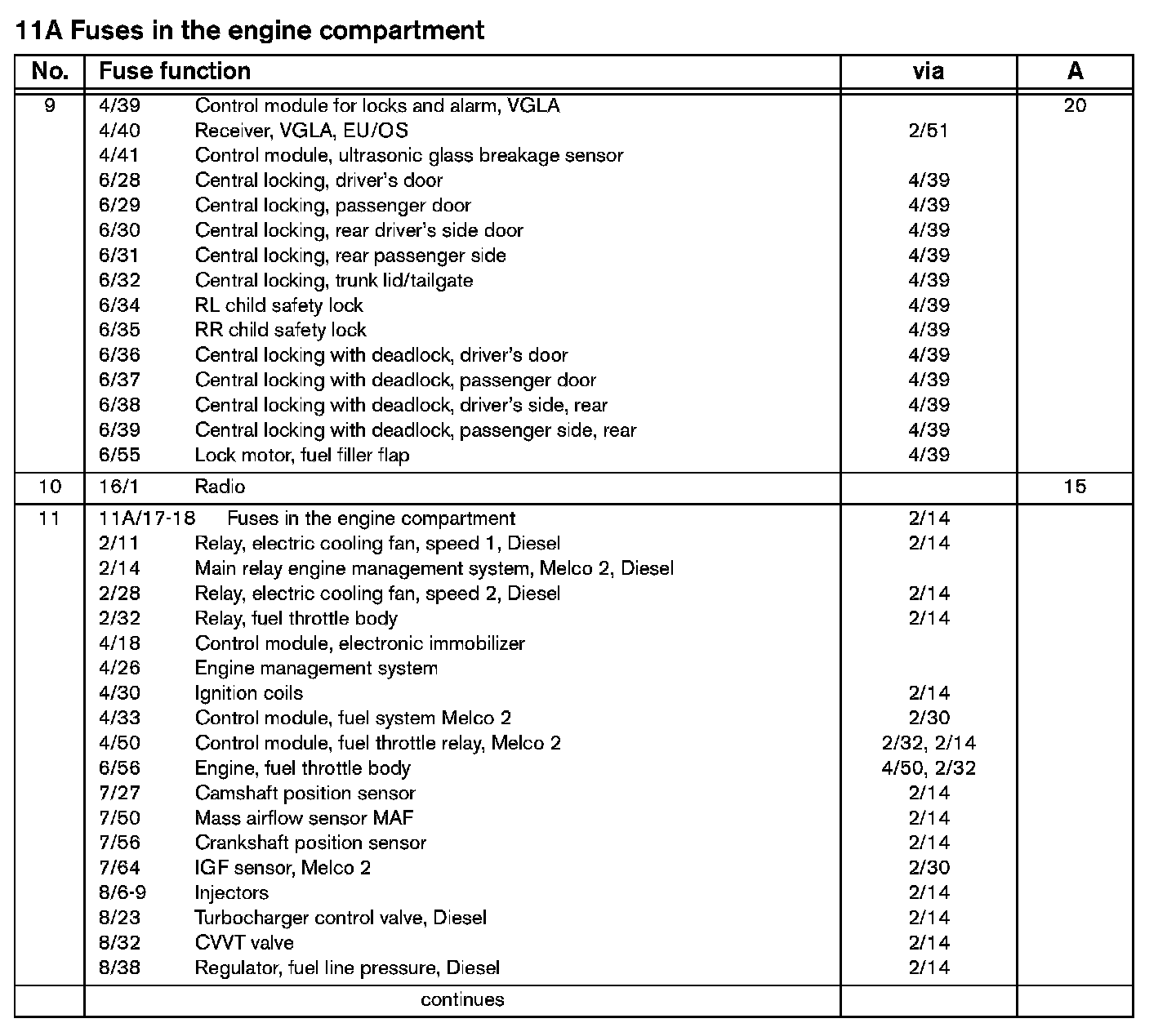

Fuses 11A/9-11:

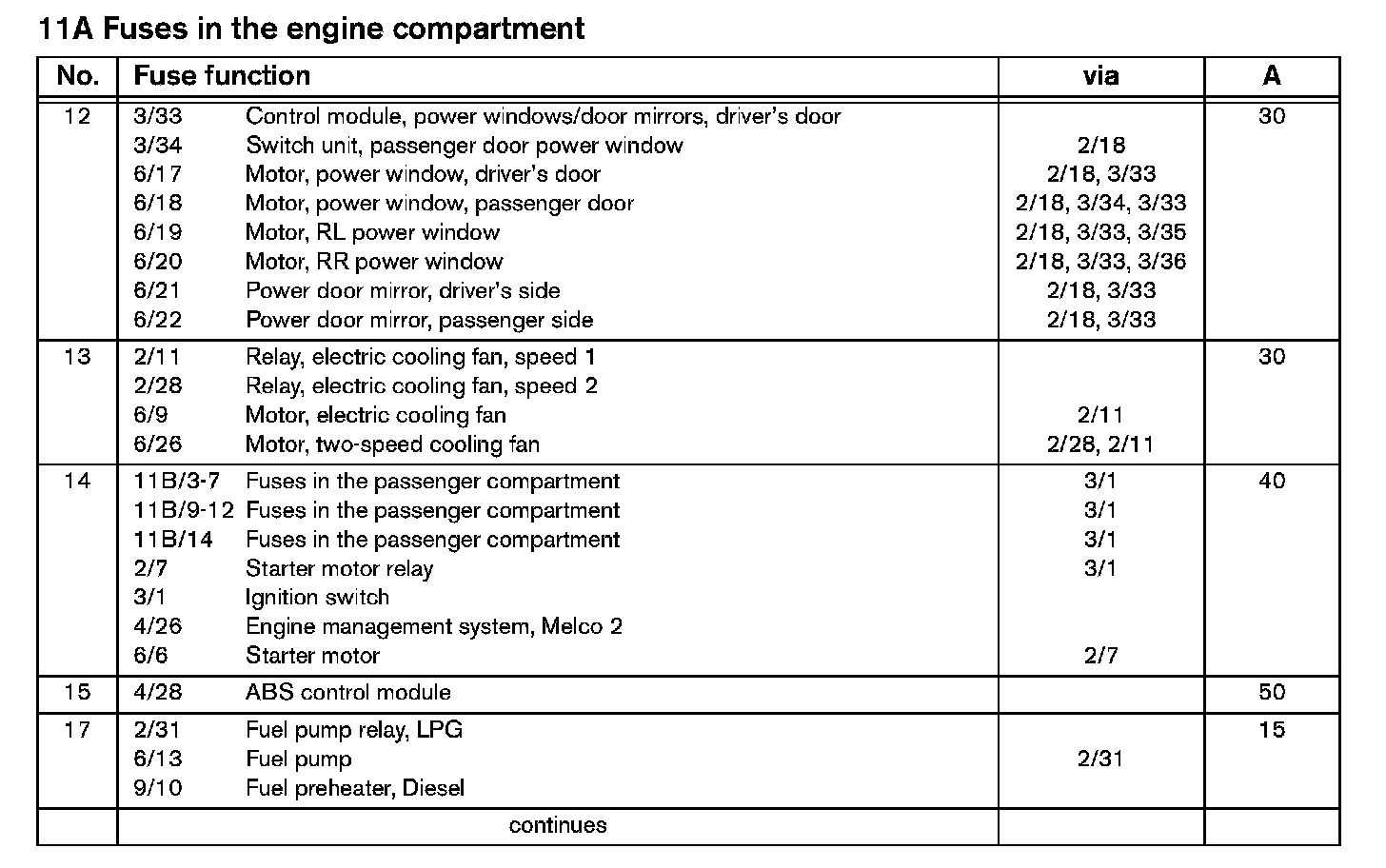

Fuses 11A/12-17:
Fuses 11A/18-23:
Fuses 11A/24-31:
