Home >> Volvo >> 2004 >> S40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/10

44/10

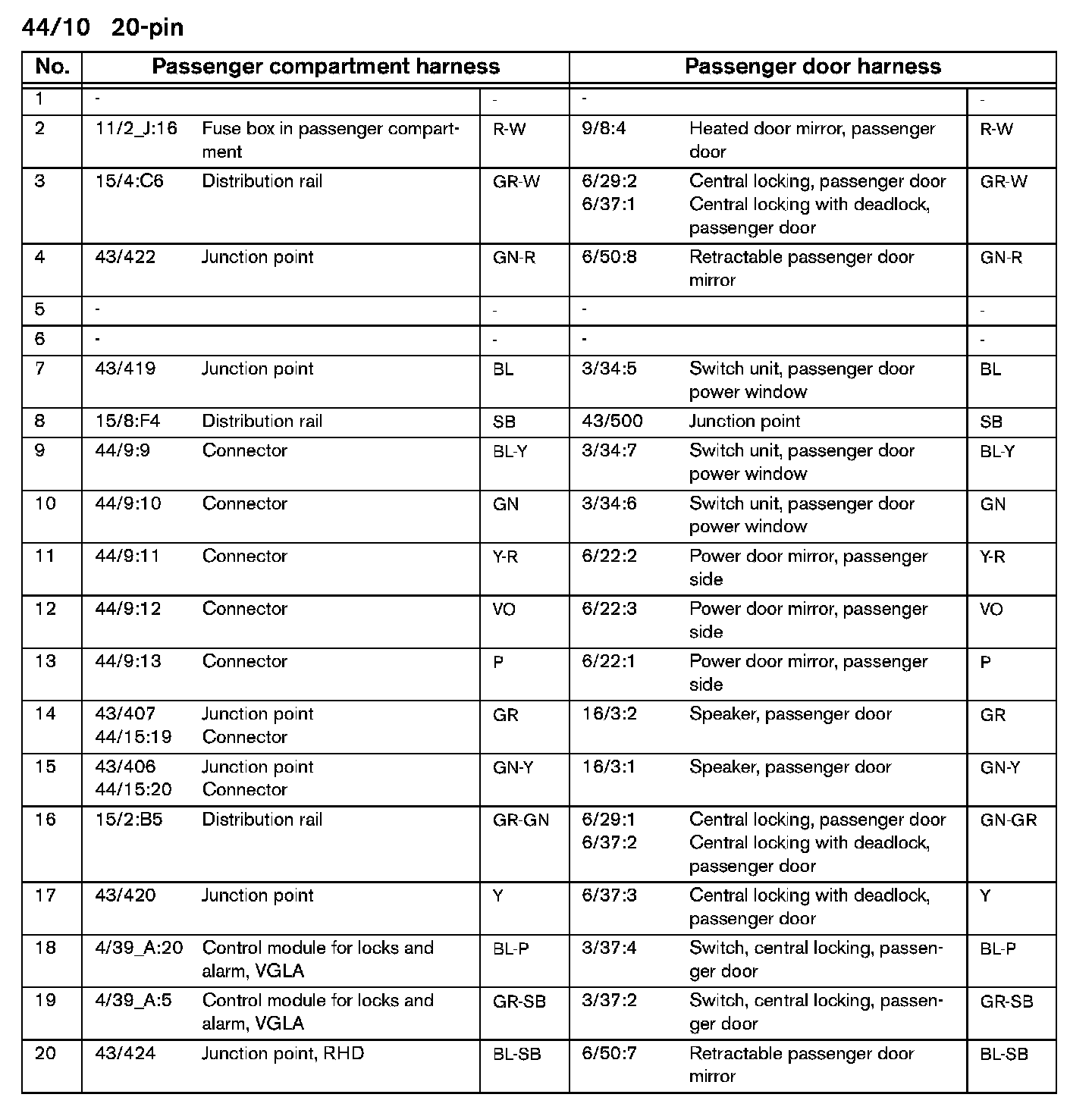

Connectors 44/10:



44/10 Connector:
