Home >> Volvo >> 2004 >> S40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/15

44/15

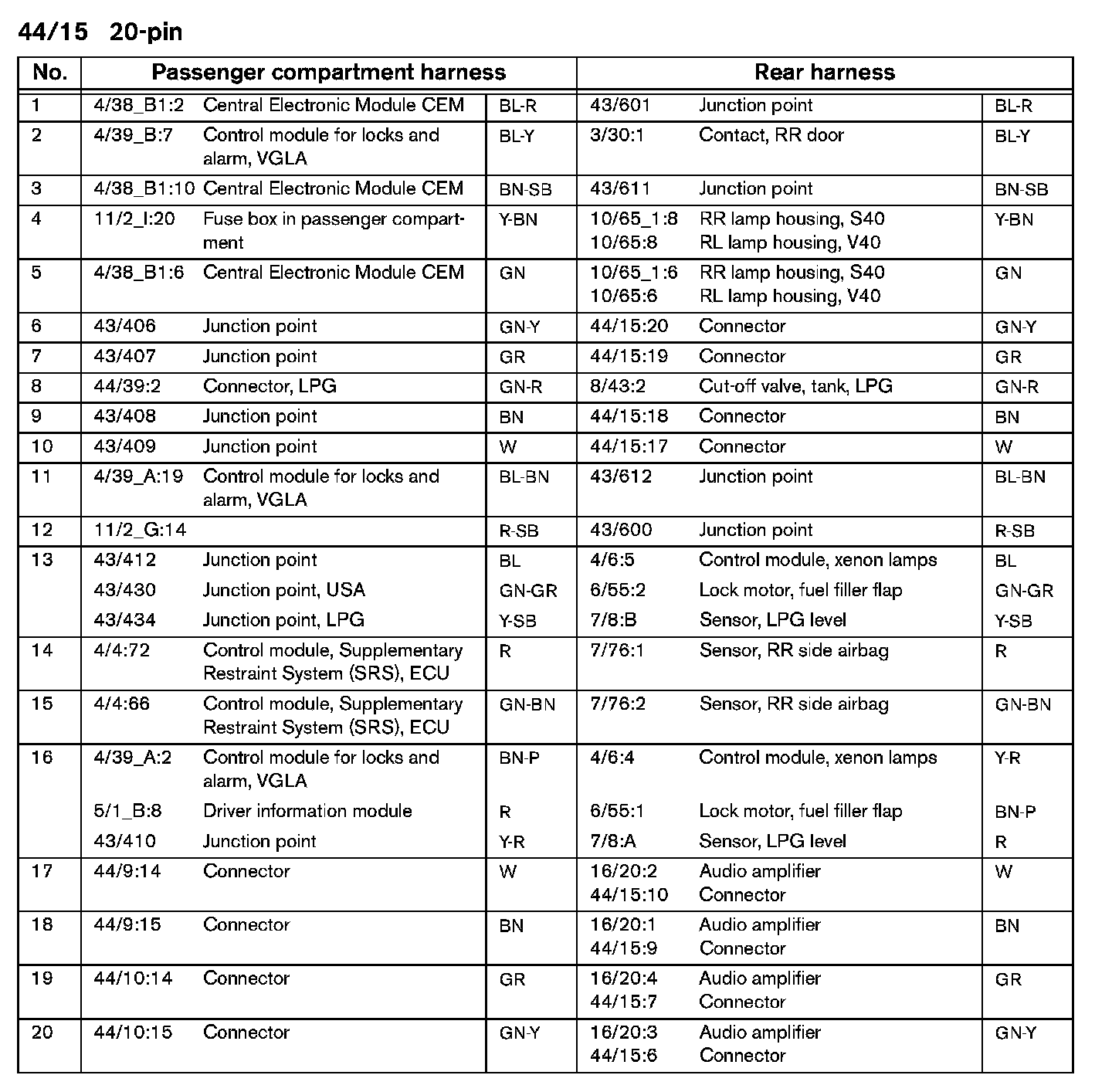

Connectors 44/15:



44/15 Connector:
