Home >> Volvo >> 2004 >> S40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/32

44/32

Connectors 44/32:

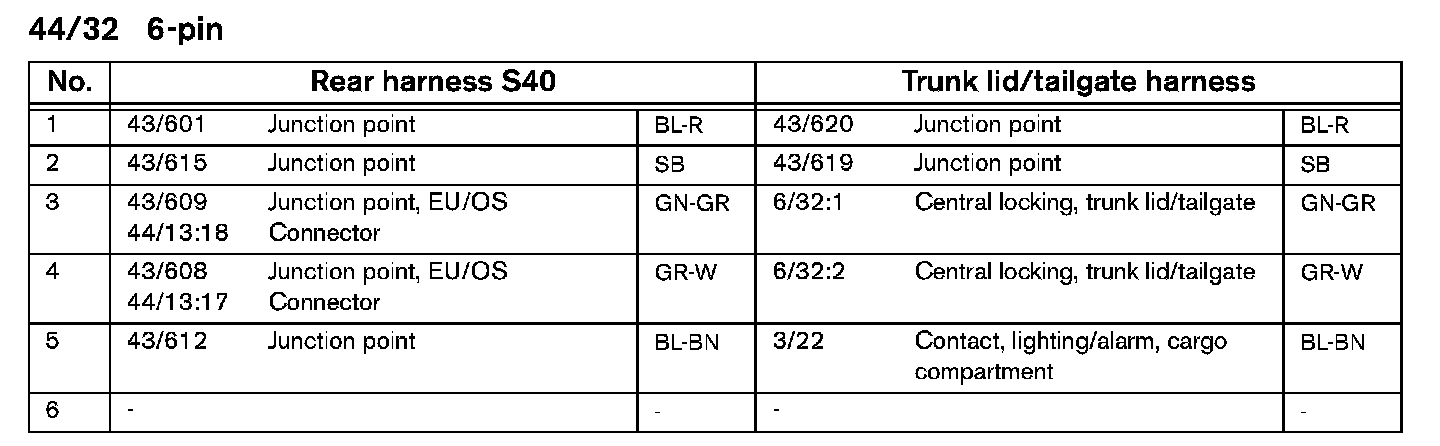

44/32 Connector:
