Operation CHARM: Car repair manuals for everyone.
Home >> Volvo >> 2004 >> S40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/6

44/6

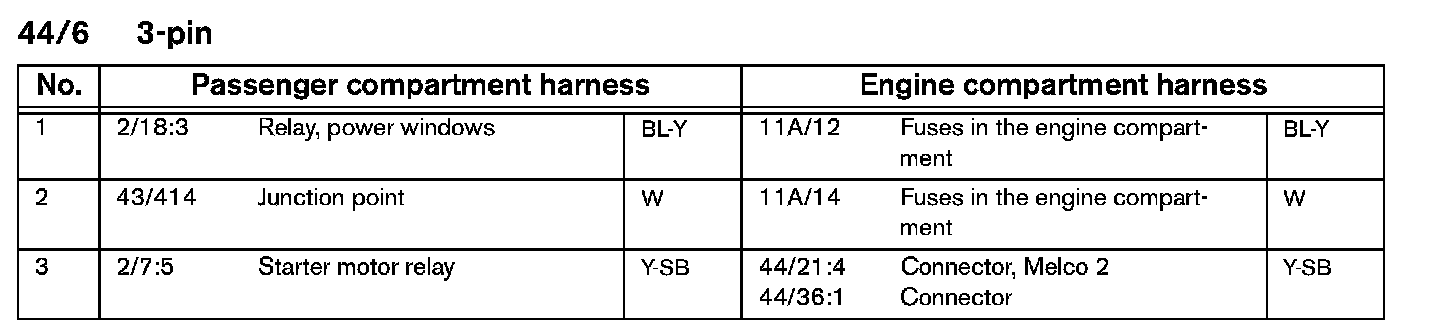

Connectors 44/6:



44/6 Connector:
