Home >> Volvo >> 2004 >> S40 L4-1.9L Turbo VIN 27 B4204T4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> 44/9

44/9

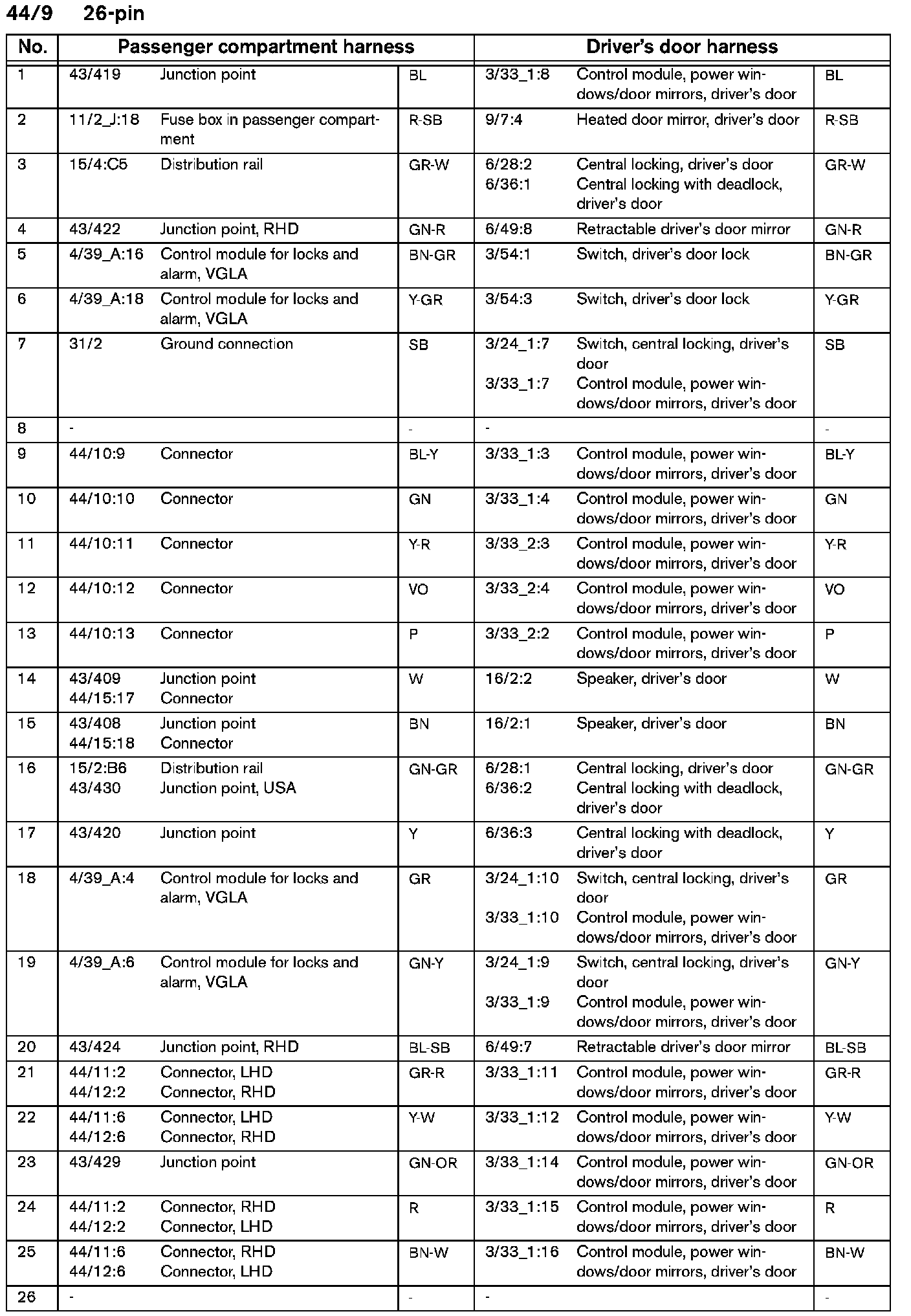

Connectors 44/9:

44/9 Connector:
