Collision Avoidance and Parking Assist Systems

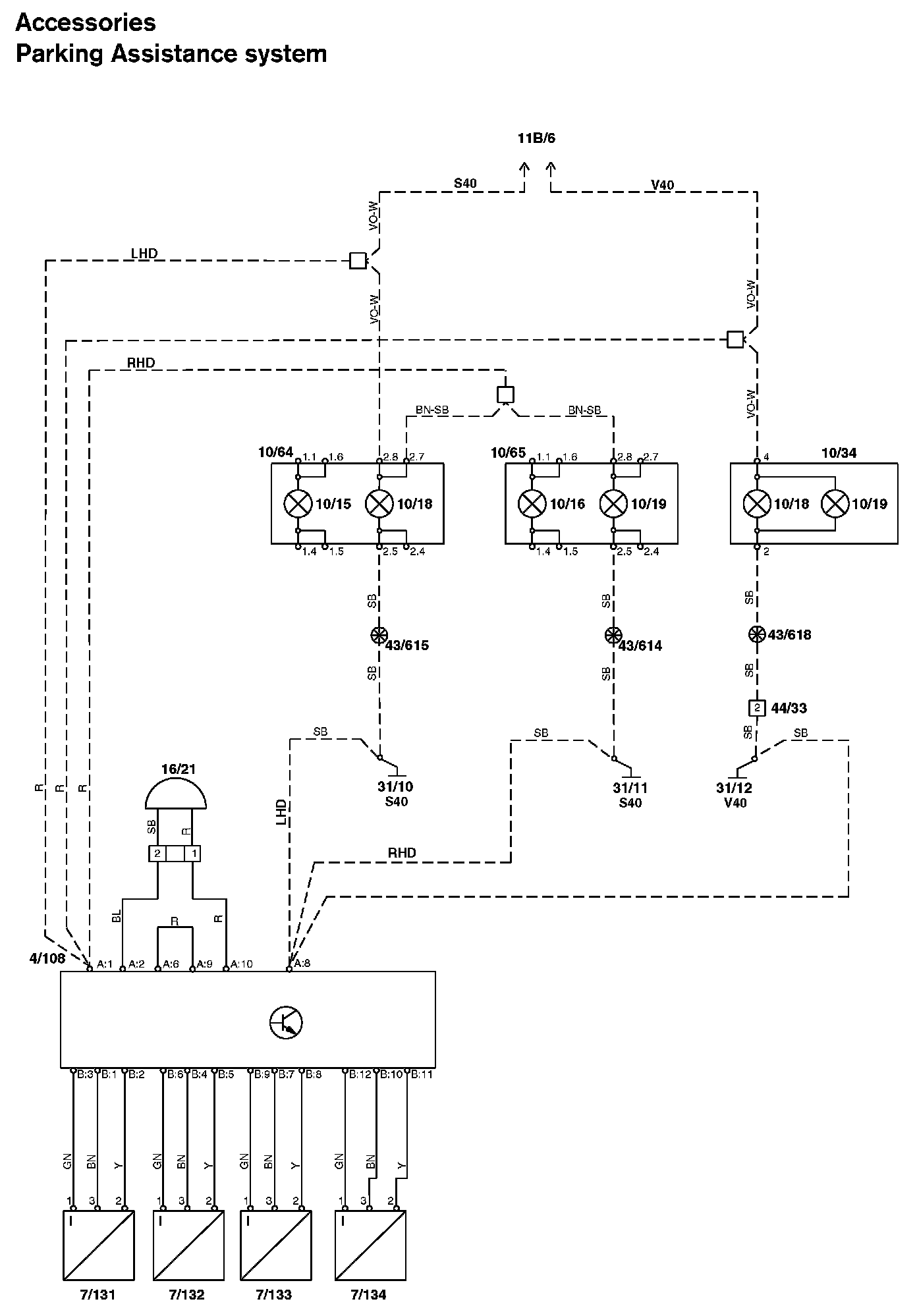

Accessories, Parking Assistance System

Accessories, Parking Assistance System:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
