Interior Lighting, Power Sunroof, Key-inserted Warning

Interior Lighting, Power Sunroof, Key-inserted Warning

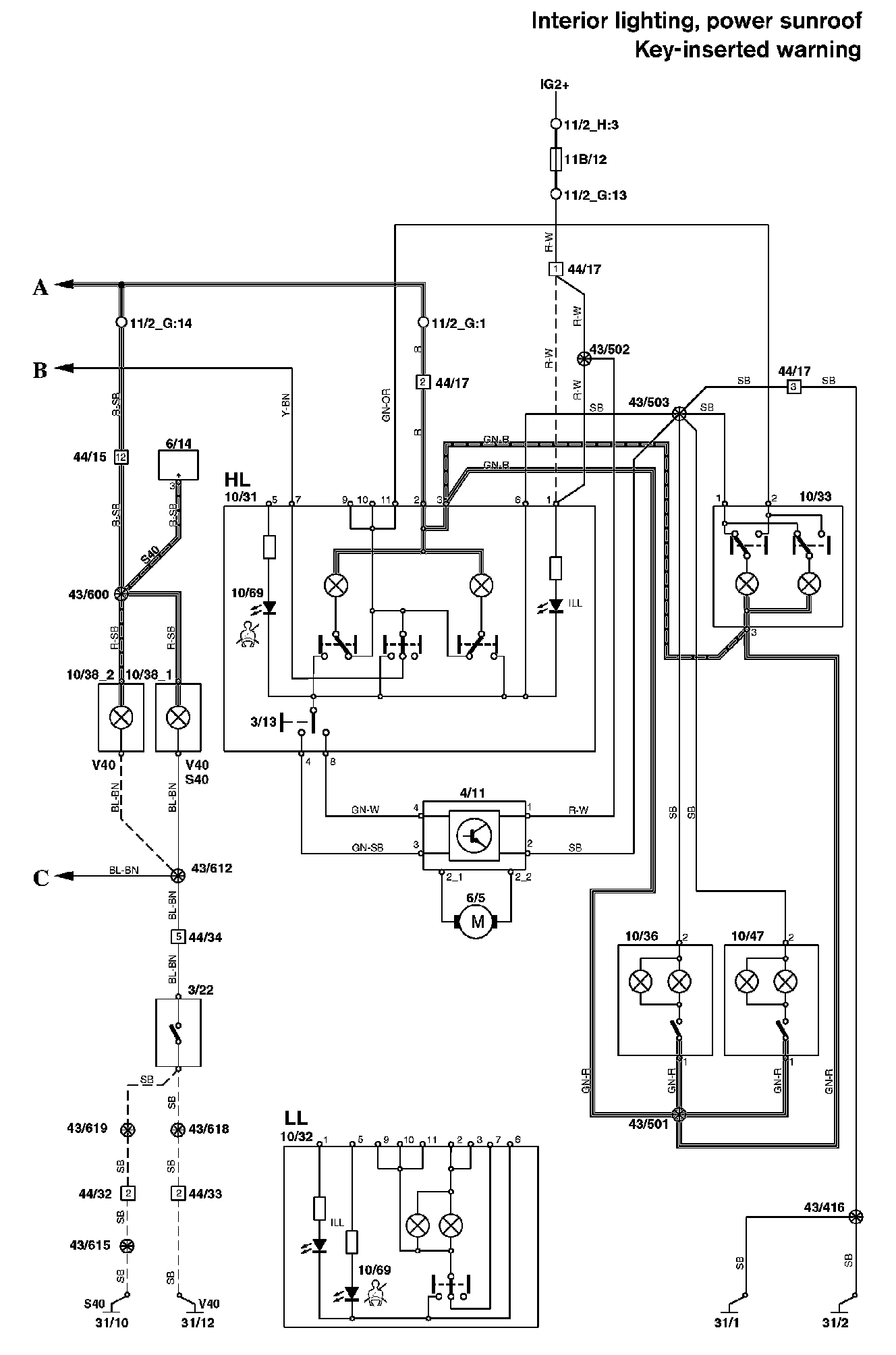

Interior Lighting, Power Sunroof, Key-inserted Warning, Part 1:

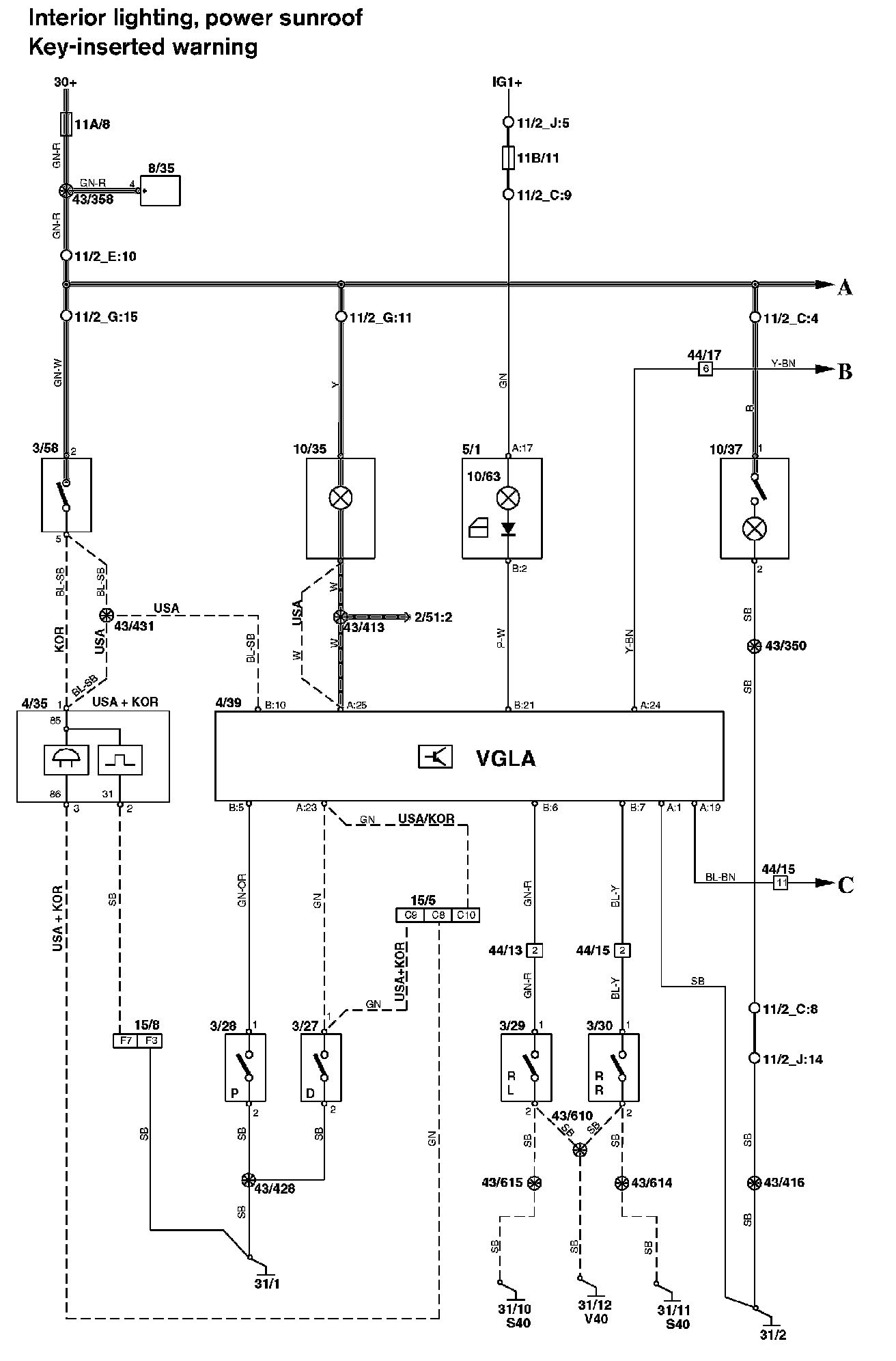

Interior Lighting, Power Sunroof, Key-inserted Warning, Part 2:

Diagram Legend: Diagram Legend

Wire Color Code Identification and Other Abbreviations: Wire Color Code Identification and Other Abbreviations
